Contest EVORA BEAM 5R User Manual

Beam moving head with platinum 5r lamp
Hide thumbs

Advertisement

Quick Links

Download this manual
USER GUIDE
10298 - 1 January 2015 version

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVORA BEAM 5R and is the answer not in the manual?

Questions and answers

Summary of Contents for Contest EVORA BEAM 5R

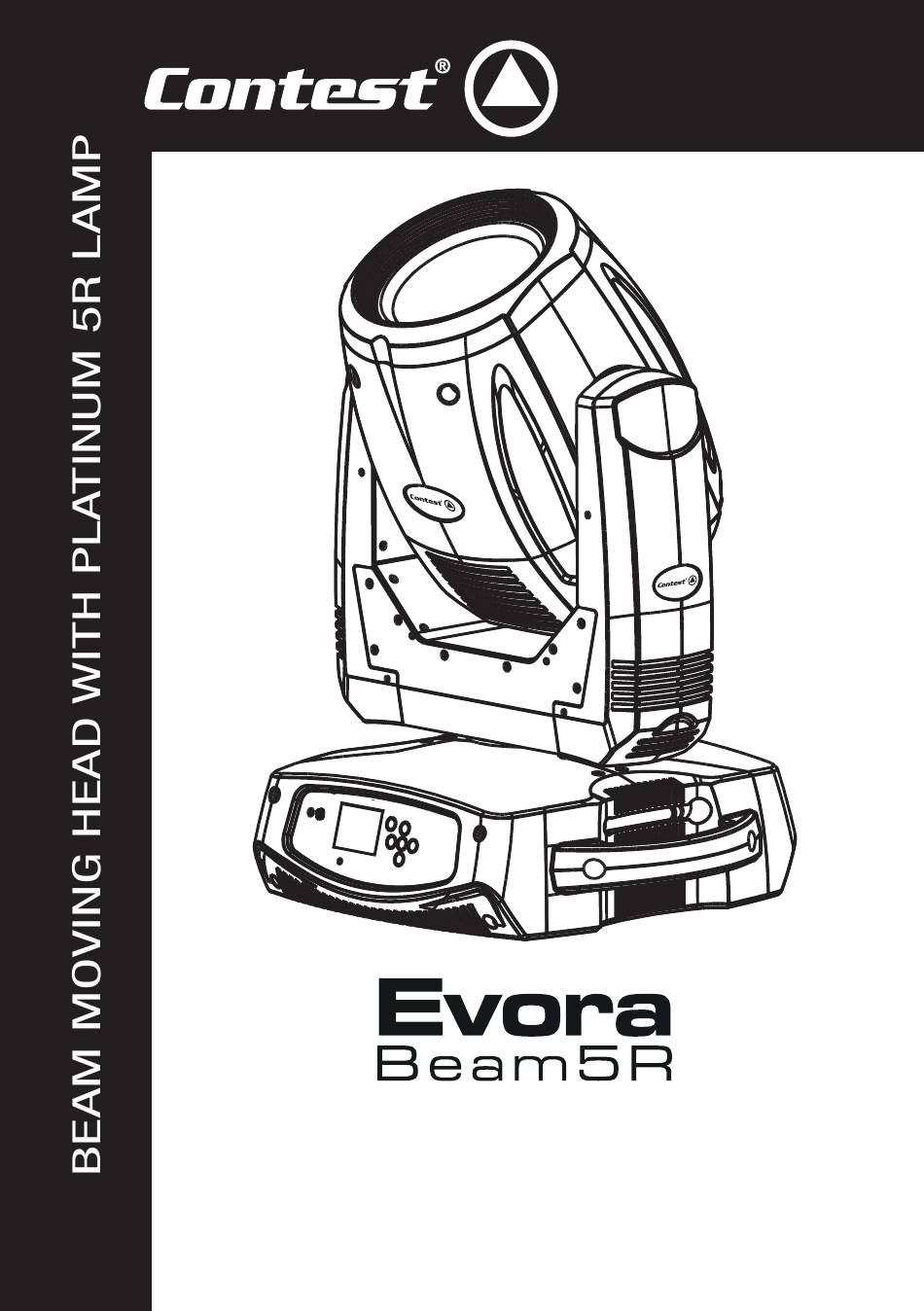

  • Page 1 USER GUIDE 10298 - 1 January 2015 version...
  • Page 2 Evora-Beam5R - Beam moving head with Platinum 5R lamp English Page 2...

  • Page 3: Important Safety Information

    This unit contains no user-serviceable parts. Do not open the housing or attempt any maintenance by yourself. In the Any maintenance procedure must be performed by a CONTEST unlikely even your unit may require service, please contact your authorised technical service. Basic cleaning operations must tho- nearest dealer.

  • Page 4: Caractéristiques

    Evora-Beam5R - Beam moving head with Platinum 5R lamp English 2 - Introduction Thank you for purchasing the Evora-Beam5R moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Caractéristiques Light source •...
  • Page 5 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 4 - Description 1 - Lens 2 - Display Allows you to visualise menus. 3 - DC SWITCH button Switches the menu on when the moving head is not plugged in. 4 - MIC Used for music-sensitive modes.

  • Page 6: Replacing The Lamp

    Evora-Beam5R - Beam moving head with Platinum 5R lamp English 5 - Replacing the lamp Please unplug the device and wait at let it Any damaged or disformed lamp must be cool down for at least 1 hour before trying replaced.
  • Page 7 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 6 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head.
  • Page 8 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 7 - Menus The Evora-Beam5R features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu. Use the navigation keys to change values.
  • Page 9 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 7.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Values Description Current Time Current running time since the unit was last switched on. Overall running time since the very first time the device Total Run Time was switched on.
  • Page 10 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 7.4 PERSONALITY This menu allows you to configure the moving head reactions, adjust the ventilation, customise the display and reset all functions to factory settings. Submenus Lower-level menus Values Description Address via DMX ON/OFF Activates addressing via a DMX controller.
  • Page 11 Evora-Beam5R - Beam moving head with Platinum 5R lamp English Allows you to configure the cooling fan speeds. • Auto : The projector controls its fans speed according to its temperature. Fans Control Auto / High / Low • High : Maximum fan speed. •...
  • Page 12 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 7.6 Effect Adjust This menu allows you to test and manually control each function, and recalibrate PAN and TILT movements. Submenus Values Description AUTO Test Channel Tests each function individually..
  • Page 13 Evora-Beam5R - Beam moving head with Platinum 5R lamp English User mode A editing : Max Channel = XX - Max Channel is the number of channels used. Edit User mode A PAN = CHXX - PAN = CHXX is the channel used by the PAN function..etc When a function is moved to another channel, it will be replaced by the former function using the same channels.
  • Page 14 Evora-Beam5R - Beam moving head with Platinum 5R lamp English This submenu allows you to edit one of the 250 scenes. • Auto Program, Select a scene and press ENTER. PAN, TILT Fine, Scene 1 Sélect each function (PAN, TILT, ...etc) and press ENTER, then Scene 2 assign a value included between 000 and 255 to each function.
  • Page 15 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 8 - DMX channels and their functions The Evora-Beam5R moving head includes 3 preset DMX modes : The Basic mode features 12 channels, the Standard mode features 14 channels and the Expert mode features 18 channels.
  • Page 16 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 128 - 189 Clockwise Rainbow effect 190 - 193 No rotation 194 - 255 Counterclockwise Rainbow effect Precise colour wheel settings 000 - 225 Very precise colour wheel settings Rotating gobos 000 - 009 Open 010 - 019...
  • Page 17 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 200 - 207 Macro 10 208 - 215 Macro 11 216 - 223 Macro 12 224 - 231 Macro 13 232 - 239 Macro 14 240 - 247 Macro 15 248 - 255 Macro 16 Focus...

  • Page 18: Error Messages

    In any case, please write down the error displayed and contact your retailer to launch a maintenance procedure. Do NOT attempt to repair it by yourself as only Contest-approved technicians are allowed to perform maintenance operations. 10 - Photometric datas...
  • Page 19 Evora-Beam5R - Beam moving head with Platinum 5R lamp English 11 - Dimensions Page 19...
  • Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
