Summary of Contents for Iiyama ProLite TF3237MSC

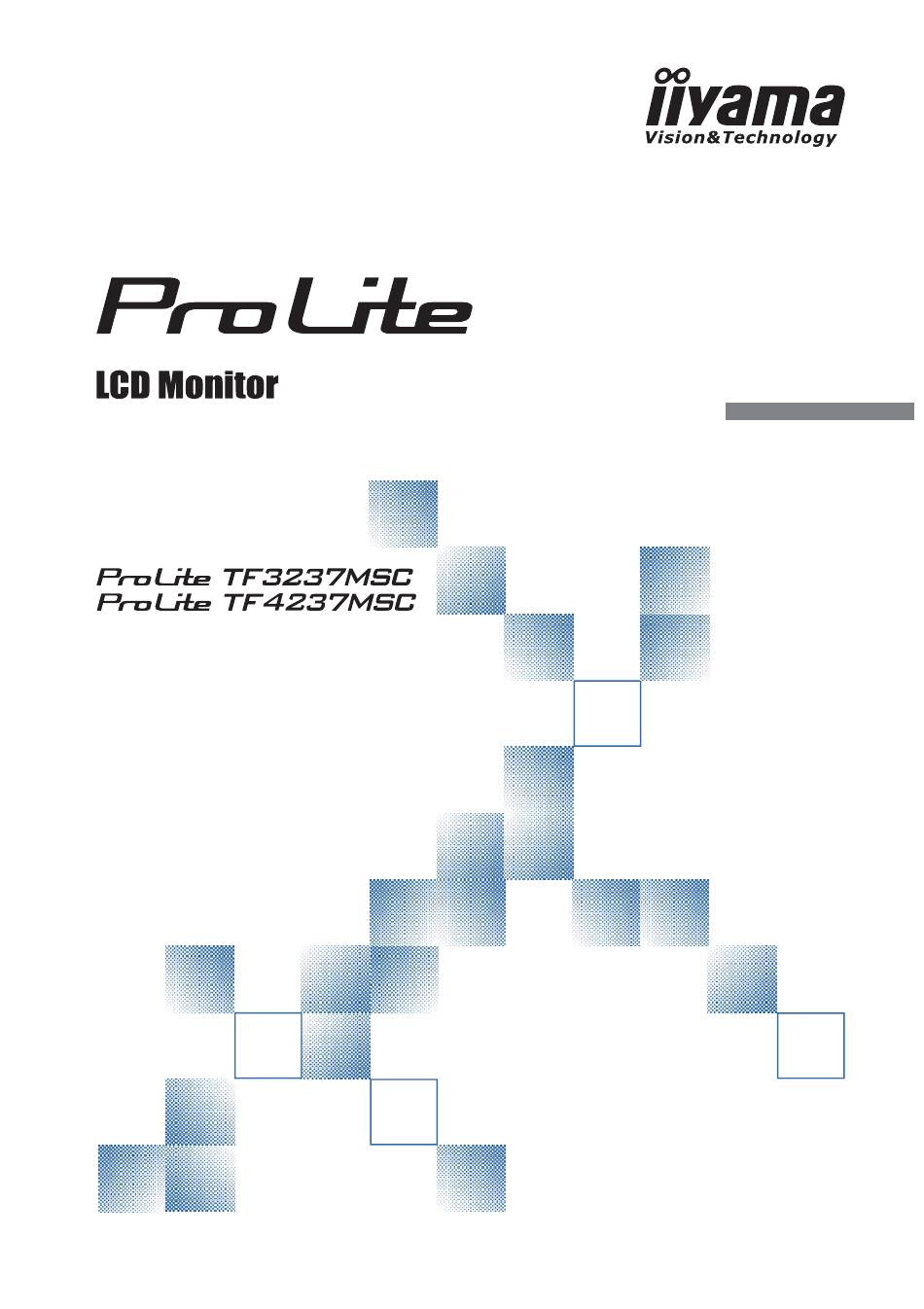

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 2 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
-
Page 3: Table Of Contents
ADJUSTMENT MENU CONTENTS ..........19 SCREEN ADJUSTMENTS ............23 POWER MANAGEMENT FEATURE ..........26 TROUBLE SHOOTING ..............27 RECYCLING INFORMATION .............28 APPENDIX ..................29 SPECIFICATIONS : ProLite TF3237MSC ........29 SPECIFICATIONS : ProLite TF4237MSC ........30 DIMENSIONS : ProLite TF3237MSC ..........31 DIMENSIONS : ProLite TF4237MSC ..........31 COMPLIANT TIMING ..............32... -
Page 4: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. When you fi rst turn on the LCD monitor, the picture may not fi t in the display area NOTE because of the type of computer that is used. -
Page 7: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Unpacking : Prolite Tf4237Msc
UNPACKING : ProLite TF4237MSC Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet. Set the LCD Monitor box in an upright position and open from the top of the box before removing the top cushions. Remove the carton holders. -
Page 10: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Back> <Front> POWER DOWN AUTO/EXIT SOURCE/OK POWER DOWN AUTO/EXIT MENU COM IN HDMI DVI IN VGA AUDIO AC IN SOURCE/OK MENU POWER Power Button Up/Volume + Button DOWN Down/Volume - Button AUTO / EXIT Auto/Exit Button SOURCE / OK Input Select/OK Button MENU Menu Button... -
Page 11: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. - Page 12 [ROTATING THE DISPLAY] It is designed to be compatible in both landscape and portrait modes, however, it is optimized for landscape mode. Not Available Available Landscape Portrait BEFORE YOU OPERATE THE MONITOR 9...
-
Page 13: Controls And Connectors : Remote Control (For Maintenance)
CONTROLS AND CONNECTORS : REMOTE CONTROL (For maintenance) POWER MUTE MEMU AUTO PLAY EXIT STOP SELECT NOTE To use the remote control we advise you to position it at the back of the monitor (left side) where the remote sensor is located. It might not work if you use it standing in front of the monitor. POWER Turns the monitor ON and OFF. -
Page 14: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the button battery. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Burst batteries or the electrolyte from these batteries may cause stains, fi re or injury. Push Lock to right and remove the battery case in the direction of the arrow. -
Page 15: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is on and the Power Indicator turns Green when you press the Power Button on the monitor or the Remote Control. The monitor is off and the Power Indicator turns Orange when you press the Power Button on the monitor or the Remote Control. - Page 16 Move the cursor vertically Select adjustment by pressing the UP / DOWN Button on the monitor or the Button on the Remote Control while the menu page is displayed on the screen. [Monitor] [Remote Control] POWER POWER MUTE MEMU AUTO DOWN PLAY...
- Page 17 Adjust the volume of sound Press the UP / DOWN Button on the Monitor or the VOL Button on the Remote Control to adjust the volume of sound when the menu page is not displayed on the screen. [Monitor] [Remote Control] POWER MUTE...
-
Page 18: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 19: Computer Setting
Change to the desired signal timing listed on page 32: COMPLIANT TIMING. Windows XP/Vista/7/8 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 20: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 23 for SCREEN ADJUSTMENTS. - Page 21 * Available for Back Controller only. LOCK MODE: Pressing and holding the MENU button and the Power Switch for about 3 seconds when the Menu is not displayed. * The OSD menu is not displayed when the OSD is locked. Pressing and holding the MENU button and the Power Switch for about 3 seconds when the Menu is not displayed.
-
Page 22: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Brightness/Contrast Adjustment Item Problem / Option Button to Press Too dark Brightness * Too bright Too dull Contrast Too intense * Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. - Page 23 Display Settings Adjustment Item Problem / Option Button to Press Aspect Ratio is turned off. 16:10 Displays all picture in 16:10 aspect ratio. Aspect Ratio Displays all picture in 5:4 aspect ratio. Displays all picture in 4:3 aspect ratio. You can set the Gamma. Gamma Native / 2.2 / 1.8 You can change the picture quality from 0 to 100...
- Page 24 2 pixels) to prevent image retention on the screen. Anti Image Retention Anti Image Retention is turned off. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on.
- Page 25 Input Source Adjustment Item Problem / Option Button to Press AUTO Select the signal input automatically. Select the analog input. Input Source Select the digital(DVI) input. HDMI Select the digital(HDMI) input. When only one of the three signal inputs is connected to the signal source, the one NOTE connected is automatically selected.
-
Page 26: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 27 Adjust the Auto Adjustment. Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 28 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 29: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 30: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 31: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 28 Recycling information... -
Page 32: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF3237MSC Touch Technology Projected Capacitive 12points Screen Light transmission Communication system USB serial transfer Size Category 32" Panel technology Panel Size Diagonal: 31.5" (80cm) Pixel pitch 0.364mm H ×... -
Page 33: Specifications : Prolite Tf4237Msc
SPECIFICATIONS : ProLite TF4237MSC Touch Technology Projected Capacitive 12points Screen Light transmission Communication system USB serial transfer Size Category 42" Panel technology Panel Size Diagonal: 42" (106.5cm) Pixel pitch 0.4833mm H × 0.4833mm V Brightness 400cd/m (Typical: without Touch panel) Contrast ratio 1000 : 1 (Typical: without Touch panel) Viewable angle... -
Page 34: Dimensions : Prolite Tf3237Msc
DIMENSIONS : ProLite TF3237MSC 620.0mm/24.4” 781.5mm/30.8” 4xM6 SCREW HOLE 20.0mm/0.8” 700.5mm/27.6” (VESA MOUNT) 400.0mm/15.7” POWER DOWN AUTO/EXIT SOURCE/OK MENU AC IN USB COM IN HDMI DVI IN AUDIO 8xM6 SCREW HOLE (Outer) 190.75mm/7.55” 400.0mm/15.7” 190.75mm/7.55” DIMENSIONS : ProLite TF4237MSC 591.5mm/23.3”... -
Page 35: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 720 × 400 31.467kHz 70.080Hz 28.320MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz 1280 × 720 44.720kHz 60.000Hz 74.500MHz VESA 1280 ×...
