Summary of Contents for Goddess WFE1015M8

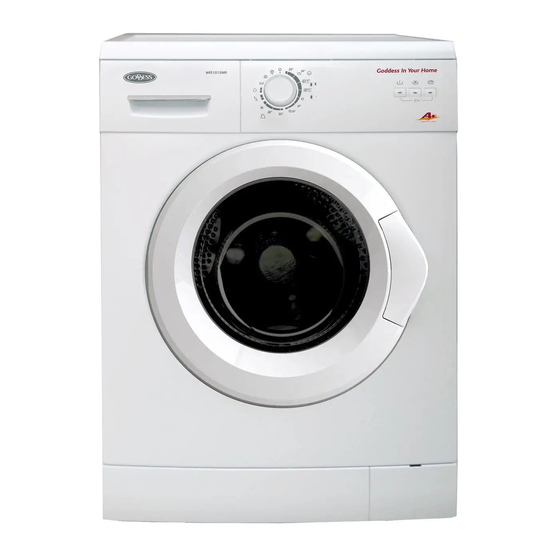

- Page 1 ELECTRONIC WASHING MACHINE GODDESS WFE1015M8 INSTRUCTION MANUAL INSTRUCTION MANUAL BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER’S MANUAL...
-
Page 2: Table Of Contents
THE CONTENTS SECTION 1: BEFORE USING ................3 Safety warnings ....................3 Recommendations ....................3 SECTION 2: INSTALLATION ................4 Removal of transportation screws ................ 4 Adjustment of feet ....................4 Electrical connection ..................... 5 Water supply connection ..................5 Water drain connection .................. -
Page 3: Section 1: Before Using
SECTION 1: BEFORE USING SAFETY WARNINGS • Do not use a multiple socket or extension cord. • Do not insert a plug with damaged or broken cord into the socket. • If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard. -
Page 4: Section 2: Installation
SECTION 2: INSTALLATION You must pay attention to the following issues before using your washing machine. REMOVAL OF TRANSPORTATION SCREWS • Transportation screws, which are located at the back side of the machine, must be removed before running the machine. •... -
Page 5: Electrical Connection
ELECTRICAL CONNECTION • Your washing machine works with 0-40V and 50Hz. • A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the electricity line attached to this should also be 10 ampere. -
Page 6: Water Drain Connection
The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand. • Never attempt to extend the water drain hose by adding extra parts. WFE1015M8 SECTION 3: TECHNICAL SPECIFICATIONS Brand Goddess... -
Page 7: Section 4: Control Panel
SECTION 4: CONTROL PANEL WFE1015M8 (3 tlačítka) Detergent drawer Start/pause light Program knob Program ready light Program end light Function buttons Function indicator lights Start/pause button Our product has electronic card and soft-touch buttons. To activate the functions touch the buttons slightly. - Page 8 START/PAUSE BUTTON START/PAUSE BUTTON Used to start a selected program or pause during running. Used to start a selected program or pause during running. WARNING! WARNING! It is required for the program knob to be brought to O (off) position before selecting It is required for the program knob to be brought to O (off) position before selecting START/PAUSE BUTTON the program or changing a continuing program.
-
Page 9: Temperature Knob
PROGRAM KNOB With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. -
Page 10: Before Washing
BEFORE WASHING Discrimination of your laundry • Discriminate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc.), washing temperatures and level of dirtiness. • Never wash your white and coloured clothes together. • Since your new coloured clothes may shed dye on the first wash, wash them separately. •... - Page 11 Filling detergent in the machine The quantity of the detergent that you will fill in your machine depends on the following criteria: • Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no. of the detergent drawer.
-
Page 12: Running The Machine
RUNNING THE MACHINE Program selection and features Select the program and additional functions appropriate for your clothes from Table-1. Start/Pause By pressing this button, you can start the program you have selected or pause a running program. Starting the program Adjust the program knob to a program you desire. -
Page 13: Section 6: Maintenance And Cleaning
Time TYPE OF LAUNDRY TYPE OF LAUNDRY TYPE OF LAUNDRY TYPE OF LAUNDRY EXPLANATIONS EXPLANATIONS EXPLANATIONS EXPLANATIONS COMPART. COMPART. COMPART. COMPART. WFE1015M8 WFE1015M8 (h:min) WFE1015M8 WFE1015M8 WFE1015M8 WFE1015M8 Underwears, sheet, table Underwears, sheet, table 90˚ 90˚ COTTON 90˚ COTTON 90˚... -
Page 14: Pump Filter
• Remove the water inlet hose. • Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush. • Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal. -
Page 15: Detergent Drawer
DETERGENT DRAWER Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergentdrawer: • Pull the detergent drawer to the end.(DIAGRAM-1) •... -
Page 16: The Drum
THE DRUM Do not leave metal parts like needles, staples or coins inside your machine. These pieces cause formation of rust stains in the drum. To eliminate these stains of rust, use a cleaning substance without chlorium and follow the warnings of the cleaning substance producer. For cleaning of the rust stains, never use dish-washing wires or similar rough objects. - Page 17 Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water)for 30 minutes. Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent.
-
Page 18: Section 8: Avoiding Minor Faults
SECTION 8: AVOIDING MINOR FAULTS All repairing which must be done on the machine should be done by authorized service. When a repairing is required for your machine or you are unable to eliminate the failure with the help of the information given below: •... -
Page 19: Section 9: Automatic Failure Detection System
FAULT POSSIBLE CAUSE REMOVING METHODS The end of the water drain hose is The water is drained from the machine as Place the water drain hose in an appropriate in a position too low according to soon as it is filled. height. -
Page 20: Section 10: International Washing Signs
SECTION 10: INTERNATIONAL WASHING SIGNS ENG - 0... - Page 21 We reserve the right to change technical specifications. For any further information, please write to: info@goddess.cz WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don’t use it or before a revisi- on.
- Page 22 NOTES:...
- Page 23 NOTES:...
- Page 24 52151787...
