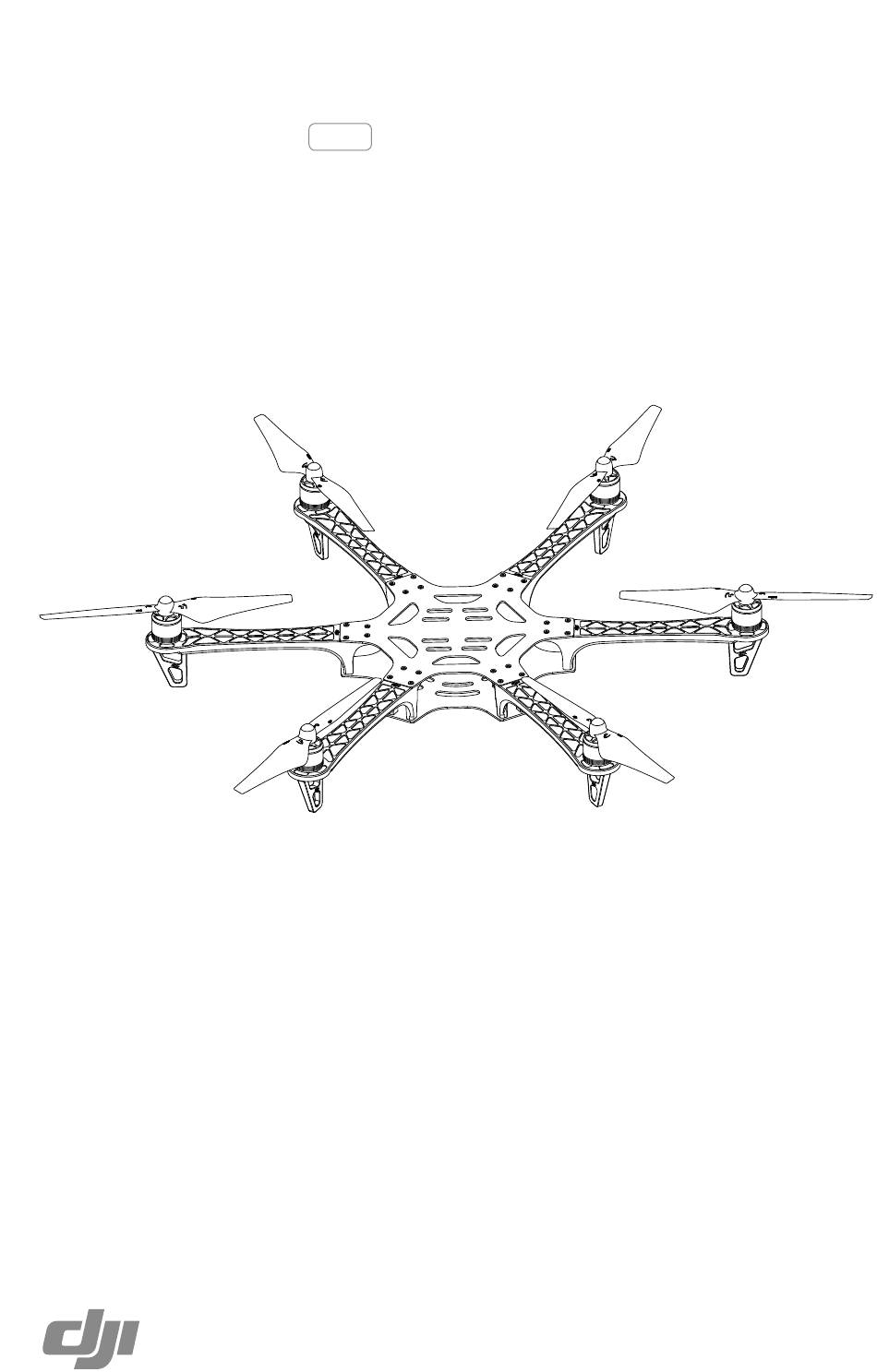

- Page 1 FlameWheel 550 User Manual V2.0 2015.05 Revision...
-
Page 2: Disclaimer
F550 Profile FlameWheel 550 (F550) is a multi-rotor designed for all pilots for fun or AP. With DJI WKM or NAZA autopilot system, it can achieve hovering, cruising, even rolling and other flight elements. -
Page 3: Table Of Contents
Contents Disclaimer F550 Profile Product Usage Cautions Contents In the Box Tools Needed Preparing for Mounting Motor Mounting Description Propeller Mounting Description ESC and Motor Wiring Description Assembly ESC Sound Description Specifications © 2015 DJI. All Rights Reserved. -
Page 4: In The Box
Motors CW ×3 Motors CCW ×3 Propeller Pairs ×4 ESC ×6 Screws 550-M3×8 ×24 Screws 550-M2.5×6 ×36 Propeller Removal Clamp ×1 Magic Strap 550MSX ×1 Battery Band 550BBX ×11 Power Line Pair 550PLP ×1 © 2015 DJI. All Rights Reserved. -
Page 5: Tools Needed
The screw size is M3. Mount the motors using appropriate screws. Note the thread depth and the size of the screws. Using screws that are too long or too large may damage the motor. © 2015 DJI. All Rights Reserved. -
Page 6: Propeller Mounting Description
FlameWheel 550 User Manual Propeller Mounting Description Attach the propeller with a silver nut onto the Attach the propeller with a black nut onto the counter clockwise motor. clockwise motor (which has an indent on the screw). Silver nut (9450) -
Page 7: Assembly
FlameWheel 550 User Manual Please solder ESCs to power pads on bottom board as the figure shows. Use any insulating method at all soldering spots. Make sure there is no short or open circuit. Make sure the side of power pads is upward. -
Page 8: Esc Sound Description
FlameWheel 550 User Manual Note that arms ①② point to the nose of aircraft and arms ④⑤ point to the tail of aircraft. It is recommended to choose the same color arms for the same direction. See from top, motors on arms ①③⑤ rotate counter-clock wise and motors on arms ②④⑥... - Page 9 The content is subject to change. Download the latest version from http://www.dji.com/product/flame-wheel-arf If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
