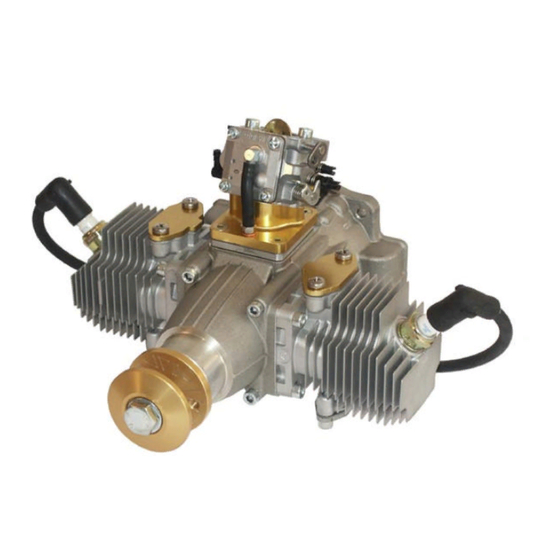

Summary of Contents for AvioMac 70cc Twin

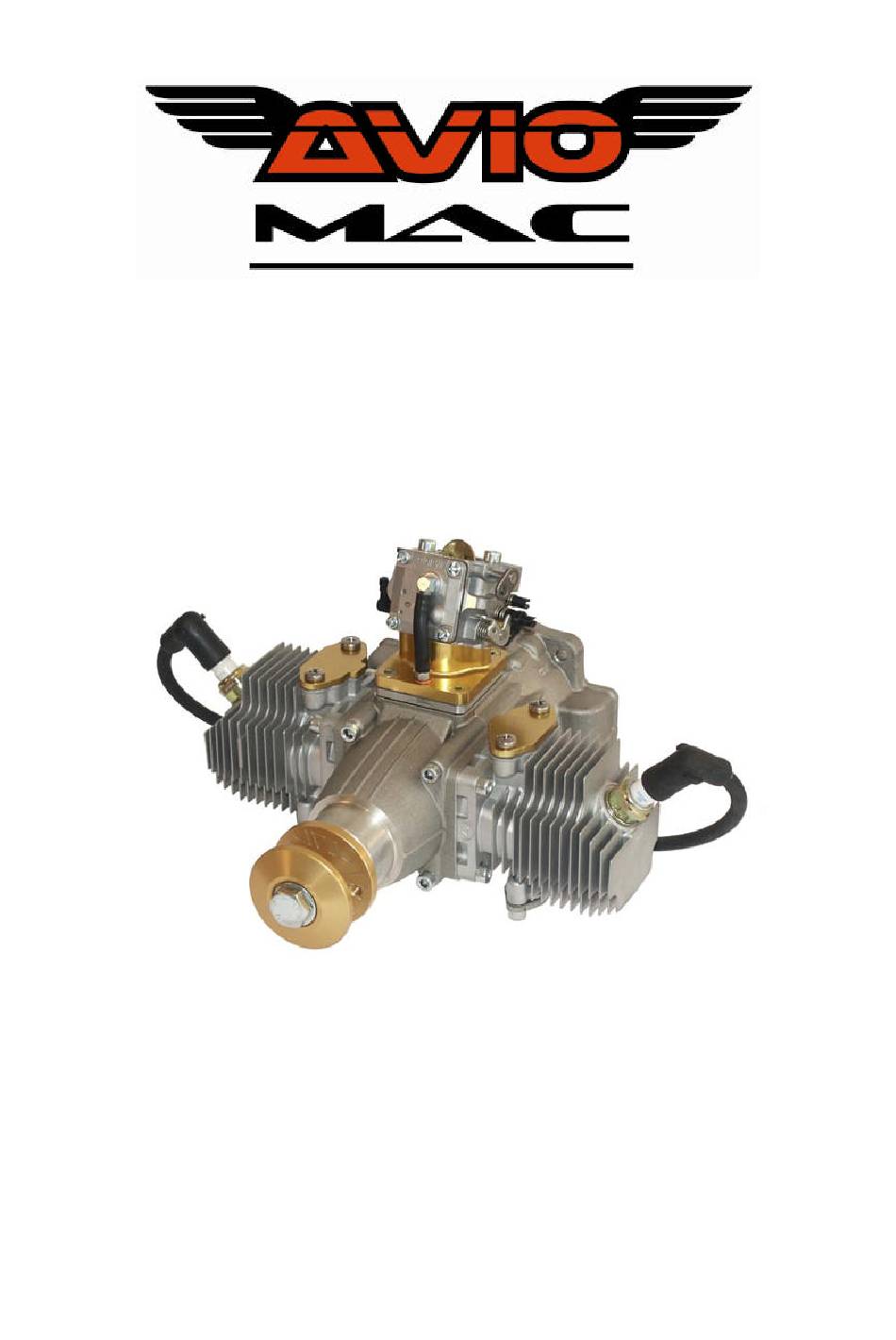

- Page 1 INSTRUCTION MANUAL AND ENGINE WARRANTY. 70cc TWIN (IDM) CODE: AV070B2B...
- Page 3 IMPORTANT! PACKING LIST: Thank you for purchasing one Aviomac 70cc, one of the best gasoline engine 1 Aviomac engine 70cc Twin available. With our 3-year warranty on 2 Spark plugs manufacturing defects costumer 2 Spark plugs covers support, we are sure that you will be glad 1 AT coil with this engine.
- Page 4 It has to face the external part of the plane in order to communicate outside through a hole of appropriate size. This will give you the possibility to connect the Easy Starter easily when you start the engine. WWW.AVIOMAC.COM AVIOMAC 70 TWIN (IDM)
- Page 5 Never remove the spring from the carburettor. PROPELLER: with Aviomac 70cc engine we recommend propellers as following: 20x12, 22x10, 22x12, 24x10. Propeller hub is designed to allow the installation of 2 security screws.
- Page 6 NOTE: Always turn the Easy Starter off Recheck and eventually adjust the low- before you disconnect it from your speed needle adjustment (L). aircraft, otherwise electric shock and damages on the ignition can occur. WWW.AVIOMAC.COM AVIOMAC 70 TWIN (IDM)
- Page 7 PROCEDURE FOR MAGNETIC IGNITION TUNING All Aviomac engines are sent with ignition yet tuned up for work well, but after the disassembly of the ignition and for all adjustment needing, you have to follow this procedure: 1. Insert the rotor on the crankshaft; we remind you to use its positioning key and block it with its screw (included in the shipment).
- Page 8 For warranty or non-warranty services, you can send your engine with good packing and with transport paid at the following address: MGR Group Srl Via dell’Artigianato, 12 37060 Sona (VR) Italy Phone number: ++39-045-6095552 WWW.AVIOMAC.COM AVIOMAC 70 TWIN (IDM)
