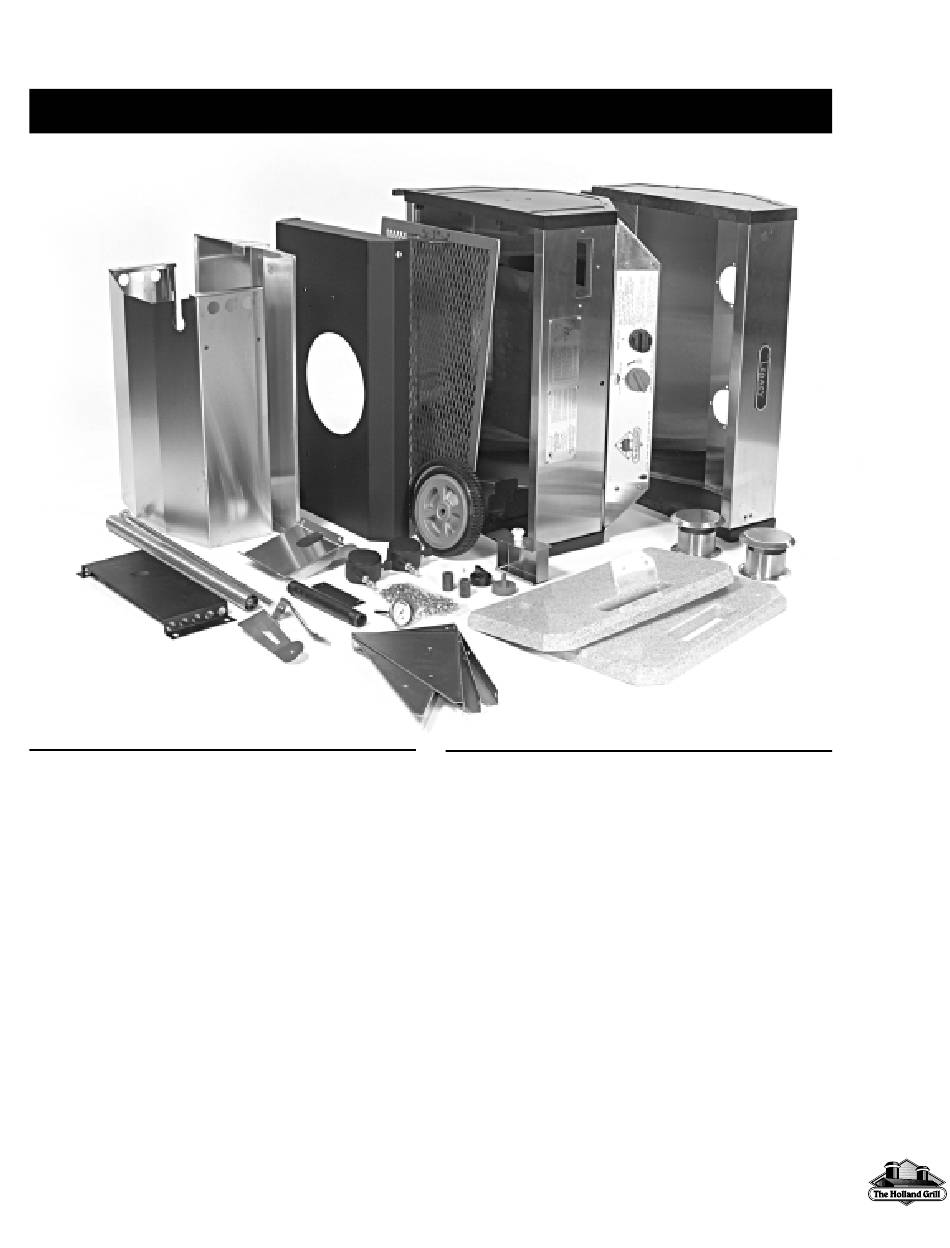

HOLLAND LEGACY LS REPLACEMENT PARTS
Model BH421 SS-4
The Holland Legacy LS parts are made from
aluminum and stainless steel.

REPLACEMENTS PARTS LIST

Stock No. Description
SS4-100 Grill bottom, Legacy LS, SS w/alum ends
SS2-201 Stacks, SS, short version (2 req'd)
SS3-251L Handle bracket, left, SS
SS3-251R Handle bracket, right, SS
SS3-250 Handle tube, SS, with inserts
SG4-701 Shelf, gray, NuStone
SG2-1000 Drip bucket
SS2-702SS Shelf bracket, RF/LR, SS (2 req'd)
SS2-703SS Shelf bracket, LF/RR, SS (2 req'd)
SS4-200 Lid assembly, Legacy LS, SS w/alum ends
AG2-300 Cooking grid, SS mesh, wide band
SS4-500 Support pillar, SS
AG3-550 Metal base assembly, black
SS4-559 Side body braces, Tradition LS (2 req'd)
AG2-107 Flame deflector plate, SS, BH421 grills
SG2-401 Axle, Heritage, Tradition, Legacy, Tribute
AG2-400 Wheel, DeLuxe, BH421 Series (2)
AG3-450 Axle spacer (2 required)
AG2-402 Push nut, black (2)
AG3-850 Tank retainer, Tradition/Legacy LS
SS3-155 Control panel, SS
SS3-170 Control panel bracket, SS
SG4-151 Insulator, control panel bracket (4)
AG2-910 Drain pipe, 3/4"
SG4-909 Brass drain valve, Holland
AG2-600 Drip pan, aluminum, 3/4" drain
SG2-532 Lighting clip and chain
If you have a question about the warranty or want to order parts
or accessories, please contact your local Holland Grill dealer.
Stock No. (QT.) Description
Fasteners: Replacements can be found at most hardware stores.
G (32) 1/4 External Tooth lock Washer
H (6) 1/4 - 20 Hex Nut, SS
F (24) 1/4 - 20 x 3/4" Hex Cap Screw, SS
O (2) 1/4 - 20 x 3/4" Round Head Phillips M/S, SS
B (20) 10 - 24 Hex Nut, SS
M (4) 10 - 24 x 1/2" Carriage Bolt, SS
D (8) 10 - 24 x 1" Carriage Bolt, SS
A (8) 10 - 24 x 3/8" Pan Hd Phillips Machine Screw, SS
N (1) 8 - 32 x 3/8" Pan Hd Phillips Machine Screw, SS
C (21) #10 External Tooth lock Washer
L (2) #10 x 3/8" Truss Hd Phillips, Type "A", SS
I (3) #5 - 40 x 3/8" Pan Hd Phillips, Machine Screw, SS
J (3) #5 - 40 Hex Nut, SS
K (3) #5 Split Lock Washer, SS
(1) 5/16" Hex Nut, SS (included with Thermometer)
SG2-807 Wing Bolt 1/4-20x1/2
The following parts are factory installed in 100 Grill Bottom,
but may be ordered individually:
SG4-102 Burner Valve, Angled
SG2-103 Air Shutter (behind Burner Valve)
SG2-104 Insect Screen (Behind Air Shutter)
SG2-105 Burner Assembly (less 102, 103 and 104)
SG2-106 Air Baffle
AG2-107 Flame Deflector Plate, SS, BH421 grills
SG2-109 Regulator and Hose Assembly
SG2-110 Propane Orifice, drill size #55
SG2-116 Natural Gas Orifice, drill size #48
®
