Summary of Contents for Mac allister MHTP24EB

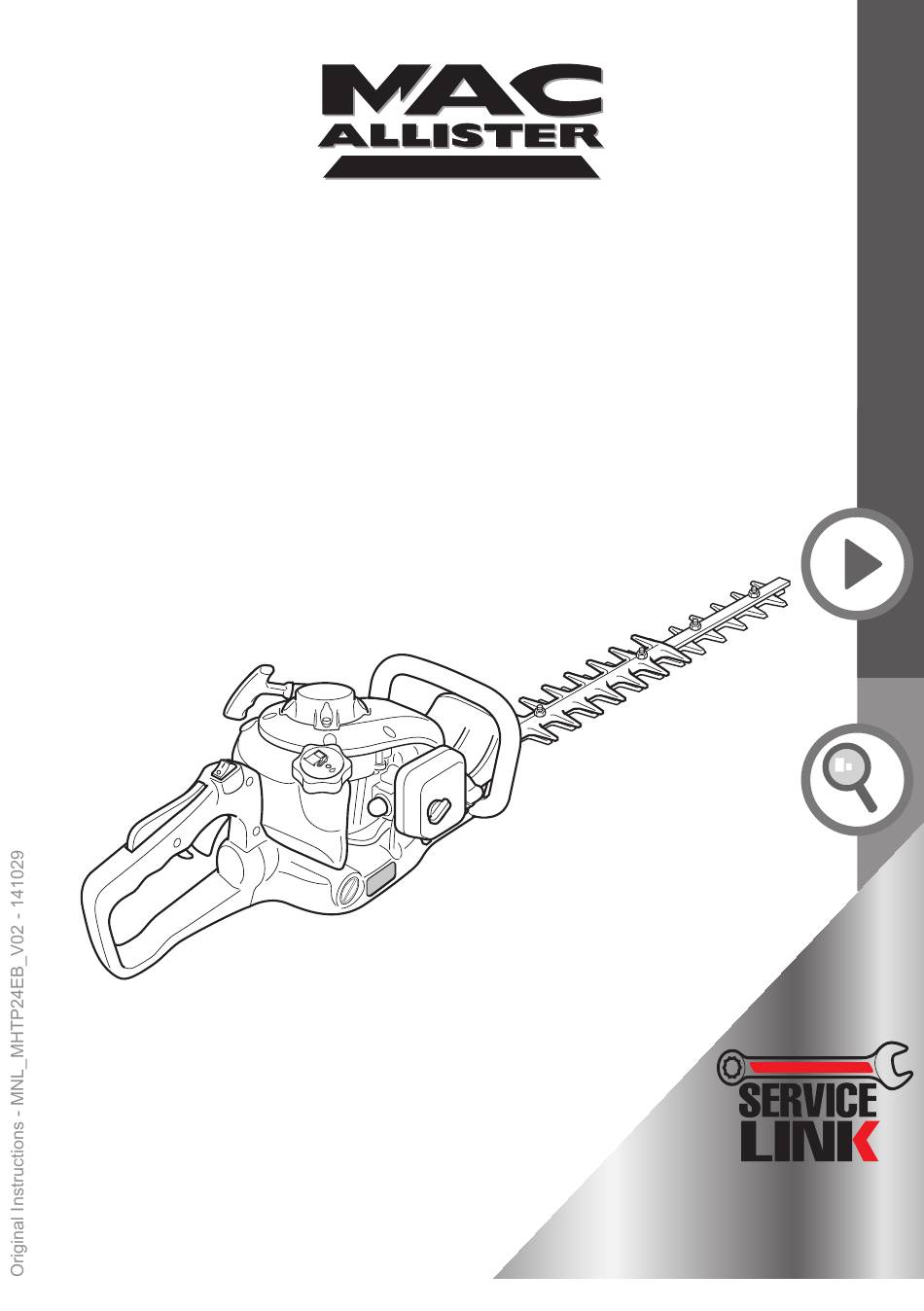

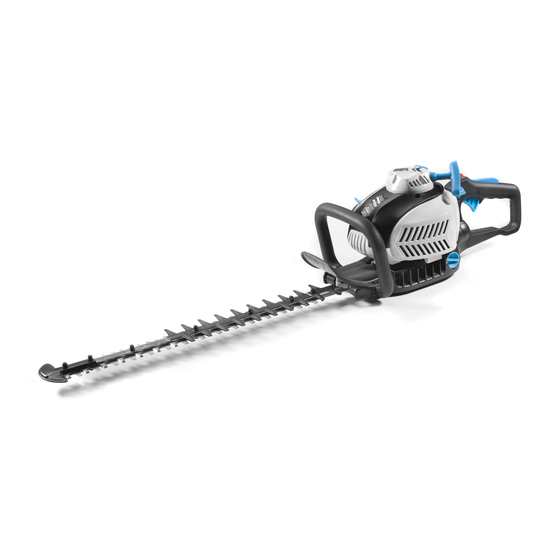

- Page 1 24.5cc 550mm Petrol Hedge Trimmer Supported by MHTP24EB Barcode: 5052931426133 WARNING: Read the instructions before using the product. For all your Warranty, Parts and Service needs 0800 121 6585 www.servicelink.org.uk...
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Before you start Quick start Safety detail... more Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Technical and legal information Guarantee... - Page 3 Before you start MHTP24EB by MacAllister Your product...
-
Page 4: Before You Start
Before you start MHTP24EB by MacAllister Your product Front handle Throttle interlock Front safety guard Ignition switch (on/off) Blade cover Recoil starter handle Cutting device (blade) Rear handle Spark plug connector Rear safeguard Air filter cover Unlock button (handle Fixing screw adjustment) - Page 5 Before you start MHTP24EB by MacAllister Fuel and engine oil WARNING! This product is not supplied with fuel-oil mixture in the engine! Before operating this product it is essential to fill it with fuel This product is equipped with a 2-stroke engine, the fuel and oil tank are combined and it is essential to fill fuel-oil mixture before operating this product. Observe the technical specifictions for suitable fuel and engine oil. WARNING! Fuel and oil are highly inflammable! Fumes...
- Page 6 Before you start MHTP24EB by MacAllister Fuel and engine oil > Avoid spilling and overfilling the tank. > Wipe up spilled fuel with a soft cloth and refit the fuel tank cap (10). > Always dispose of fuel, used oil and soiled objects according to local regulations (see section “Recycling and disposal”). 5 mm 40:1 35:1 Fig. 1 Fig. 2 WARNING! Fuel and oil deteriorate over time. It may be difficult to start the engine if you use fuel which has been kept for more than 30 days. Towards the end of the season,...
- Page 7 Quick start MHTP24EB by MacAllister Operating controls unlock button unlock button recoil starter handle handle adjustment recoil starter handle handle adjustment ignition switch ignition switch throttle throttle fuel tank primer choke throttle throttle fuel tank primer choke interlock trigger lever...
-
Page 8: Quick Start
Quick start MHTP24EB by MacAllister Set up Mix petrol and 2-stroke engine oil Adjust in a container thoroughly, and fill the mixture into the tank Cold start Set switch to Move choke Pull recoil starter handle Press primer position “I” lever to the slowly until you feel a definite 7-10 times until “closed“... - Page 9 Quick start MHTP24EB by MacAllister Stopping Release Let the machine Set switch to Empty fuel tank trigger run at its idle position “O” speed Clean and Store maintain...
-
Page 10: Safety
Safety MHTP24EB by MacAllister Check that you have noted all the following instructions: Before starting you must have fully read and understood the entire instruction manual. Working with this product is demanding; therefore ensure you are physically and mentally fit to complete the job safely. Ensure that you have all the accessories and tools needed for assembly and operation. -
Page 11: In More Detail
MHTP24EB by MacAllister more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Technical and legal information Guarantee EC declaration of conformity... -
Page 12: Product Functions
Product functions MHTP24EB by MacAllister Intended use This petrol hedge trimmer MHTP24EB is designated with an engine displacement of 24.5 cm³. The product is intended for trimming hedges, bushes and shrubs. Observe the technical data for the maximum cutting capacity. Do not cut branches exceeding the stated maximum capacity.This product is intended for private use... - Page 13 Product functions MHTP24EB by MacAllister Handle controls There are three controls at the handle (16) with the following functions. > The ignition switch (14) enables the manual starting or the stopping of the engine. > The throttle interlock (13) prevents unintentional activation of the throttle trigger until manually released.
- Page 14 Product functions MHTP24EB by MacAllister Starting / Stopping > Hold the product stable and pull recoil starter handle (15) slowly until you feel a definite resistance and then give it a brisk, strong pull. Repeat until the engine starts (Fig. 10).
- Page 15 Product functions MHTP24EB by MacAllister Cutting > Press the throttle interlock (13), hold it in position and then press the throttle trigger (12) to engage the cutting device. > Release the throttle trigger (12) to stop the cutting device (4). Stopping > Release the throttle trigger (12) and let the product run at its idle speed for 10 – 15 seconds.
-
Page 16: Operation
Operation MHTP24EB by MacAllister General behaviour > Check the product as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > Double check that accessories, safety guards and blades are properly fixed. - Page 17 Operation MHTP24EB by MacAllister Cutting > Adjust the handle so that it fits the intended cut and start the product as described. > Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation.
- Page 18 Operation MHTP24EB by MacAllister Cutting > Cut in a number of stages if the area being cut is particularly long to achieve a better result; smaller cuttings will allow for easy composting. NOTE: When shaping it is advisable to achieve a trapezoidal shape (Fig.
- Page 19 Care and maintenance MHTP24EB by MacAllister Cutting WARNING! Always switch the product off, let the product cool down and disconnect the spark plug connector before performing inspection, maintenance and cleaning work! > Keep the product clean and free from debris after each use and before storage. > Regular and correct cleaning of this product will help ensure safe use and prolong the life of the product.
-
Page 20: Care And Maintenance
Care and maintenance MHTP24EB by MacAllister Cutting blade WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris e.g. a brush or wooden stick! Never use your bare hands! > Keep the cutting blade (4) clean and free of debris. Remove trimmings. - Page 21 Care and maintenance MHTP24EB by MacAllister Air filter > Inspect the air filter regularly. Replace it with a new one if necessary. > Open the air filter case by losing the fixing screw (7). Then remove the screw (7), cover (6) and take the filter out (Fig. 17). > Tap the filter on a stable surface to remove dust.
- Page 22 Care and maintenance MHTP24EB by MacAllister Spark plug > Code of the spark plug : NHSP LD L8RTF. > Inspect the spark plug at least every 25 hours or prior to longterm storage over 30 days if the use has not been this high. Clean or replace with a new spark plug if necessary.
- Page 23 Care and maintenance MHTP24EB by MacAllister Carburettor The carburettor is pre-set by the manufacturer. Should it be necessary to make any changes please contact an authorised service centre or a similarly qualifiedperson. Do not attempt to make any adjustments by yourself. Repair This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and...
- Page 24 Care and maintenance MHTP24EB by MacAllister Repair Part To do Before/ after hours hours hours hours each / half once a year year Spark check plug Spark clean plug Spark replace whenever necessary plug check filter clean filter replace whenever necessary...
- Page 25 Care and maintenance MHTP24EB by MacAllister Storage > Clean the product as described above. > Store the product and its accessories in a dark, dry, frost-free, well-ventilated place. > Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C.
-
Page 26: Trouble Shooting
Trouble shooting MHTP24EB by MacAllister Trouble shooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service... -
Page 27: Recycling And Disposal
Recycling and disposal MHTP24EB by MacAllister Service Link This product is supported by Service Link. If you have been unable to find the information you require above please call the Service Link helpline. Here you will find 1-2-1 help and advice from HELPLINE garden machinery repair specialists. -
Page 28: Technical And Legal Information
Technical and legal information MHTP24EB by MacAllister Technical specification > Engine type : 1E34F-2 > Engine displacement : 24.5 cm³ > Engine speed at maximum power : 8000 min > Recommended max. engine speed : 9500 min > Engine idle speed : 3300 min >... - Page 29 Technical and legal information MHTP24EB by MacAllister The declared vibration value has been measured in accordance with a standard test method and may be used for comparing one product with another. The declared vibration value may also be used to evaluate the exposure for the user caused by vibration in advance.
- Page 30 Technical and legal information MHTP24EB by MacAllister Symbols Read the instruction Caution / Warning. manual. Wear hearing Wear eye protection. protection. Wear respiratory Wear protective gloves. protection. Wear safety footwear. Wear safety helmet! Wear tight-fitted Wear face protection! protective clothes. Keep fingers away from moving cutting device Risk of fire / flammable material Hot surface, do not touch. The high temperatures on the...
- Page 31 Technical and legal information MHTP24EB by MacAllister Naked flames in the work area, around the product and in the vicinity of flammable materials are prohibited Do not smoke in the work area, around the product and in the vicinity of flammable materials Do not use in rain or wet conditions. Press the unlock button down and turn the rear handle. Guaranteed sound power level value in dB The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
- Page 32 Technical and legal information MHTP24EB by MacAllister Safety warnings Training > Become familiar with the owner’s manual before attempting to operate the product. Preparation > This product can cause serious injuries. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the product.
- Page 33 Technical and legal information MHTP24EB by MacAllister > Wear hearing protection! > Wear eye protection! > In an emergency switch the product off by immediately releasing the throttle trigger and setting the ignition switch to its off position “O”. Operation >...
- Page 34 Technical and legal information MHTP24EB by MacAllister Safety warnings Maintenance and storage > When the product is stopped for servicing, inspection or storage, shut off the power source, disconnect the spark plug wire from the spark plug and make sure all moving parts have come to a stop. Allow the product to cool before making any inspections, adjustments, etc. > Store the product where the fuel vapour will not reach an open flame or spark. Always allow the product to cool down before...
- Page 35 Technical and legal information MHTP24EB by MacAllister standing on steps or a ladder. Do not work over shoulder height. > Always ensure the safety guard supplied is fitted before using the product. Never attempt to use an incomplete product or one fitted with an unauthorised modification. > Check cutting blade regularly for damage, and if damaged repair immediately. > Do not overload the product. > Check immediately if the product starts to vibrate abnormally.
- Page 36 Technical and legal information MHTP24EB by MacAllister Safety warnings Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: >...
- Page 37 Technical and legal information MHTP24EB by MacAllister Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: >...
-
Page 38: Guarantee
Guarantee MHTP24EB by MacAllister Guarantee > This product has been manufactured to a high quality standard. It is guaranteed against faulty materials and workmanship for 24 months from purchase, please retain your till receipt as proof of purchase. > If the product is found to be defective within the relevant time... -
Page 39: Ec Declaration Of Conformity
B&Q PLC. CHANDLERS FORD, HANTS, SO53 3LE Declare that the product MHTP24EB Petrol Hedge Trimmer 24.5 cm Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following Directives: The Machinery Directive 2006/42/EC • EN ISO 10517:2009+A1:2013 The EMC Directive 2004/108/EC •... - Page 40 B&Q plc. Chandlers Ford, Hants, GB-IE SO53 3LE, United Kingdom www.diy.com...
