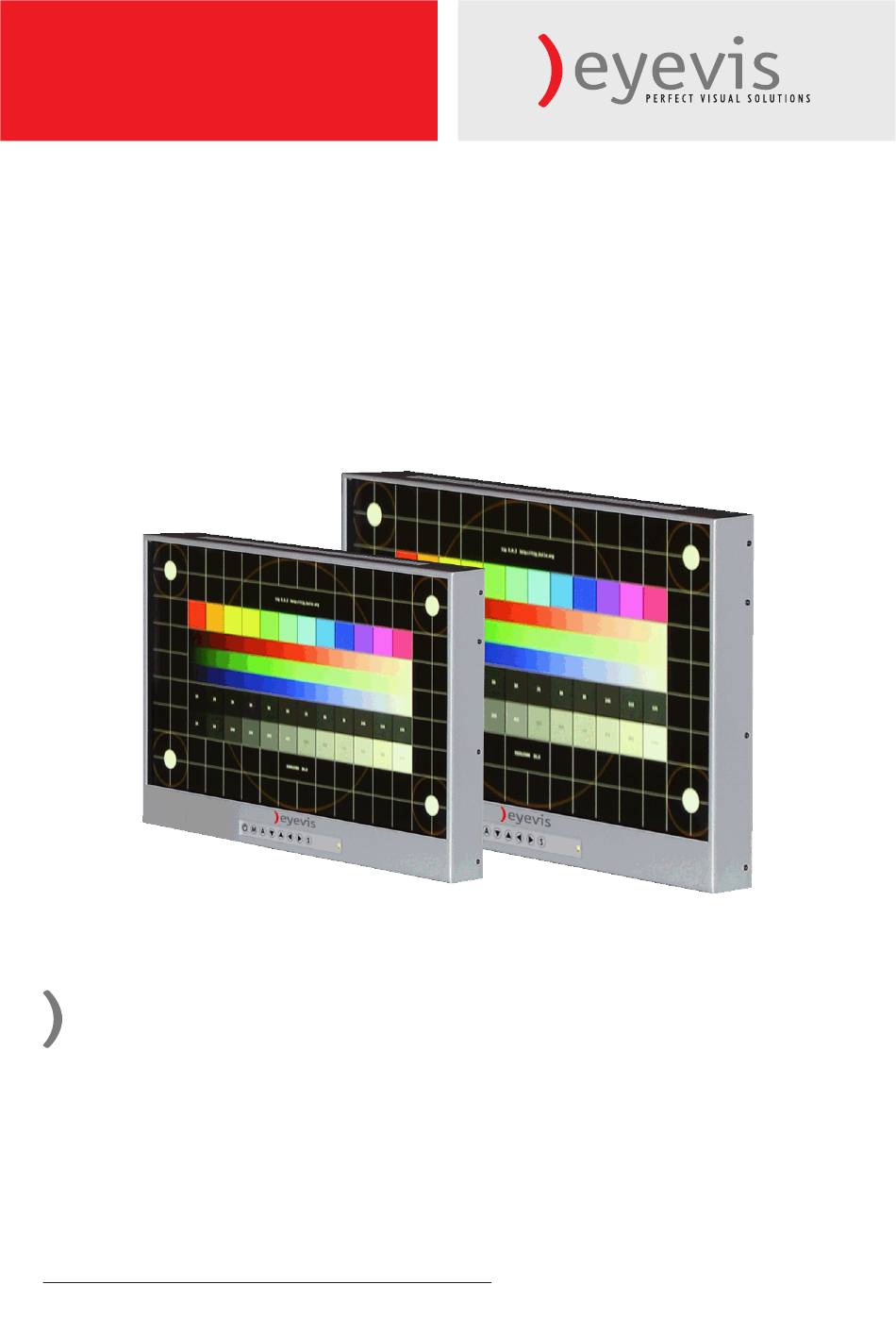

EYE-LCD-1700/2100-HB-BC
EYE-LCD-1700/2100-HB-BC
User's Manual
Version 1.1 (Dezember 2012)
Technical changes reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EYE-LCD-1700-HB-BC and is the answer not in the manual?

Questions and answers

Summary of Contents for Eyevis EYE-LCD-1700-HB-BC

  • Page 1 EYE-LCD-1700/2100-HB-BC EYE-LCD-1700/2100-HB-BC User’s Manual Version 1.1 (Dezember 2012) Technical changes reserved.
  • Page 2 EYE-LCD-1700/2100-HB-BC...

  • Page 3: Table Of Contents

    EYE-LCD-1700/2100-HB-BC TABLE OF CONTENT ABOUT THIS MANUAL ZU DIESEM HANDBUCH À PROPOS DE CE MANUEL SAFETY/SICHERHEIT/SÉCURITÉ SAFETY PRECAUTION ........................9 SAFETY INSTRUCTIONS ......................10 SICHERHEITSVORKEHRUNGEN ....................13 SICHERHEITSHINWEISE ......................14 PRÉCAUTIONS DE SÉCURITÉ ...................... 17 MESURES DE SÉCURITÉ ......................18 FEATURES PACKING AND MEASURES Way of Packaging ........................
  • Page 4 10.6 Advised Procedure for Raising a Claim ..................48 10.6.1 Consider the Manual before Raising a Claim ..................48 10.6.2 Prepare necessary Information ........................48 10.6.3 Approval by eyevis ............................48 10.6.4 Packing ................................48 10.6.5 Transport ................................. 48 10.6.6 Service Code ..............................
  • Page 5 EYE-LCD-1700/2100-HB-BC REVISION HISTORY PAGE / SEC- VERSION DATE DESCRIPTION TION 2011-10-17 Specification first issued 2012-12-20 New layout...

  • Page 6: About This Manual

    EYE-LCD-1700/2100-HB-BC ABOUT THIS MANUAL Read and pay attention to this manual. It contains important information on the product. In particularly, note all of the safety instructions and warnings. Keep this manual in a safe place! Warnings used NOTICE! Indicates a hazard that could lead to damage or destruction of the product. The general warning symbol indicates a hazard that could lead to injuries or death.

  • Page 7: Zu Diesem Handbuch

    EYE-LCD-1700/2100-HB-BC ZU DIESEM HANDBUCH Lesen und beachten Sie dieses Handbuch. In ihm stehen wichtige Informationen zum Produkt. Beachten Sie insbesondere alle Sicherheits- und Warnhinweise. Bewahren Sie dieses Handbuch sorgfältig auf! Verwendete Warnhinweise ACHTUNG! Kennzeichnet eine Gefahr, die zur Beschädigung oder Zerstörung des Produkts führen kann.

  • Page 8: À Propos De Ce Manuel

    EYE-LCD-1700/2100-HB-BC À PROPOS DE CE MANUEL Lisez et suivez ces instructions. Ils contient des informations importantes sur le produit. Faites particulièrement attention à toutes les consignes de sécurité et aux avertissements. Conservez ce manuel soigneusement! Des symboles d`avertissement utilisés ATTENTION! Indique un danger qui peut endommager ou détruire le produit.

  • Page 9: Safety/Sicherheit/Sécurité

    EYE-LCD-1700/2100-HB-BC SAFETY/SICHERHEIT/SÉCURITÉ SAFETY PRECAUTION Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.

  • Page 10: Safety Instructions

    Never rub or tap the monitor with hard objects. Please understand that eyevis bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.
  • Page 11 If dust collects inside the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized Eyevis servicing dealer or service center.
  • Page 12 EYE-LCD-1700/2100-HB-BC NOTICE! This is a class A product according EN 55022: 2010. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate counter measures. NOTICE! To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: PC/AV DVI-D output terminal, PC/AV DVI-D input terminal, PC/AV HDMI input terminal, PC D-SUB input terminal, PC RGB input terminals, and RS-232C input/output terminals.

  • Page 13: Sicherheitsvorkehrungen

    EYE-LCD-1700/2100-HB-BC SICHERHEITSVORKEHRUNGEN Elektrizität erfüllt viele nützliche Aufgaben, kann aber auch Personen- und Sachschäden verursachen, wenn sie unsachgemäß gehandhabt wird. Dieses Produkt wurde mit Sicherheit als oberster Priorität konstruiert und hergestellt. Dennoch besteht bei unsachgemäßer Handhabung u.U. Stromschlag- und Brandgefahr. Um mögliche Gefahren zu vermeiden, befolgen Sie beim Aufstellen, Betreiben und Reinigen des Produkts bitte die nachstehenden Anleitungen.

  • Page 14: Sicherheitshinweise

    EYE-LCD-1700/2100-HB-BC  Wenn das Gerät nicht wie in der Bedienungsanleitung beschrieben funktioniert.  Nehmen Sie nur die in den Bedienungsanleitungen beschriebenen Einstellungen vor. Unsachgemäße Einstellungen an anderen Reglern können zu einer Beschädigung führen und machen häufig umfangreiche Einstellarbeiten durch einen qualifizierten Service-Techniker erforderlich. ...
  • Page 15 Vermeiden Sie es, den Monitor mit harten Gegenständen abzureiben oder zu berühren. Wir bitten um Ihr Verständnis, dass eyevis über die gesetzlich anerkannte Leistungshaftung hinaus keine Haftung für Fehler übernimmt, die sich aus der Verwendung durch den Kunden oder einen Dritten ergeben, und auch nicht für sonstige Funktionsstörungen oder Schäden, die während der Verwendung am Gerät entstehen.
  • Page 16 EYE-LCD-1700/2100-HB-BC ACHTUNG! Dieses Gerät ist ein Produkt der Klasse A gemäß EN 55022: 2010. In Wohnräumen kann dieses Gerät Störsignale erzeugen, die durch entsprechende Abhilfemaßnahmen durch den Benutzer beseitigt werden müssen. ACHTUNG! Verwenden Sie EMV-gerechte, abgeschirmte Kabel, um die folgenden Anschlüsse zu verbinden: PC/AV DVI-DAusgangsanschluss, PC/AV DVI-D-Eingangsanschluss, PC/AV HDMI- Eingangsanschluss, PC D-sub-Eingangsanschluss, PCRGB-Eingangsanschlüsse und RS-232C-...

  • Page 17: Précautions De Sécurité

    EYE-LCD-1700/2100-HB-BC PRÉCAUTIONS DE SÉCURITÉ L’électricité remplit de nombreuses fonctions utiles, mais elle peut provoquer des blessures et des dégâts matériels si elle n’est pas utilisée correctement. Cet appareil a été conçu et fabriqué en attachant la plus grande importance à la sécurité.

  • Page 18: Mesures De Sécurité

    Ne frottez pas, ne grattez pas le moniteur avec un objet dur. Il faut savoir que la Eyevis décline toute responsabilité en cas d’erreurs commises durant l’utilisation par le client ou par une tierce personne, ainsi qu’en cas de dysfonctionnement ou de dommage survenu à ce produit pendant son...
  • Page 19 à l’intérieur du moniteur risque d’entraîner une surchauffe, un incendie ou un dysfonctionnement. Faites nettoyer l’intérieur du moniteur par un revendeur Eyevis ou un centre de services autorisé. Il n’est pas possible de faire tourner les images sur ce moniteur. Quand vous travaillez suivant la direction verticale, prévoyez d’orienter au préalable le contenu.
  • Page 20 EYE-LCD-1700/2100-HB-BC ATTENTION! Ce produit appartient à la Classe A d‘après la norme EN 55022: 2010. Dans un environnement résidentiel, il peut provoquer des interférences radio et, dans ce cas, l’utilisateur peut être obligé de prendre les mesures nécessaires. ATTENTION! Afin de satisfaire aux normes EMC, utiliser des câbles blindés pour connecter les bornes suivantes : Borne de sortie PC/AV DVI-D, borne d’entrée PC/AV DVI-D, borne d’entrée PC/AV HDMI, borne d’entrée PC D-sub, bornes d’entrée PC RVB, et bornes d’entrée/sortie RS-232C.

  • Page 21: Features

    EYE-LCD-1700/2100-HB-BC FEATURES Eyevis‘ new display devices from the EYE-LCD-HB-BC series are portable LCD monitors for professional use in outdoor applications. The range offers displays in two different sizes, 17“ and 21“. Both versions feature almost the same technical features. The displays provide all necessary connectors and timings for sophisticated use in broadcast aplications.

  • Page 22: Technical Specifications

    EYE-LCD-1700/2100-HB-BC TECHNICAL SPECIFICATIONS EYE-LCD-1700-HB-BC LCD Display EYE-LCD-1700-HB-BC Diagonal 17,1“ (433 mm) Max. Image Resolution 1440 x 900 Pixel Pixel Pitch 0,255 x 0,255 mm Aspect Ratio 16:10 Brightness 1100 cd/m² (typ.) Contrast 800:1 (typ.) Backlight Edge-LED Inputs (HD)SDI (HD)SDI 1x BNC (loop-htrough)
  • Page 23 EYE-LCD-1700/2100-HB-BC EYE-LCD-2100-HB-BC LCD Display EYE-LCD-2100-HB-BC Diagonal 21,5“ (547 mm) Max. Image Resolution 1920 x 1080 Pixel Pixel Pitch 0,248 x 0,248 mm Aspect Ratio 16:9 Brightness 1200 cd/m² (typ.) Contrast 1000:1 (typ.) Backlight Edge-LED Inputs (HD)SDI (HD)SDI 1x BNC (loop-htrough) DVI (HDCP) 1x DVI 1x D-Sub15 (HD-15)
  • Page 24 EYE-LCD-1700/2100-HB-BC Dimension EYE-LCD-1700-HB-BC Dimension EYE-LCD-2100-HB-BC...

  • Page 25: Installation Of The Monitor

    EYE-LCD-1700/2100-HB-BC INSTALLATION OF THE MONITOR Overview of Cable Connection Connecting Pin assignments for VGA DSUB 15 pin; female connector 1. Analogue Red 6. GND 11. Not connected 2. Analogue Green 7. GND 12. DDC SDA 3. Analogue Blue 8. GND 13.
  • Page 26 EYE-LCD-1700/2100-HB-BC Connecting Pin assignment for DVI 1. TMDS Data 2- 9. TMDS Data 1- 17. TMDS Data 0- 2. TMDS Data 2+ 10. TMDS Data 1+ 18. TMDS Data 0+ 3. Shielded TMDS Data 2,4 11. Shielding TMDS Data 1,3 19.

  • Page 27: Using The On Screen Display (Osd) Menu

    EYE-LCD-1700/2100-HB-BC USING THE ON SCREEN DISPLAY (OSD) MENU Navigating through the Menu System With the power on, press MENU. The Image Settings menu will display. Within the menu, use ▲, ▼, ◄, ► and ENTER to navigate through the menus and adjust options. Press MENU to return to the previous menu.

  • Page 28: Image Settings Menu

    EYE-LCD-1700/2100-HB-BC Image Settings Menu This menu is used for making common image adjustments. BRIGHTNESS Increases or decreases the brightness of picture. Press ◄ or ► to select the desired level. Press MENU to exit. Range: 0~100 (Default: 50) CONTRAST Increases or decreases the contrast of picture. Press ◄...

  • Page 29: Display Settings Menu

    EYE-LCD-1700/2100-HB-BC Display Settings Menu This menu is used for common source adjustments. SCAN MODE Crop the input based on the input mode and/or input port (video mode crop) Press ► to select following options: (ZERO SCAN or OVER SCAN) Press MENU to exit. ASPECT MODE Changes the picture aspect ratio.

  • Page 30: Color Temp Menu

    EYE-LCD-1700/2100-HB-BC Color Temp Menu This menu is used for adjusting colour temperatur settings. COLOR TEMP Adjust the color temperature. Press ▲ or ▼, to select the following options: 4500K, 5500K, 6500K, 7500K, 8500K 9300K, NATIVE, MONO and USER mode. Press MENU to exit. COLOR TEMP USER Adjust the color temperature USER mode.

  • Page 31: Color Temp User Menu

    EYE-LCD-1700/2100-HB-BC Color Temp User Menu This menu is used for adjusting user colour temperatur settings. Adjust the red colour. Press ◄ or ► to select the desired level. Press MENU to exit. Range: 0~100 (Default: 50) GREEN Adjust the green colour. Press ◄ or ► to select the desired level. Press MENU to exit.

  • Page 32: Pip Setting Menu

    EYE-LCD-1700/2100-HB-BC PIP Setting Menu PIP MODE Press ► to switch ON/OFF the PIP (picture in picture) function. Press ► to adjust the PIP image size and side by side window set: (SMALL, MEDIUM, LARGE, SIDE BY SIDE Window) Press MENU to exit. PIP SOURCE Select input signal of PIP.

  • Page 33: Using Pip (Picture-In-Picture) Mode

    EYE-LCD-1700/2100-HB-BC 6.8.1 Using PIP (Picture-in-Picture) Mode Turn ON PIP - press ► to enter the PIP menu. Select PIP MODE and press ► to switch ON the PIP function. Press ◄ or ► to select the desired size sub-source: (SMALL, MEDIUM, LARGE, SIDE BY SIDE Window) Main Large PIP Medium PIP...
  • Page 34 EYE-LCD-1700/2100-HB-BC To switch audio between the main source and the sub-source: Press MENU to exit. Enter the OPTIONS Menu by pressing ►. Press ► to switch the desired audio: (MAIN or PIP) Main Subsource Side by Side (Picture-by-Picture): Press ◄ or ► to select the SIDE BY SIDE, then the main source and the sub-source will be on the screen display.

  • Page 35: Setup Menu

    EYE-LCD-1700/2100-HB-BC Setup Menu MAIN SOURCE Selects the input signal. Press ◄ or ► to select the desired input source: (SDI, DIGITAL, ANALOG, COMPOSITE, S-VIDEO) Press MENU to exit. GAMMA Adjust panel gamma curve. Press ◄ or ► to select the desired setting: (LINEAR, CRT, X-RAY) Press MENU to exit.

  • Page 36: Setup Osd Menu (Continued)

    EYE-LCD-1700/2100-HB-BC 6.10 Setup OSD Menu (continued) LANGUAGE Adjust OSD Language. Press ◄ or ► to select the desired language: (ENGLISH, SPANISH, GERMAN, ITALIAN and FRENCH) Press MENU to exit. OSD TIMEROUT Adjust the OSD off timer. Press ◄ or ► to select the desired level. Press MENU to exit.

  • Page 37: Options Menu

    EYE-LCD-1700/2100-HB-BC 6.11 Options Menu VOLUME WINDOW Select the volume source. Press ◄ or ► to select the desired volume source: (MAIN or PIP) Press MENU to exit. VOLUME Adjust the volume for the specified volume window. Press ◄ or ► to select the desired volume level. Press MENU to exit.

  • Page 38: Malfunction Or Trouble

    EYE-LCD-1700/2100-HB-BC A GUIDE TO SIMPLE PROBLEM SOLVING - TROUBLESHOOTING Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptom Check these things No picture  Make sure the power cord is plugged in ...

  • Page 39: Guidelines To Avoid Undesired Effects By Using The Displays

    EYE-LCD-1700/2100-HB-BC GUIDELINES TO AVOID UNDESIRED EFFECTS BY USING THE DISPLAYS Introduction Thanks to their flexible possibilities of usage, their minor space requirement and their reliable display performance the displays of the EYE-LCD Series have become more and more popular for a wide range of applications.

  • Page 40: Advantages Of The Eye-Lcd Series Over Other Display Technologies

    The LCD/TFT Technology of the EYE-LCD Series: The light for the LCD/TFT technology used for the displays from eyevis comes from several small fluorescent tubes. These tubes are placed behind several different filter layers and a polarisation filter. In colour LCDs each individual pixel is divided into three cells, or sub-pixels, which are coloured red, green, and blue, respectively, by additional filters (pigment filters, dye filters and metal oxide filters).

  • Page 41: Evaluation Of Visual Range

    EYE-LCD-1700/2100-HB-BC EVALUATION OF VISUAL RANGE Failure of Pixel A image point (Pixel) consist 3 sub pixel with basic colour red, green and blue. The physical dimension of pixel (also called pixel pitch) differs depending on the model (look at the data sheet for more information). If a pixel failure is larger than 1/2 pixel, it counts as pixel failure according to definition.

  • Page 42: Overview Acceptable Total Number Of Dot Defects

    2 bright subpixel + 6 black subpixel → 4 bright subpixel + 2 black subpixel 1 bright subpixel + 8 black subpixel 0 bright subpixel +10 black subpixel For more information, see the information sheet „Standards for Display Quality Inspection“ of eyevis GmbH.

  • Page 43: Chronological Effects

    EYE-LCD-1700/2100-HB-BC Chronological Effects False installation or use of the display during operating time may bring forth undesirable partly visible effects. The intern structure of imaging part (panel) may be changed by outside influences with partly visible effects. 9.4.1 “Image Sticking” This phenomenon which named alternatively “Image Retention”, „Ghost Image“, „Memory Effect“...
  • Page 44 EYE-LCD-1700/2100-HB-BC How to minimize the Danger of “Image Sticking” NOTICE! Reduce Ambient Temperature The ambient temperature and therefore the temperature inside the LCD display plays a decisive role for the appearance of „Image Sticking“. The risk of „Image Sticking“ increases the higher the surrounding temperature is. If possible, the ambient temperature should not exceed 35°C.
  • Page 45 EYE-LCD-1700/2100-HB-BC Summary Unlike permanent burn-in in phosphor-based displays, which is the result of a premature aging of the phosphors of individual pixels, and thus, is irreversible, „Image Sticking“ in LCD panels can often be reversed to a point of total invisibility. However, the extent to which „Image Sticking“...

  • Page 46: Warranty Terms And Conditions

    Repair and Costs (only products under warranty) The defective product is sent to eyevis by the customer and is repaired within 21 days. In this case eyevis bears the costs for eventually required components or the arising working time, as well as for the costs for the reshipment to the customer.

  • Page 47: Warranty Exclusions

    The reaction time to claim a right given by this warranty starts with the customer’s announcement of the claim to the eyevis GmbH. It is calculated in accordance to the standard service hours of the eyevis GmbH (monday- friday 9.00 AM to 5.00 PM (CET ), except german bank holidays).

  • Page 48: Advised Procedure For Raising A Claim

    The customer will receive a service code and the eyevis GmbH will prepare the service work chosen by the customer. It is the customer’s duty to keep the product ready for collection (in cases of DOA the product has to be equipped with all cablings and mains adaptors before it is put in its box or packed).

  • Page 49: Legal And Other Claims

    11.2 Limitations of Liability In cases of slight negligent breaches of duty the liability of the eyevis GmbH is limited to the direct, foreseeable and contract-typical average damage. The slightly negligent breach of minor contractual obligations excludes the liability.

  • Page 50: Additional Support

    The content of this manual is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by eyevis GmbH. eyevis GmbH resumes no responsibility or liability for any errors or inaccuracies that may appear in this documentation.
