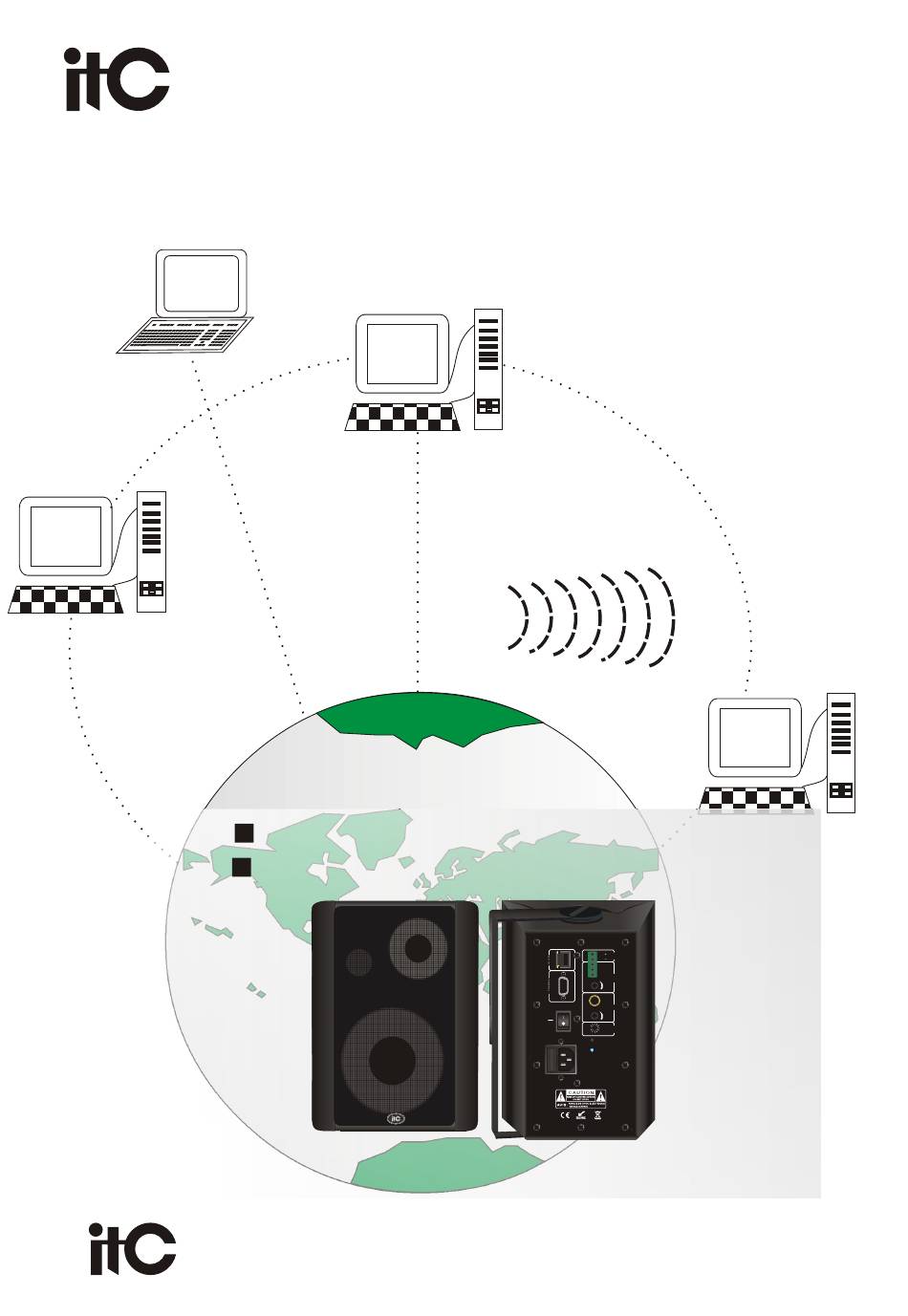

IP NETWORK PUBLIC ADDRESS SYSTEM
T-6707

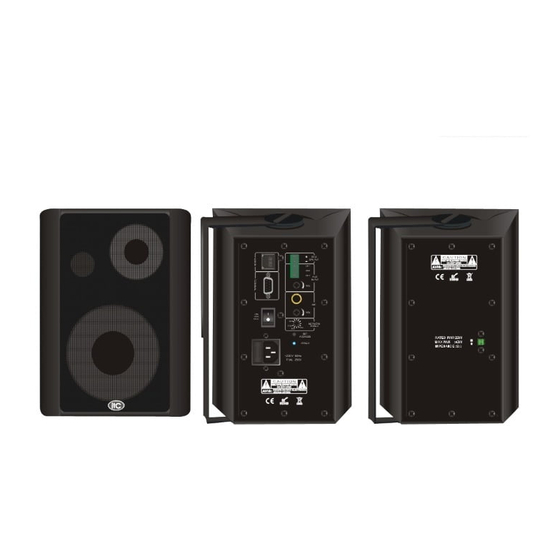

NETWORK AUDIO ADAPTER
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
IP
OWNER'S MANUAL
CH 2
SPK PUT
AUX 1
GND
AUX 2
AUX
IN PUT
VOL
MIC
VOL
ON
OFF
0W
NETWORK
30W
POWER
10W
20W
SET
ADDRESS
POWER
~230V 50Hz 75W
T1AL 250V
T-6707
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for ITC T-6707
- Page 1 IP NETWORK PUBLIC ADDRESS SYSTEM T-6707 NETWORK AUDIO ADAPTER CH 2 SPK PUT AUX 1 AUX 2 IN PUT NETWORK POWER ADDRESS POWER ~230V 50Hz 75W T1AL 250V T-6707 OWNER'S MANUAL Please follow the instructions in this manual to obtain the optimum results from this unit.
-
Page 2: Table Of Contents
TA B L E O F C O N T E N T S 1 . S A F E T Y P R E C A U T I O N S ..............1 2 . - Page 3 1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property... -
Page 5: General Description
2. GENERAL DESCRIPTION IP network active speakers with high efficiency, small volume, light weight, good, simple, and the sound Canon, practical advantages, can be widely used in the meeting place, home, enter -tainment, professional performance Such as amplification area, has the good market prospect. 3. -
Page 6: Nomenclature And Functions
RATED PWR:20W MAX PWR :40W POWER IMPEDANCE : 8 ~230V 50Hz 75W T1AL 250V T-6707 1. Connect the Ethernet / 8. MIC 6.3 single input switch port (RJ45 interface) 9. MIC volume potentiometer 2. Serial line interface, the connection 10.Network potentiometer can be set to address code 11.Address code reset buttons, press 9 seconds... - Page 7 5. OPERATION 1.Connect the TERMINAL and computer's TERMINAL with serial port line or change to USB connector, open All Program from Start in computer, find INTELLIGENT NETWORK BROADCAST then choose TERMINAL CONFIGURE PROGRAM 2.36, run software program , open terminal configure window 1, in serial port mode, click INQUIRY, then there will be window 2.
-
Page 8: O P E R A T I O N
OPERATION 2.IP network PA system configure: In Terminal Configure, set one IP call code to be paging center, press paging key, then it can realize telecom communication between two terminals. Diagram 7 N o t e t h e p o w e r s w i t c h 1. -
Page 9: C O N N E C T I O N D I A G R A M
6.CONNECTION DIAGRAM Connect the Ethernet /switch port Connection box CH 2 SPK PUT CH 1 CH 2 IN PUT NETWORK POWER ADDRESS POWER POWER OPEN PLAY STOP PREVIOUS NEXT CLOSE ~220V 50Hz T1AL 250V CD / TUNER /MP3 players and other audio equipment... -
Page 10: S C H E M A T I C D I A G R A M
7. SCHEMATIC DIAGRAM... -
Page 11: Specifications
8. SPECIFICATIONS Standard RJ45 1,3 Input, 2 output ( need insert the switcher) Network Input TCP/IP UDP IGMP (group broadcasting) Protocol Support MP3/MP2 Audio Format 8K-48KHz Sampling Rate 10Mbps Transmit Speed 16 digit stereo CD tone Audio Format 20Hz~16KHz Frequency Output T.H.D 0.3% >70dB... - Page 12 VersionV0.3...
