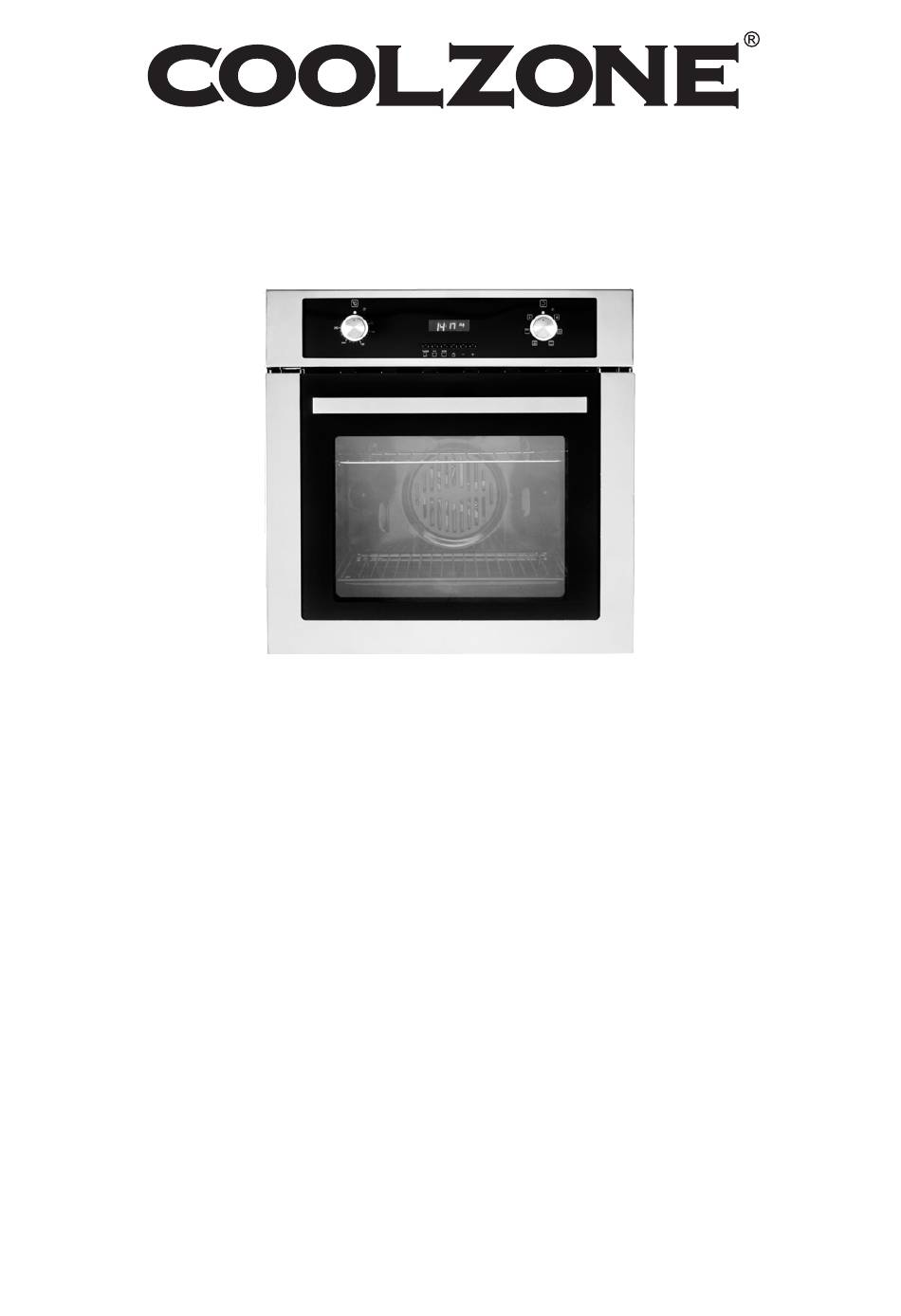

Built-in 4 Function Fan Oven
with LED Display
CZ55580
INSTALLATION AND OPERATING INSTRUCTIONS
same
The product may differ from the one illustrated but the installation and operation procedure remains the
The product may differ from the one illustrated but the installation and operation procedure remains the same

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CZ55580 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coolzone CZ55580

  • Page 1 Built-in 4 Function Fan Oven with LED Display CZ55580 INSTALLATION AND OPERATING INSTRUCTIONS same The product may differ from the one illustrated but the installation and operation procedure remains the The product may differ from the one illustrated but the installation and operation procedure remains the same...

  • Page 2: Table Of Contents

    Contents Introduction Unpacking Before installation Location Housing dimensions Electricity supply Installing the oven Safety notes Setting the oven clock Using the oven Using the grill Minute minder Semi-automatic cooking Fully-automatic cooking Cleaning the oven Cleaning the glass door Changing the lamp Mains lead replacement Plug replacement For best cooking results...

  • Page 3: Unpacking

    Introduction This quality oven has been designed to provide trouble-free service provided it is installed and maintained correctly. This oven is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.

  • Page 4: Location

    Location Avoid installing the oven too close to a fridge or boiler. The oven can be installed either in a housing unit as shown in Figure 1 or under a worktop as shown in Figure 2. Ensure that the surrounding material is heat resistant and non-combustible. Certain minimum clearances must be allowed for when planning the unit’s location.

  • Page 5: Electricity Supply

    Electricity supply Once a satisfactory location has been established, the electrical supply to the appliance must be arranged beneath the work surface. If an existing mains supply does not exist at the location, a mains wall outlet below the work surface, and a suitably rated isolator switch should be installed above the work surface and to one side of the unit, in case of an emergency (Figure 4).
  • Page 6 Please read these safety notes before using the oven • Never leave children unsupervised where the • Make sure you understand what the oven controls do before using the oven. oven is installed as the appliance will get hot during and after use. •...

  • Page 7: Setting The Oven Clock

    Setting the oven clock Before using the oven the clock/timer needs to be Set. Press the MANUAL button to stop the display flashing. Press the START and the STOP buttons at the same time. Then press the +/– buttons to set the time of day.

  • Page 8: Using The Oven

    Using the oven NOTE: When using for the first time the oven may smell for a short time while burning off dust and manufacturing residues from the heating elements. This is normal and does not indicate a fault with the oven.
  • Page 9 Thermostat Control The thermostat control determines the temperature inside the oven during cooking. Turn the control knob clockwise to align the cooking temperature with the marker on the control panel. During cooking the thermostat will maintain the set temperature. The temperature can be set between 50°C and 250°C. Figure 9 - thermostat control Function Selector There are 4 functions including OFF.

  • Page 10: Using The Grill

    Using the grill IT IS IMPORTANT TO CLOSE THE OVEN DOOR WHEN GRILLING FOOD. Move the shelf to the first or second position from the top. Select the symbol on the control selector. Turn the thermostat control between 50°C and 250°C and preheat the element for five minutes. Place the food in the middle of the grill pan and position the pan so the food is near but not touching the top element.

  • Page 11: Semi-Automatic Cooking

    Semi-automatic cooking Programming the cooking time Press and keep the START button depressed while you use the +/– buttons to enter the duration of cooking time. Select the temperature and cooking method by the controls. The oven will switch ON and AUTO will appear in the display. Once the cooking duration has elapsed cooking will stop and the alarm will beep intermittently.

  • Page 12: Cleaning The Oven

    Cleaning the oven Before cleaning the oven, wait for it to cool down. It is best to clean the bottom of the oven after every use and not allow the food or spots of oil to remain and become permanent stains. Wash surfaces in warm soapy water.

  • Page 13: Mains Lead Replacement

    Mains lead replacement Do not attempt to repair or replace the mains connecting cable yourself, consult a qualified electrician. Plug replacement This product is supplied with a fitted plug which contains GREEN/ a 13A fuse. If you are simply replacing the fuse, you must YELLOW use a 13A fuse which has been approved by ASTA to (EARTH)

  • Page 14: For Best Cooking Results

    For best cooking results Grill Even cooking • Ensure that the grill pan is positioned centrally below the grill element. Fat splattering To avoid fat splattering onto the oven interior • Ensure that the grill pan is not lined with foil •...

  • Page 15: Troubleshooting Guide

    Troubleshooting guide If you are experiencing problems with your oven, check the following problems and solutions below before contacting the Helpline. Problem Solution Nothing works and control panel display is blank. Check that: The main oven wall switch is switched to ON. Other appliances are working to determine if there is a general power failure The circuit breaker in the distribution box has not...

  • Page 16: Safe Oven Disposal

    Safe oven disposal To help the environment, Local authority instructions should be followed for the disposal of your product This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
