Ledj PERFORMER 36 RGB User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

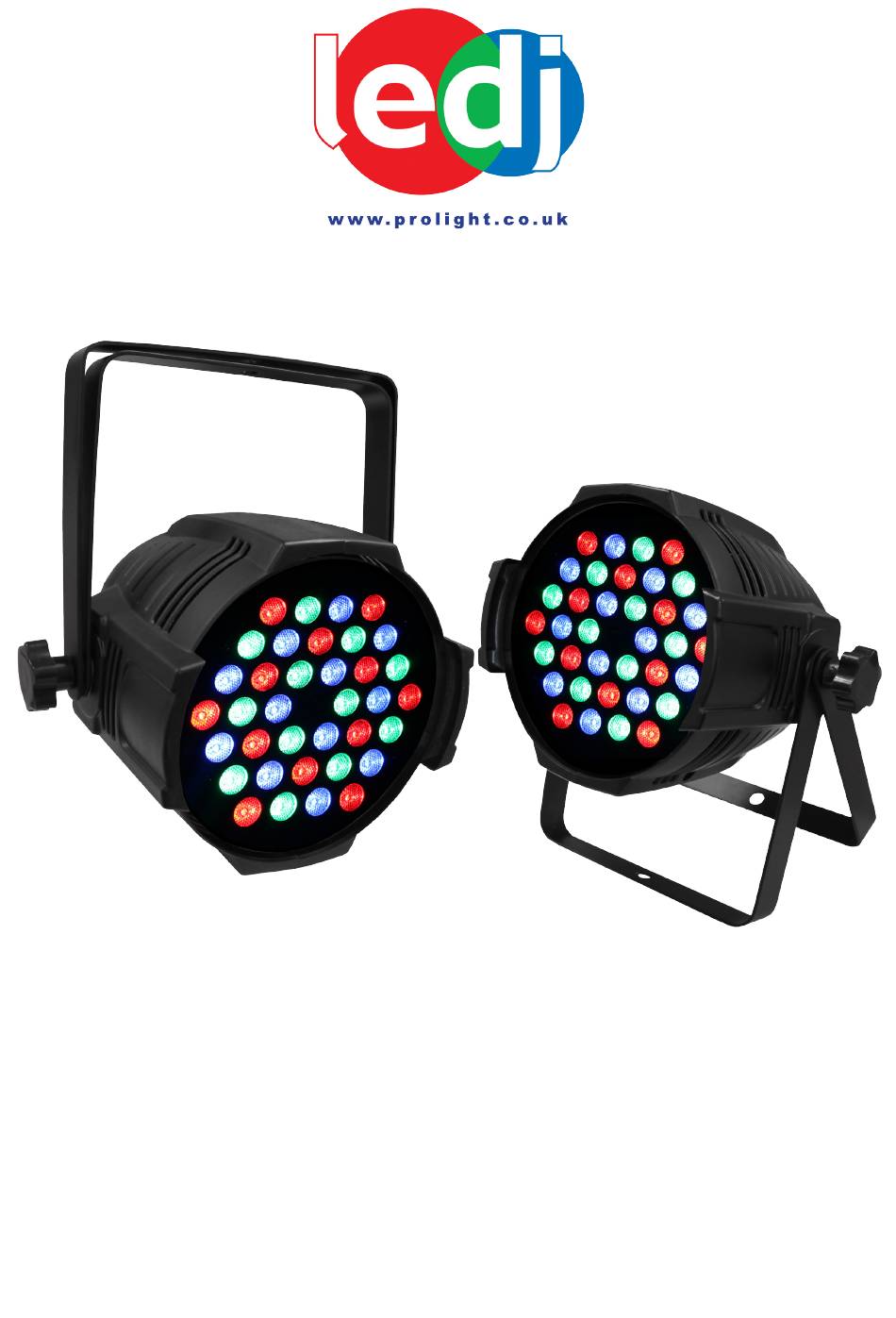

PERFORMER 36 RGB
Order code: LEDJ251
USER MANUAL

Advertisement

loading

Related Manuals for Ledj PERFORMER 36 RGB

Summary of Contents for Ledj PERFORMER 36 RGB

  • Page 1 PERFORMER 36 RGB Order code: LEDJ251 USER MANUAL...

  • Page 2: Safety Instructions

    Performer 36 RGB Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    Performer 36 RGB Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 Setup Operating Instructions The Performer 36 RGB is a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency 3W LED’s. There are three colour groups (red, blue and green) whose intensity can be controlled individually allowing the creation of an unlimited range of colours.
  • Page 5 Performer 36 RGB Operations DMX mode: To select DMX mode, press the “MENU” button to show “D001” on the display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512. When you have finished setting the desired DMX address press the “ENTER” button.
  • Page 6 Performer 36 RGB Operations DMX chart: CHANNEL VALUE FUNCTION 000-255 Master dimmer 000-255 Strobe (slow to fast) 000-049 Manual DMX 050-99 Colour change 100-150 Colour fade 150-199 Colour fade in/out 200-255 Sound active 000-255 Chase/fade Speed 000-255 000-255 Green 000-255...
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Performer 36 RGB can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
