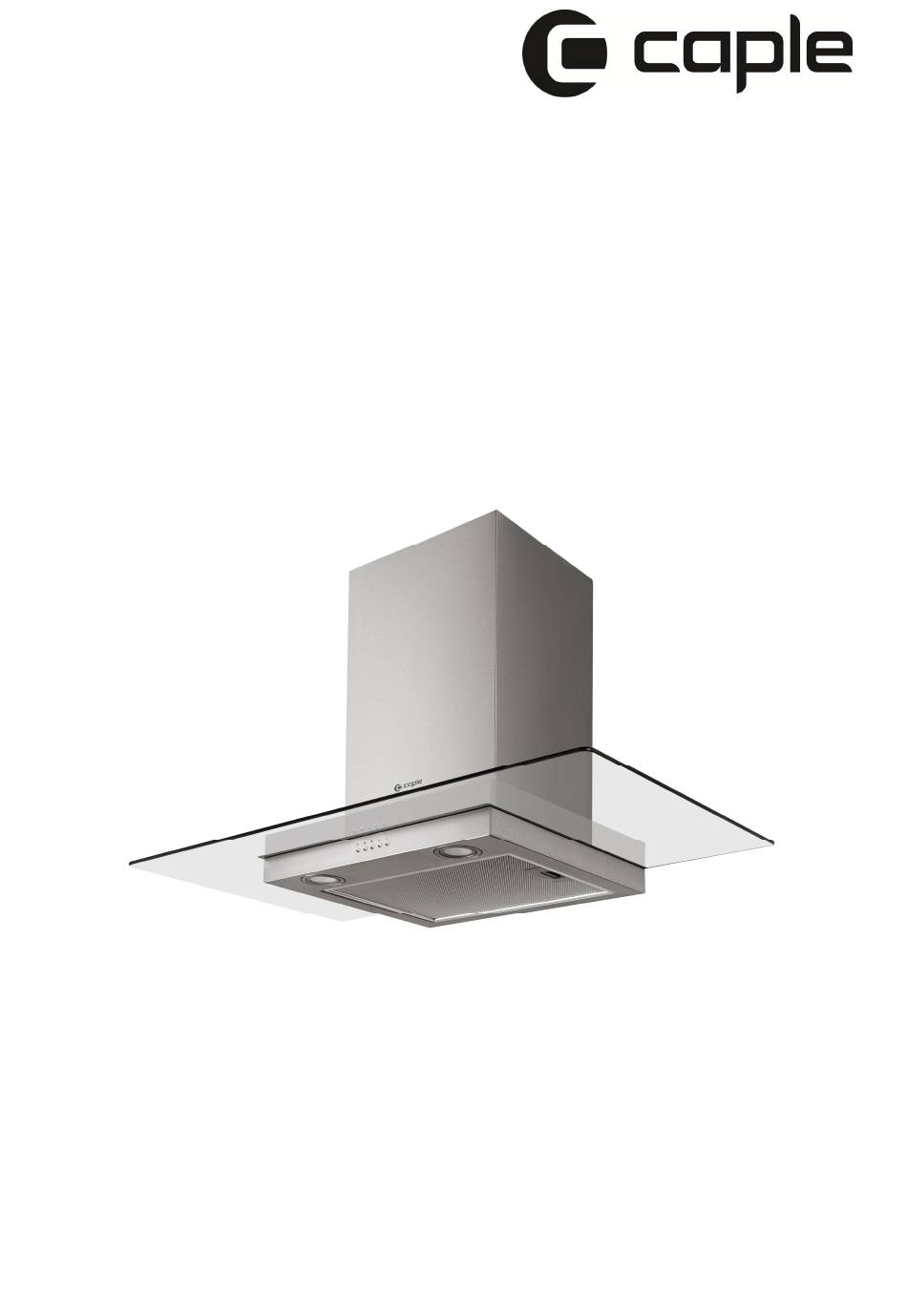

- Page 1 Instruction manual for chimney hood Instruction manual for chimney hood Instruction manual for chimney hood Instruction manual for chimney hood Model code: FGC620 FGC720 FGC920 Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Contents Introduction Safety precautions Installation Installing the charcoal filter Operation Care and maintenance Troubleshooting Guarantee Environmental protection... -
Page 3: Introduction
To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use..If treated with care, your Caple extractor should give you years of trouble-free use. - Page 4 A damaged supply cord must be replaced by qualified service personnel only. Please contact the Caple service department. If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
-
Page 5: Installation
Installation Prepare for the installation: a. If you have an outlet to the outside, your cooker hood can be connected as per the below picture by means of an extraction duct with an interior diameter of 150mm) b. Before installation, turn the unit off and unplug it from the outlet. c. - Page 6 Installation – ducted Attent Attention! Obs Attent Attent ion! Obs ion! Observe the warning ion! Obs erve the warning erve the warning concerning the operation of the appliance erve the warning concerning the operation of the appliance concerning the operation of the appliance concerning the operation of the appliance when air is discharged from the room.
- Page 7 Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below. Exhaust pipe Cooker hood Chimney installation. Chimney installation. Chimney installation. Chimney installation. Place the upper chimney into lower chimney, then pull the upper chimney upwards.
- Page 8 Slide the chimney to adjust the chimney height. When the height you require is reached, attach the fixing hole to the fixing screws as shown in below diagram. Upper chimney Lower chimney Drill 2×8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with the 2 screws provided.
- Page 9 Installation – recirculation mode Install the hood as shown in the previous section. If you do not have an outlet to the outside, the exhaust pipe is not required (as shown in the section “Installation - ducted”). A charcoal filter will be used to clean the air.
-
Page 10: Installing The Charcoal Filter
Installing the charcoal filter An activated charcoal filter can be used to trap odours. In order to install the charcoal filter, the grease filter should be detached first. Press the release button and pull it downward as shown below. Fit the activated charcoal filter onto the side of the motor and turn it in a clockwise direction to lock into place. -
Page 11: Operation
Operation 0 0 0 0 Off button Off button Off button Off button Switches the extraction fan off. Low Speed button Low Speed button Low Speed button Low Speed button Is suitable for simmering and cooking which does not produce much odour. -
Page 12: Care And Maintenance
Care and maintenance IMPORTANT: Before cleaning or maintenance please switch off the electricity supply and remove the plug from the wall. Regular Regular Regular Regular c c c c leaning leaning leaning leaning Use a soft cloth moistened with lukewarm mildly soapy water or household cleaning detergent. -
Page 13: Troubleshooting
‘Care and maintenance’ section. The filter requires cleaning performance is Replace the charcoal filter (if in not good recirculation mode) If the above table has not solved the problem please contact Caple Service by phone on 0844 800 3830 or by email service@caple.co.uk... -
Page 14: Guarantee
Guarantee Caple undertake that if within twelve months of the date of the purchase this appliance or any part thereof that is proved to be defective by reason only of faulty workmanship or materials, we will at our option repair or replace the same free of... -
Page 15: Environmental Protection
CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Fourth Way Avonmouth BS11 8DW www.caple.co.uk...
