Summary of Contents for Ozito DSG-172K
-
Page 2: Specifications

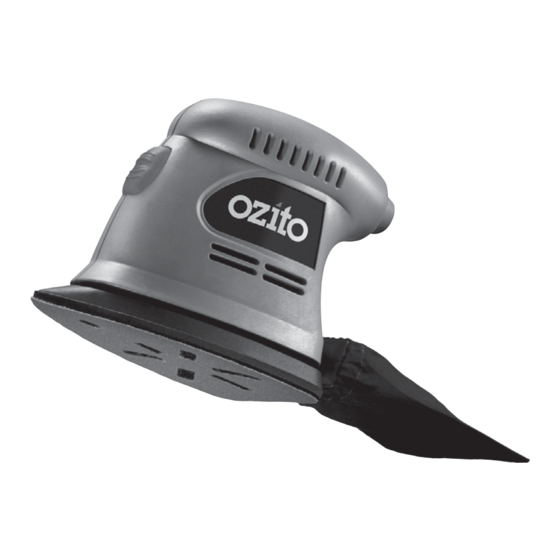

SPECIFICATIONS - MODEL NO. DSG-172K Motor: 180W Input: 230V ~ 50Hz No load speed: 14,000 opm Paper retention: Hook & loop Weight: 0.8kg KNOW YOUR PRODUCT 1. On/off switch 2. Palm grip 3. Dust bag 4. Hook and loop backing pad... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS……………………………………… Page 1 INTRODUCTION……………………………………….. Page 3 ELECTRICAL SAFETY…………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS………………… Page 4 DETAIL SANDER SAFETY WARNINGS……………… Page 6 PREPARATION & SETUP……………………………… Page 7 OPERATION……………………………………………. Page 10 MAINTENANCE………………………………………... Page 11 DESCRIPTION OF SYMBOLS………………………… Page 12 RELATED ACCESSORIES………………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Instructions
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Detail Sander Safety Warnings
DETAIL SANDER SAFETY WARNINGS • Hold power tool by insulated gripping surfaces, because the sanding pad may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Recommendation that the tool always be supplied via a residual current device with a rated residual current of 30 mA or less. -
Page 8: Preparation & Setup
PREPARATION & SETUP WARNING! Failure to unplug your detail sander could result in accidental starting causing possible serious injury. Sanding Sheet Installation Your detail sander is equipped with a hook and loop backing pad (4). This uses hook and loop technology, which firmly grips the sanding sheets when applied with moderate pressure. - Page 9 PREPARATION & SETUP (cont.) Sandpaper Selection Selecting the correct grit of sandpaper is an important step in achieving optimum results. Coarse grit will remove the most material. Finer grit will produce a smoother finish. The condition of the workpiece will determine the grit of the sandpaper to be used.
- Page 10 PREPARATION & SETUP (cont.) Precautions to Take When Sanding Paint CAUTION: A dust mask should be worn at all times. Any finish, such as paint or resin, may soften from frictional heat. This will cause the material to rapidly clog the sandpaper, rendering it useless. A heat gun will remove paint more effectively before sanding.
-
Page 11: Operation
OPERATION CAUTION: Before attempting to use your sander, be sure to familiarise yourself with all its operating features and safety requirements. WARNING! The sander should always be disconnected from the power supply when assembling parts, making adjustments, cleaning or when the tool is not in use. -
Page 12: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts Orbits per minute No load speed /min Revolutions or Warning reciprocation per minute Double insulated Regulator compliance mark Read instruction manual Do not expose to rain CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. -
Page 14: Related Accessories
RELATED ACCESSORIES The following accessories for the DSG-172K Detail Sander are available from your local Bunnings store: Product Code Description ACDSG001 10pc assorted sanding sheets SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. -
Page 15: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
