RANGE HOOD - User instructions
USA
HOTTE DE CUISINE - Notice d'utilisation
F
CAMPANA EXTRACTORA - Manual de utilización
E

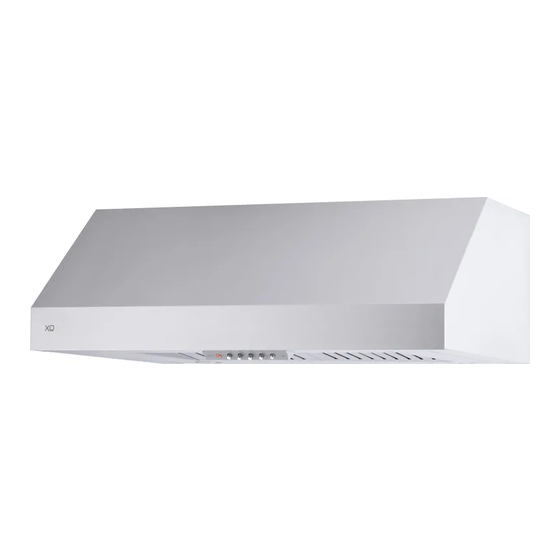

XOT30S
XOT36S
Advertisement
Table of Contents
Related Manuals for Xo XOT30S
Summary of Contents for Xo XOT30S
- Page 1 XOT30S XOT36S NEED HELP? Call our ventilation experts toll free al 800-966-8300 NEED HELP? Call our ventilation experts toll free al 800-966-8300 NEED HELP? Call our ventilation experts toll free al 800-966-8300 RANGE HOOD - User instructions HOTTE DE CUISINE - Notice d’utilisation...
- Page 2 The warranty is extended to the original purchaser for products purchased for ordinary home use in North America. Should you require service for your XO product call a product service specialist at 800.966.8300 What is not covered Improper Installation.
-
Page 3: Important Safety Instructions
ENGLISH IMPORTANT SAFETY INSTRUCTIONS FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference. -
Page 4: Installation Instructions
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. E. - Page 5 D. Ducted fans must always be vented to the outdoors. E. This unit must be grounded. WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DAN- GEROUS. A. Do not check filters with hood working. B.
-
Page 6: Duct Fittings
DUCT FITTINGS: Equivalent Total Duct Quantity Dimensions: Number Equivalent This Hood Must Use an Piece: Used: Length*: Length: 6" Round Duct. It Can Transition to 3-1/4" x 10" 1 ft. (per foot Round, straight or 3-1/4" x 12" Duct. lenhgth) 3-1/4"... -
Page 7: Install The Ductwork
WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape. - Page 8 PRODUCT DIMENSIONS AND CLEARANCE XOT30S - XOT36S: › Front of hood › Side of hood ��� �������� ��� ������ ��� › Top of hood › Mounting height and clearance: ��� ����������� ����������������� ��� - 8 -...
- Page 9 INSTALLATION INSTRUCTIONS INSTALLATION - VENTED TO THE OUTSIDE 1. ATTENTION! - Before carrying out assembly operations, open the packaging, take the hood and place it on a comfortable surface. - Remove the anti-grease filter/s (Fig.1A). A - If hood installation is used with the air outlet Fig.1B or Fig.1C, the wires set-up in the relevant fairleads must be released by pulling the lever outwards, as indicated in figure 2 - phase 1-2.
- Page 10 lowing the steps in reverse (Fig.2). In this way it will be easier to manoeuvre the unit. - If the appliance id to be mounted in DUCTING version, prepare the air evacuation hole. - It is recommended to use an air evacuation pipe with the same diameter as the air outlet flange.
- Page 11 Attention! This product envisions the air evacuation hole available in 2 different positions, which can be used according to your requirements; 1 – in the upper part of the hood Fig.3A. 2 – in the rear part of the hood Fig.3B. - The air evacuation flange is supplied with the rectangular shape X and circular shape Y (Fig.3).
- Page 12 • Version with air evacuation hole in the upper part of the hood (Fig.4A): This product is supplied with the air outlet in the upper part and the electric connection box positioned in the rear part of the hood, as indicated in figure 4B (see paragraph: connection to the electric power supply).
- Page 13 • Version with air evacuation hole in the rear part of the hood (Fig.5A): - If your requirements envision the use of the air outlet in the rear part of the hood (carry out all phases shown in figure 5B), remove the screws I (Fig.5A.1) that fix the motor bracket Y and turn the entire motor unit and position it as indicated in Fig.5A.2.
-
Page 14: Power Supply
POWER SUPPLY: IMPORTANT – (Please read carefully) WARNING: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances. -
Page 15: Connect Electrical
2. CONNECT ELECTRICAL: • Power Supply Connection For connection to the power supply refer to the following Fig.6: 1. Break and remove the small circular metal sheet positioned in the rear part of the hood, with the aid of a flat screw driver Fig.6.1. 2. - Page 16 OPTIONAL: the electric power supply box can be removed and fixed in the position indicated in Fig.7A. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PER- SONS, OBSERVE THE FOLLOWING Before connecting the appliance to the power supply network, the electric plant box must be positioned in the seat.
- Page 17 • The appliance must be installed at a minimum height of 27" from an electric cooker stove, or 32" from gas or combined cooker stoves. If a connection ductwork composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the range hood exhaust duct air to the same duct air used to exhaust hot air or fumes from other appliances other than electrical.
