Summary of Contents for A-Neuvideo ANI-0104POE

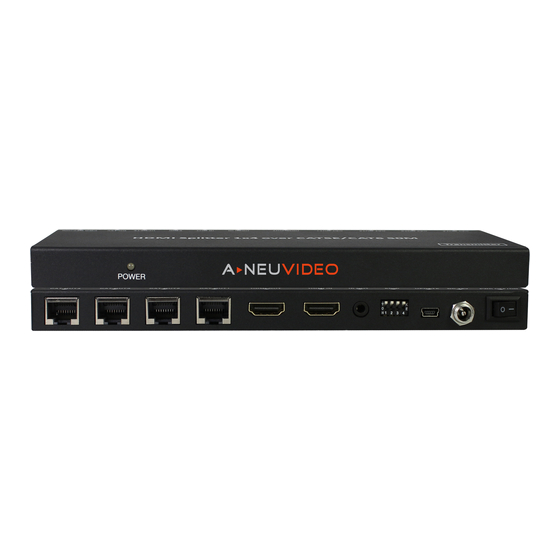

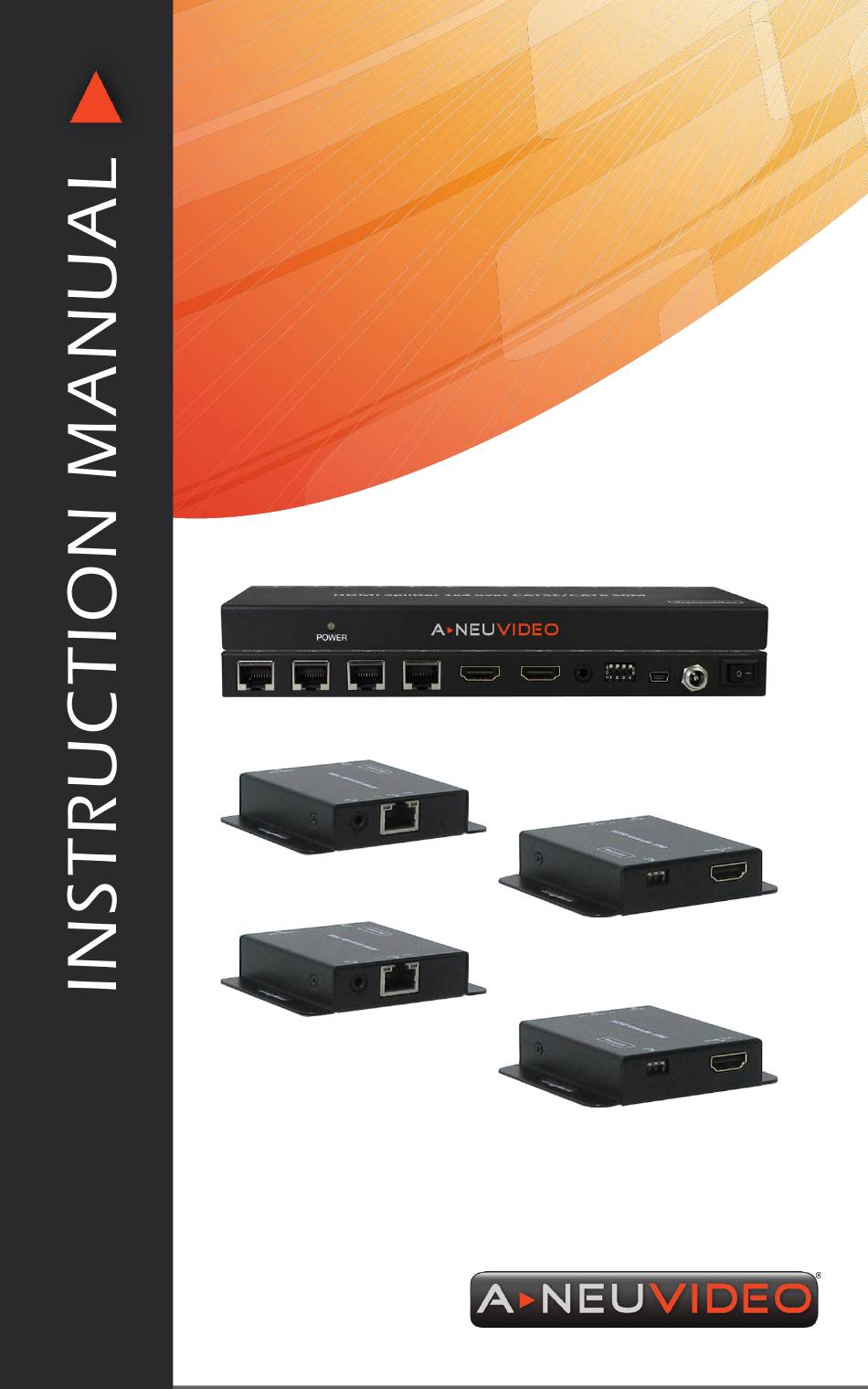

- Page 1 ANI-0104POE HDMI POE 1x4 Splitter Over CAT5e/6 Extender AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
APPLICATION EXAMPLE ....................11 INTRODUCTION The ANI-0104POE splits a single HDMI signal into five (5) separate signals (1 local, 4 remote), transmitting a 1080p (60Hz) signal to (4) monitors up to 150 ft. away using a CAT5e/6 cable. The ANI-0104POE allows for the video source to be in a secure, remote location for controlled access while still delivering a signal to devices in other areas. -
Page 5: Features / Package Contents
• UTP cable termination follows IEEE-568B standards • Supports EDID control via EDID selector The ANI-0104POE is NOT compatible with EZ-45 connectors PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: •... -
Page 6: Specifications
SPECIFICATIONS • HDMI Splitter Input Ports: • HDMI female port • Mini USB • HDMI Splitter Output Ports: • HDMI (Looping out) • (4) RJ-45 • IR out • Receiver Input Ports: • RJ-45 • IR in • Receiver Output Ports: •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Splitter q POWER LED: Illuminates when the device is connected to the power supply. w CAT OUT1-4: (4) RJ45 jacks provided for signal output. e HDMI OUT: Local HDMI loop output port. r HDMI IN: HDMI Input port. Connects the source with a HDMI cable. t IR OUT: Connects with the IR Blaster cable, included in the package, for IR signal transmission. - Page 8 OPERATION CONTROLS & FUNCTIONS receiver q EQ SWITCHER: HDMI Receiver equalizer switch. See the EQ description. w HDMI OUT: Connects with the HDMI input port of your display such as an HDTV. e IR IN: Connects to the IR Receiver for IR signal reception. Ensure that the remote being used is within the direct line-of-sight of the IR receiver.
-
Page 9: Edid Description
EDID Description EDID Control Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. - Page 10 EDID Description EDID TABLE: POSITION EDID DESCRIPTION POSITION EDID DESCRIPTION 1080p, 2CH AUDIO 3D, 1080p, HD AUDIO Copy EDID from the 1080p, DOLBY/DTS 5.1 Transmitter HDMI loop 1080p, HD AUDIO 1080p, 2CH AUDIO 1080i, 2CH AUDIO 1080p, 2CH AUDIO 1080i, DOLBY/DTS 5.1 1080i, 2CH AUDIO 1080i, HD AUDIO 1080i, 2CH AUDIO...
-
Page 11: Rx Equalizer
RX Equalizer RX Equalizer distance adjust If you see a flickering or blinking image on the display, adjust the EQ switch to improve the cable skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length. MIN stands for the weakest HDMI signal level for short transmission length. -
Page 12: Connect & Operate
CONNECT & OPERATE Wideband IR (30KHz---60KHz) introduction Control a local device (Blu-ray player or DVD player, etc) from a remote: Connect the IR Receiver to the receiver IR input port. The CAT output connector on the HDMI Splitter is connected via a CAT6 cable to a HDMI receiver. The IR Transmitter is connected to the HDMI Splitter IR output. -
Page 13: Application Example
Application Example 1. Connect a source (Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.) to the HDMI input on the Transmitting base unit. 2. Connect a display (HDTV, HD Projector, etc.) to the HDMI output on the Receiving unit. 3. - Page 14 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 16 Product. The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein.
