Installation Guide
and Users Manual
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference

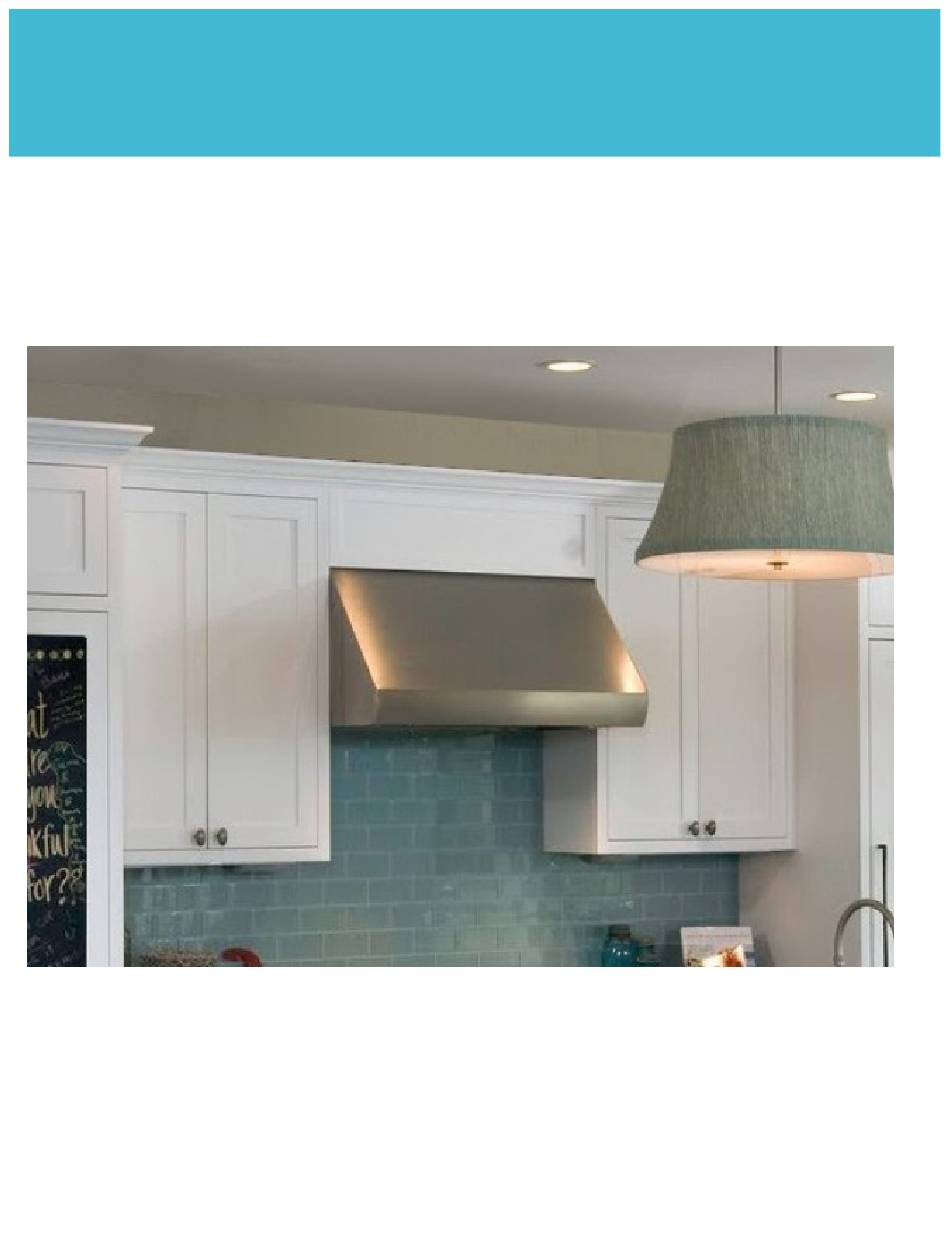

Under Cabinet / Wall Mount Range Hood
VICTORY
Professional Range Hood
Tofino
Model:
available sizes: 30", 36", 42", 48",54",60"
Rev. 3067u.4a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Victory tofino
- Page 1 Installation Guide and Users Manual VICTORY Professional Range Hood IMPORTANT: Read and save these instructions. Tofino Model: NOTICE: available sizes: 30”, 36”, 42”, 48”,54”,60” Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Under Cabinet / Wall Mount Range Hood...
- Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
- Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........14 Parts supplied...........4 Use and care information.......15 Venting requirements........5 Specifications..........15 Mount heights & clearance......5-6 Measurements & Diagrams......16-22 MAINTENANCE Calculating vent system length.......6 Venting methods..........7 Cleaning..........23 Electrical requirements........8 Replacing the filter & light bulb....23-24 WARRANTY Preparation............9 Installation..........10-11... -
Page 6: Parts Supplied
Parts supplied: 8” diameter round Ducting Transition Hood-mounting Bracket (Qty: 2PCS) (Optional) Single-piece Chimney Grease Tunnel (Optional) Baffle Filter Spacer (for some hoods) Baffle Filters Baffle Filters Page 4... - Page 7 Victory Tofino 60” comes with double blower and 2 x 8” round ducts...
-
Page 8: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” or 6” laundry-type wall Cabinet or Single- caps. -
Page 9: Calculating Vent System Length
IMPORTANT: • A minimum of 8” round (standard for this range hood) or 6 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 10: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 11: Electrical Requirements
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and ordinances. -
Page 12: Preparation
Preparation WARNING Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (please refer the Require three or more person to move and product label for the suitable voltage of this unit) and turn on install this range hood. -
Page 13: Installation
Installation Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 27” to 32” is recommended*. *Due to different ceiling height configurations, recommend- ed height may not be applicable. 1. - Page 14 Installation (Continued) 5. Store excess wires in the wiring box. 6. OPTIONAL: If you purchased a single-piece chimney cover, attach it to the hood in this step. 7. Drop oil tunnel into recess support near rear of hood. Refer to Figure 9. 8.
-
Page 15: Range Hood Operations
Range Hood Operations This range hood is equipped with rotary mechanical control switches SWITCHING THE LIGHTS ON/OFF: • Rotate the knob clocwise to turn the lights ON. This hood is equiped with dimmable lights. To dim the lights continue to rotate the switch clockwise. To switch the lights OFF, rotate the knob counterclockwise. CAUTION: DO NOT touch the lights until switched OFF and cooled. -
Page 16: Troubleshooting
Troubleshooting 1. If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 17: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. •... - Page 18 Range Hood Assembly: Description Quantity Hood Body GU10 Light Rotary switche Oil Tunnel Blower Assembly (Motor, Fan Blade, Protective Grill and Squirrel Cage) 1 Stainless Steel Spacer ( optional ) 2-30&42” Page 16...
- Page 19 Back-vented option • This hood comes with a special plate allowing the blower to exhaust at the back ( rear exhaust). • Please see the picture below. Wiring digram speed 1 motor lights 120v switch switch speed 2 speed 3 ground motor speed 4...
- Page 20 Blower Assembly: Description Description 4.1 Bolts 4.5 Motor 4.2 Air Flow Grill 4.6 Right Impeller 4.3 Left Locknut 4.7 Right Locknut 4.4 Left Impeller 4.8 Blower casing Optional Single-Piece Chimney (Sold Separately): Description Description Screws (3/16” x 3/8”) Single-Piece Chimney Cover (Size Varies) Page 18...
- Page 21 Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior stainless steel surface: •...
- Page 22 Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. FIVE YEARS Parts Warranty: For FIVE YEARS from the date of original purchase, your VICTORY reseller will provide free of charge, non-con- sumable replacement parts or components that failed due to manufacturing defects. Subject to the conditions and limi- tations set forth below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
- Page 23 After Installation: NO exchange or refund. Contact Us If you need any assistance, please contact your VICTORY reseller or send us an email. Please have your order number and model of the range hood ready. This information will help them better respond to your request.
- Page 24 VICTORY range hoods for professionals 7272 Buller Ave Burnaby BC V5J4S3 Canada www.KitchenHoods.ca...
