SB-5658K
1x8 HDMI 4K2K Distribution Amplifier with Scaler
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
Advertisement
Table of Contents
Summary of Contents for Shinybow USA SB-5658K

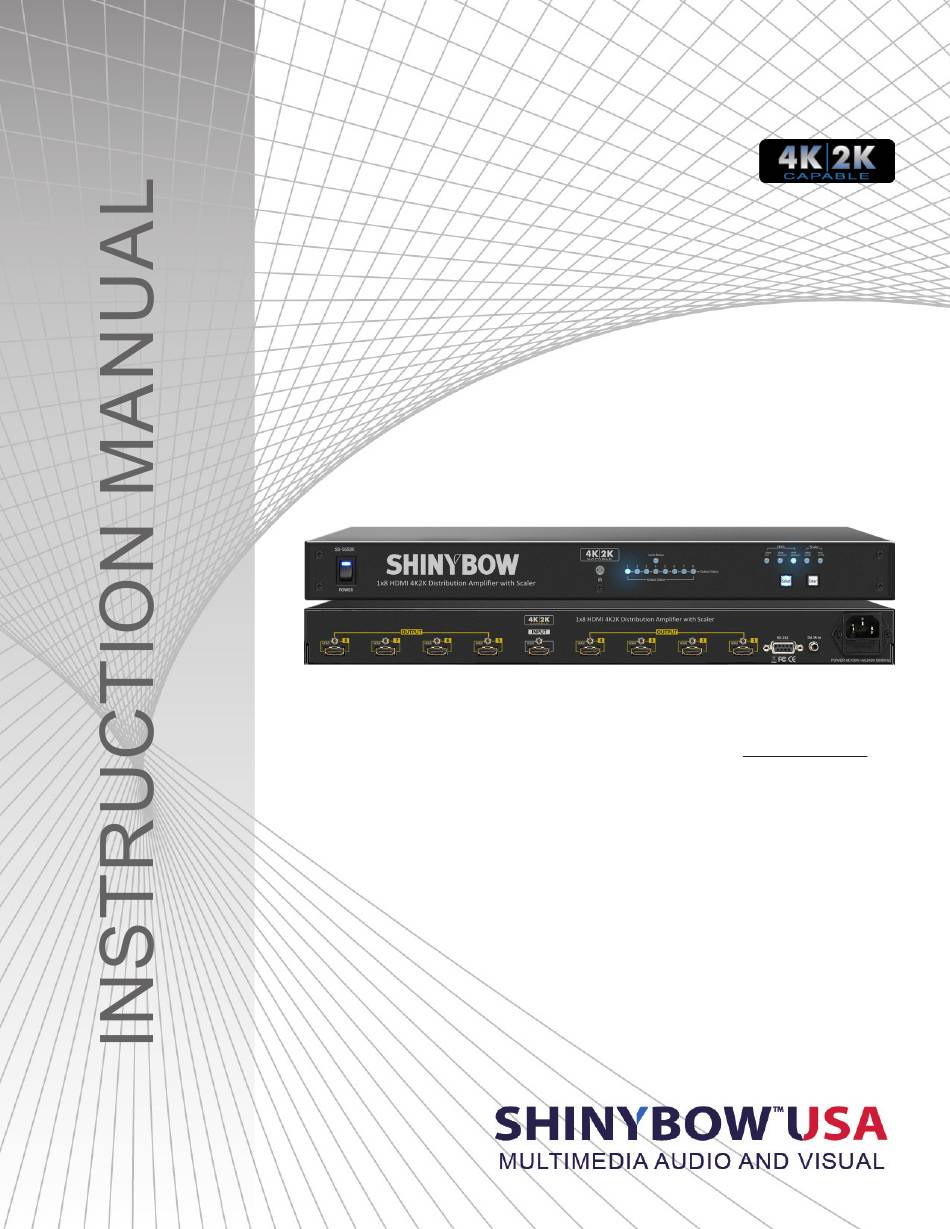

- Page 1 SB-5658K 1x8 HDMI 4K2K Distribution Amplifier with Scaler IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
HDMI-4K2K Distribution Amplifier series Thank you for purchasing the SB-5658K HDMI Distribution Amplifier with Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 1x8 HDMI 4K2K Distribution Amplifier. -
Page 4: Features & Contents
The Distributor will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components: • SB-5658K Matrix Switcher • RS-232 V2.0 Protocol Instructions • IR Remote Control (SW-5658K) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI DA: (1) Input to (8) Outputs HDMI Matrix Switcher • HDMI Support: HDMI 4K2K, 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 2.2 Compliant, CEC Compliant • Video Bandwidth: Clock Data Rates: 300Mhz •... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. IR SENSOR: The IR sensor receives IR commands from the supplied remote controller or third party IR emitter 2. INPUT STATUS DISPLAY: Input source LEDs illuminate blue to indicate that a video source is present on that input 3. -
Page 7: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a AC power plug input Connector Type: IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity. -
Page 8: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 9: Edid Functions
EDID FUNCTION EMBEDDED EDID & SCALER MODES FOR HDMI DISTRIBUTION AMPLIFIER EDID / SCALER SETUP To Change The EDID & Scaler Modes The display will show the currently selected EDID mode Step 1. Press SELECT button The button will flash blue and the display will show the current Embedded EDID & Scaler Status. - Page 10 EDID FUNCTION EDID MODE RESOLUTION & MULTI-CHANNEL AUDIO FORMATS: EDID MODES: RESOLUTIONS: MULTI-CHANNEL FORMATS: Mode # 1 1080p@60Hz (NATIVE), 1080p@50Hz, 1080p@30Hz, LPCM-2ch, 32kHz ~ 48kHz, 16/20/24 bits 1080p@25Hz,1080p@24Hz, 1080i@60Hz, 1280x720@60Hz, 720p@60Hz, 720i@60, 480p@60 Mode # 2 1080p@60Hz (NATIVE), 1080p@50Hz, 1080p@30Hz, LPCM-8ch, 32kHz ~ 192kHz, 16/20/24 bits 1080p@25Hz, 1080p@24Hz, 1080i@60Hz, 1280x720@60Hz, AC-3 6ch, 32kHz ~ 192kHz, 640kHz...
-
Page 11: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 12: Typical Application
INSTALLING DIAGRAM Samples Connection: 1. Using the external IR to control the SB-5658K distributor via PC and SB-100 IR receiver to transmit the SB-5658K’s IR signal. 2. Using a Mini-USB update to update the distributor via a PC. 3. Using the press buttons to select the Embedded EDID modes or Scaler modes to control the HDMI distribution amplifier SB-5658K via SELECT and ENTER press buttons. -
Page 13: Rs-232 Protocol & Commands
RS-232 SERIAL INTERFACE PROTOCOL AND COMMAND RS-232 SERIAL INTERFACE CONNECT RS-232 CONFIGURATION RS-232 cable is a straight thru cable and not null-modem Definition Definition SB Device BAUD RATE: 9600, 8, n, 1 FORMAT: [ Command ] [ ] [ Data ] [ ; ] 1. - Page 14 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 15 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
