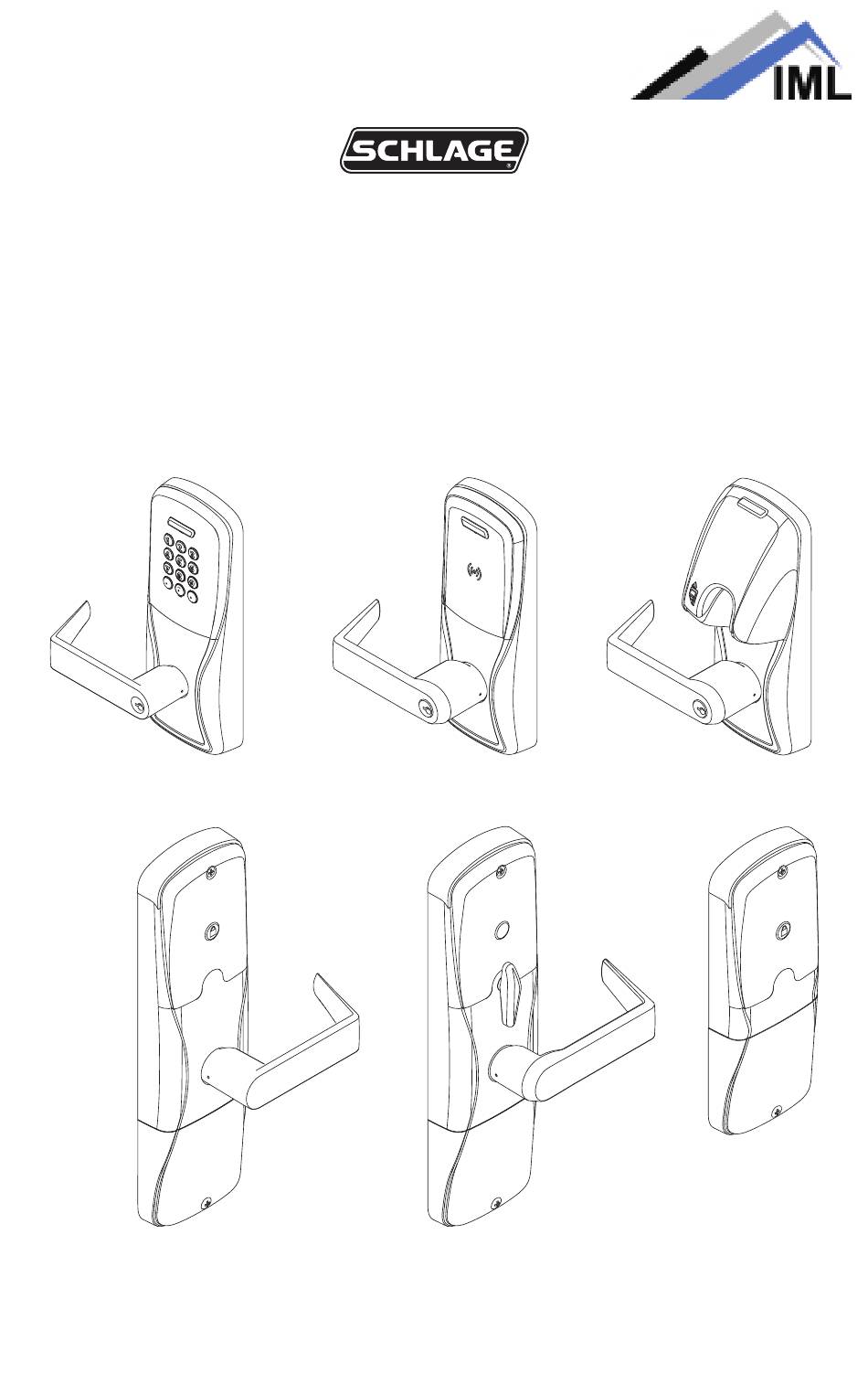

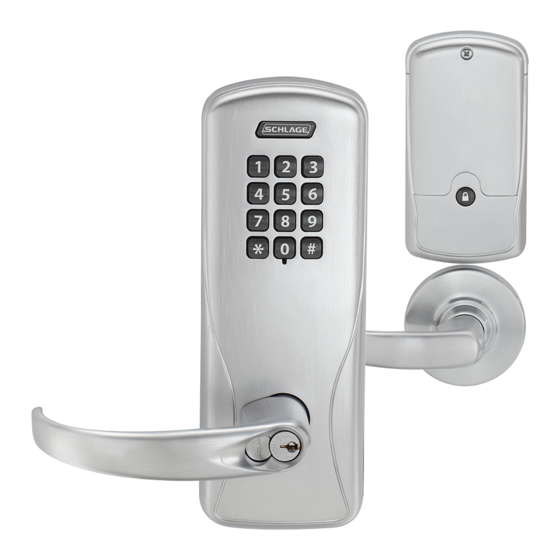

- Page 1 P516-129 AD-200 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR ADAPTABLE SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.
-
Page 2: Table Of Contents
Mechanical Testing ........................9 Electronic Testing ........................9 Resetting To Factory Defaults ...................... 10 LED Reference ..........................10 Schlage Button ........................10 Optional Inside Push Button (IPB) ................... 10 Batteries ............................. 11 Installing or Replacing Batteries ....................11 Low Battery Indications ......................11 Battery Failure Modes ...................... -
Page 3: Overview
AD-200 Offline Lock User Guide OVERVIEW The Schlage AD-200 is an off-line electronic lock in the AD-Series product line. • May be powered by batteries or connected to external power using a UL 294 Listed power supply capable of sourcing at least 250 mA @ 12 to 24 VDC. See Batteries on page 11, or External Power Supply on page 12 for more information. -
Page 4: Getting Started
The Handheld Device is used for programming and setup only. The Handheld Device (HHD) is used to configure locks. This includes transferring data files between the access control software and locks. For information about the HHD, see the Schlage Utility Software User Guide. -
Page 5: Construction Access Mode
PIN of 13579, which can be used for installation, testing and construction access. To test, enter default PIN. The Schlage button will blink and the lock will unlock. The default PIN is automatically deleted when a new programming credential is created, or the lock is programmed with... -
Page 6: Manual Lock Programming
AD-200 Offline Lock User Guide MANUAL LOCK PROGRAMMING TIPS Left LED Right LED The Schlage button has two different LEDs, one on the left and one on the right. Press the Schlage button to activate the keypad backlight. All locks have a default programming code of 97531. - Page 7 AD-200 Offline Lock User Guide Wait For Function Press/Present Confirmation Wait for Programming Card [Programming Code] Change to stop flashing [Programming Code] New [Programming Code] between each New [Programming Code] step. Wait for Programming Card [Programming Code] Change to stop flashing Programming Card between each New Programming Card...
-
Page 8: Using The Lock
AD-200 Offline Lock User Guide Wait For Function Press/Present Confirmation Programming Card [Programming Code] Wait for Add Freeze +PIN to stop flashing Credential New [PIN] between each New Card (for PIN only) step. add another credential to finish Programming Card [Programming Code] Wait for Add Pass Through... -
Page 9: Error Codes
2. Press the Schlage button one time. The keypad backlight will light blue. 3. For locks with a card reader, present a credential to the reader. The lock will beep and the Schlage button will light green. The Schlage button will light red when the credential is not valid for the lock. -
Page 10: Resetting To Factory Defaults
4. Press and release the inside push button (IPB) three (3) times within 10 seconds. One beep will sound and one red blink will occur with each press. 5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset. -
Page 11: Batteries
Valid credentials do not grant access Mechanical override key must be used to unlock lock Battery Failure Modes ÎThe battery failure is set using the Handheld Device. See the Schlage Utility Software User Guide for more information. Mode Description Fail As-Is (default) Lock remains in current state until batteries are replaced. -
Page 12: External Power Supply
250 mA @ 12 to 24 VDC. ÎWhen powered with external power supply, the lock will always fail “As-Is” if power is lost. Polarity Required TROUBLESHOOTING For troubleshooting, visit to www.schlage.com/support. © 2010 Ingersoll-Rand Company P516-129 ENG online Rev. 03/10-b...
