Summary of Contents for Arte Forma Audio Due Votle

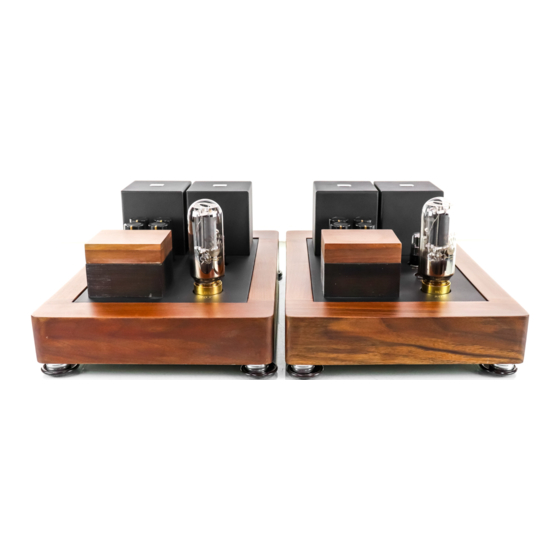

- Page 1 Arte Forma Audio The Art of Audio From Formosa Due Votle Power Amplifier Owner’s Manual...
-
Page 2: Table Of Contents
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Table of Contents Introduction ………………………………..3 Package Contents …………………….……. 4 Protection Systems …………..……………. 5 Installation, Use & Care ………..…………. 6 Signal & Power Connections …………….. 8 Specifications ………………………….…… 10 Warranty Contract……………………… … 11... -
Page 3: Introduction
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Introduction Arte Forma Audio Welcome to join “group” and appreciate on your wise choice our music gear. With its combination of features such as precision electronic circuitry, exceptional efficiency, and accurately machined... -
Page 4: Package Contents
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Package Contents Ensure that all of the auxiliary components listed below are enclosed within the shipping carton and accessory box. Refer to the illustrations and verify that the proper components are included. -
Page 5: Protection Systems
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Protection Systems Due Volte Power Amplifier is equipped with fuses for protection against excessive AC current draw; however, since no protection circuitry or system can completely protect a product from every electrical hazard, certain precautions should be observed. -
Page 6: Installation, Use & Care
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Installation, Use & Care Locate the amplifier as close as possible to its final installation point. Allow access to the rear panel for making connections. Typical installations allow the amplifier to be rigidly coupled to a support structure or floor via optional spiked coupling supports that are available separately. - Page 7 Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Installation, Use & Care Due Volte Power Amplifier • The must not be modified in any way, other Arte Forma Audio than according to official service bulletins from Otherwise, the factory warranty will be immediately voided.
-
Page 8: Signal & Power Connections
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Signal & Power Connections S1:POWER SWITCH(FRONT OFF/REAR ON) V1:805A OUTPUT TUBE V2:6L6G POWER TUBE V3:6SN7 SIGNAL TUBE www.arteformaaudio.com.tw... - Page 9 Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Signal & Power Connections Back www.arteformaaudio.com.tw...
-
Page 10: Specifications
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Specifications • Output Power, Continuous RMS watts, both channels : Class A, 38 watts @ 8 ohms • Peak Output Current : 4 amps • Frequency Response : 10 Hz – 35 kHz, -3 dB @ 8 ohms •... -
Page 11: Warranty Contract
Arte Forma Audio Due Volte Power Amplifier Owner’s Manual Warranty Contract Arte Forma INC warrants this product to be free from defects under normal uses for a period of one (1) year from the date of purchase ( based on a proof-of –purchase receipt or invoice ). - Page 12 Arte Forma Audio www.arteformaaudio.com.tw...
