Model Number: GSF2520KL (1401 2021)

TER 60K BTU PRO 4+1 Burner grill

FOR CUSTOMER SERVICE:

CALL 1-877-630-5396 (TOLL-FREE)

10:00 A.M. – 7:00 P.M. (EST),

MONDAY-FRIDAY

SAVE THIESE INSTRUCTIONS FOR FUTURE USE.

IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE,

GIVE THIS MANUAL TO HIM OR HER FOR FUTURE USE.

- 1 -

Table of Contents

Need help?

Do you have a question about the GSF2520KL and is the answer not in the manual?

Questions and answers

Summary of Contents for Tera Gear GSF2520KL

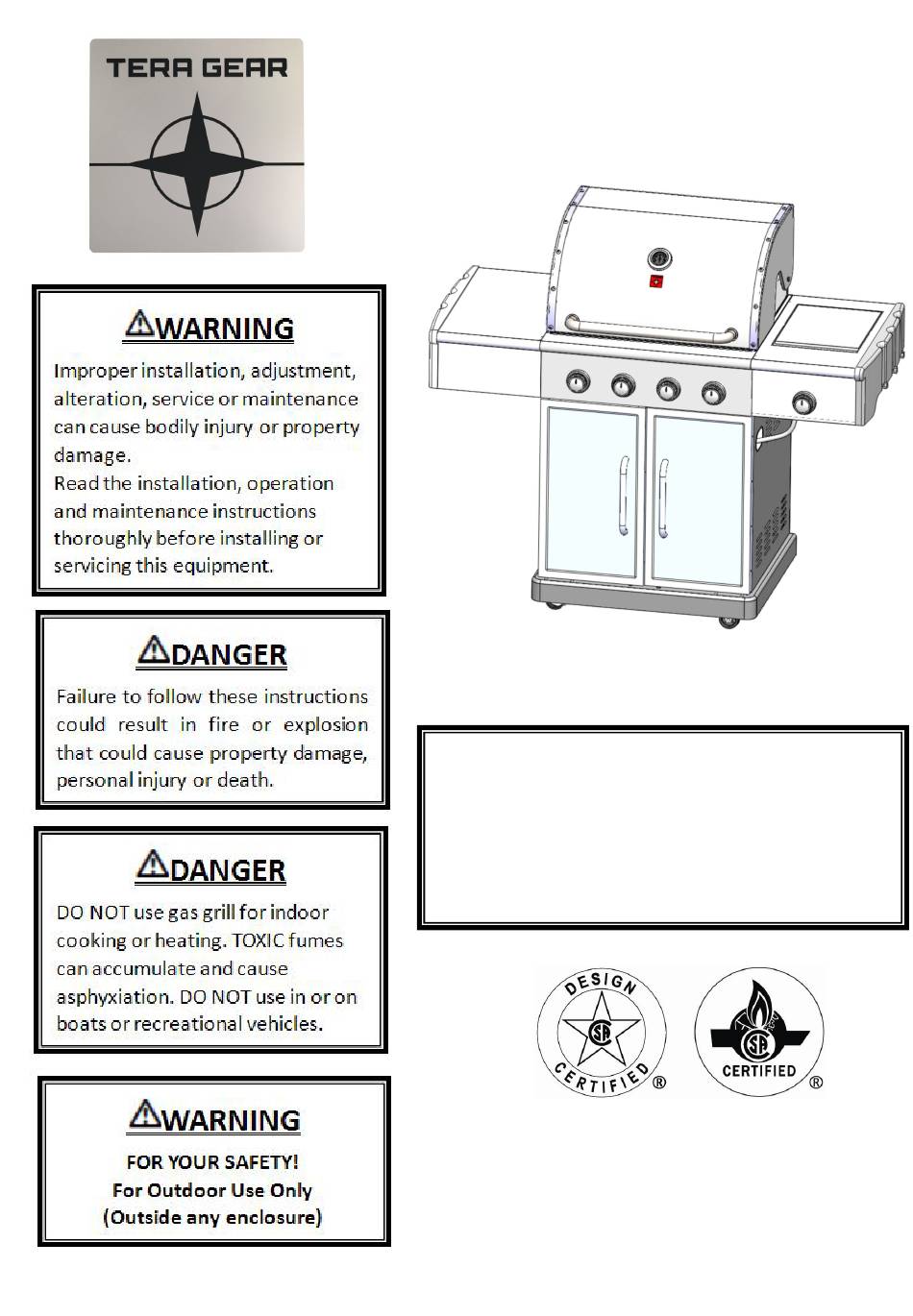

Page 1 Model Number: GSF2520KL (1401 2021) TER 60K BTU PRO 4+1 Burner grill FOR CUSTOMER SERVICE: CALL 1-877-630-5396 (TOLL-FREE) 10:00 A.M. – 7:00 P.M. (EST), MONDAY-FRIDAY SAVE THIESE INSTRUCTIONS FOR FUTURE USE. IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER FOR FUTURE USE.
Page 2 Grill Operation 1-2-3 Before Grilling Step 1 Keep your grill a safe distance away from your property.* Step 2 Always perform a Leak Test on all connections and hoses. * Step 3 Keep children away from the grill. During Grilling (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 First open lid and turn gas tank on slowly.
Page 3: Table Of Contents
Table of Contents For Your Safety.........................4 Illustrated Parts List .........................6 Hardware List...........................7 Assembly Instructions…..………………..................7 Operating Your Grill........................12 Connecting & Disconnecting Gas Cylinder................13 Checking for Leaks........................14 Lighting Your Grill........................15 Excess flow safety valve reset procedure................16 Care and Maintenance......................17 Troubleshooting........................18 Warranty Program........................20 - 3 -...
Page 4: For Your Safety
For Your Safety Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill.
Page 5 WARNING Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes). Always confirm that this grill is not positioned under the overhang of a house, a garage or other structure before lighting it. An overhang will serve to deflect flare-ups and radiated heat into the structure itself, which could result in a fire.
Page 6: Illustrated Parts List
Illustrated Parts List Part Description (QTY) Part Description (QTY) Part Description (QTY) Warming Rack………….1PCS Left side panel…....1PCS Grease tray…………….1PCS Cooking Grid…………..2PCS Structure Tank support....2PCS Insulator……………1PCS Heat plate…..….……..4PCS Cart base…..……………1PCS Lower cart front beam…1PCS Body Assembly…….…1 PCS Tank stopper….…………1PCS Right side panel .………..1PCS Left Side Shelf decorative Side burner Grid…………1PCS Back panel………………1PCS...
Page 7: Hardware List
Hardware List AAA:50PCS BBB:46PCS CCC:46PCS DDD:8PCS EEE:6PCS FFF:6PCS Bolt(M4X12) GGG:4PCS HHH:1PCS Screwdriver Hardware listed above is not scaled to exact size. (A screwdriver is required for assembly and is included for your convenience). Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are secure.
Page 8 Step 2 (a) Align the hole on the front middle side of cart base with the hole on the door magnet (AA). Insert an M6 bolt (AAA) into each pre-drilled hole and tighten the bolts by hand. Step 3 (a) Loosen the pre-installed bolts on the cart base (M). (b) Align the holes on the cart base with holes on the left side panel (K), then insert the pre-installed bolts into each pre-drilled holes and tighten the bolts by hand.
Page 9 Step 7 (a) Align the holes on the left door (I) with the holes on the door handle (DD), then then insert one M6X15 bolt (AAA), one spring washer(CCC) and one spring washer (BBB) each pre-drilled holes (b) Repeat the procedure to assemble to the right door handle.
Page 10 Step 11 (a) Loosen the three pre-installed bolts on the left side of the body(D) allow 1/4 bolt’s length to extend, align the holes on the left side shelf (F) with the extended bolts, and then push down the left side shelf until it locks into place, tighten the bolt by hand until secure.
Page 11 Step 14 (a) Place the heating plates (C) upon each burner. (b) Put the cooking grids (B) upon the heating plates. (c) Place the warming rack (A) on the warming rack support on the side walls of the fire box. Step 15 (a) Loose the three pre-installed bolts on grease pan (U) and leave 1/4 of the bolt's length extending from grease pan.
Page 12: Operating Your Grill
Step 18 (a) Place the cylinder upon the tank seat of the Cart base. (b) Connect the regulator to the cylinder by turning it clockwise. (c) Screw the retainer wire until secure. Fully Assembled View Operating Your Grill CAUTION Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment.
Page 13: Connecting & Disconnecting Gas Cylinder
Only the pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used. Replacement pressure regulators and hose assembly must be those specified by the outdoor cooking gas appliance manufacturer. Use only 20-pound cylinders equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances. The cylinder must include a collar to protect the cylinder valve.
Page 14: Checking For Leaks
Checking for Leaks Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water. Make sure control knobs are in the “OFF” position. Spray some solution on the tank valve up to the regulator connection. (See diagram to right.) Inspect the solution at the connections for bubbles.
Page 15: Lighting Your Grill
gas turned on “HIGH”. This will “heat clean” the internal parts, dissipate odor from the manufacturing process and painted finish. 4. Clean the grill after each use. DO NOT use abrasive or flammable cleaners. This may damage parts of the grill and cause a fire.
Page 16: Excess Flow Safety Valve Reset Procedure
Flare-Ups “Flare-ups” sometimes occur when food drippings fall onto the hot heat distribution plate or burners and ignite. Some flaring is normal and desirable as it helps impart the unique flavors associated with grilled foods. Controlling the intensity of the flare-ups is necessary, however, in order to avoid burned or unevenly cooked foods and to prevent the possibility of accidental fire.
Page 17: Care And Maintenance
Care and Maintenance IMPORTANT Always allow to completely cool off before covering your grill to prevent corrosion from condensation. CAUTION All cleaning and maintenance should be done when the grill is cool, with the fuel supply turned off at the control dial and the propane cylinder disconnected.
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible cause Prevention/Cure Burner doesn't light using knobs or Wires or electrode is covered by Clean wire or electrode using a igniter cooking residue cloth and rubbing alcohol Electrode and burners are wet Wipe with dry cloth Ignition electrode cracked or Replace electrode broken;...
Page 19 Excessive cooking temperature Adjust (lower) temperature Persistent grease fire Grease trapped between burner Turn knobs to OFF. Turn gas OFF at and food on the grate propane tank. Leave lid in closed position and let fire burn out. After grill cools, remove and clean all parts Flashback(fire in burner tubes) Burners or tubes are blocked...
Page 20: Warranty Program
Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If unable to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase with a valid proof of purchase.
