- Page 1 WASHING MACHINE User Manual Model Numbers: W612F2B W612F2S W612F2W...
- Page 2 Welcome 2 YEAR Safety Instructions Your Washing Machine GUARANTEE NOW Technical Specifi cation SERVIS.CO.UK 0800 0124382 Installation Parts & Labour for 2 years. Go to www.servis.co.uk Usage for more information Maintenance Clothing Care Troubleshooting Guarantee Index T: 0800 0124 382...
- Page 3 Fill hose WARRANTY Servis provides you with a guarantee which will protect you should your Washing Machine develop an electrical or mechanical fault during the guarantee period. To ensure that you get a Fluid detergent level plate prompt and efficient service, please register your Washing Machine immediately.
- Page 4 Before connecting your Washing Machine, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a Do not make any alterations to your Washing Machine, unless authorised to do so by Servis. qualified electrician.

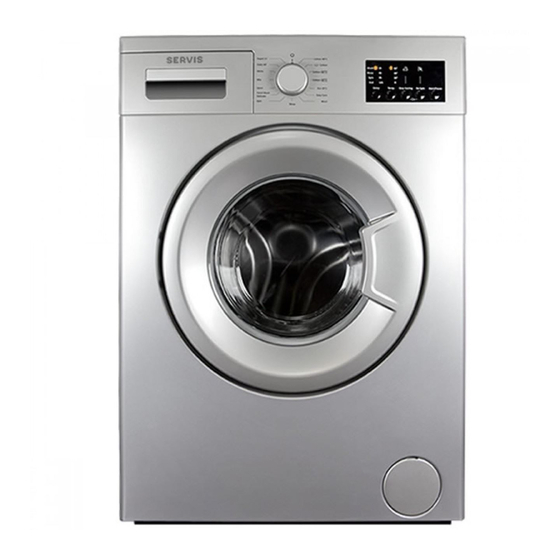

- Page 5 YOUR WASHING MACHINE FRONT VIEW REAR VIEW Detergent drawer Programme dial Drain hose Control panel Cold water inlet Door handle Transit bolts Pump filter cover Detergent drawer; Allows you to insert detergent, fabric conditioner and starch. Programme dial; Allows you to select the programme for your wash. Drain hose;...
- Page 6 YOUR WASHING MACHINE TECHNICAL SPECIFICATION DETERGENT DRAWER TECHNICAL SPECIFICATION Compartment Main Wash Voltage V/Frequency (Hz) 220-240V/50Hz Compartment Electrical Current (A) Power Rating (W) 2100 Water Consumption (l/Cycle) Energy Consumption (Cotton 60 Partial Load) 0.74 (kWh/Cycle) Pre-Wash Compartment Unpacked Dimensions (H x W x D) (cm) 84.5 x 59.7 x 52.7 Gross Weight (kg) 71.5...
- Page 7 INSTALLATION Pull out the remaining plastic section of each transit bolt by hand. This will require a INSTALLATION REQUIREMENTS reasonable amount of force (fig 5c). Insert the blanking caps (4 off): Push the cap into the hole until the four connectors click into place.
- Page 8 INSTALLATION ADJUSTING THE FEET WATER SUPPLY CONNECTION For safe operation, it is important that your Washing Machine is level and securely positioned on Your Washing Machine uses an energy efficient cold fill system, which means that only the all four feet. Incorrect installation may cause the Washing Machine to vibrate and increase your water required to wash the laundry is heated.
- Page 9 INSTALLATION WATER SUPPLY CONNECTION Screw the straight end of the hose clockwise to a 19mm (3/4’’) cold water tap until hand tight (fig 8). Take care not to trap or kink the hose. a: The drain hose can be connected Max height 80cm to a standpipe, as shown.
- Page 10 INSTALLATION ELECTRICAL CONNECTION The cold water pressure for a normal household system ranges from between 0.1 to 1 Mpa. Your Washing Machine will run at optimum efficiency in this range. Your Washing Machine requires a 220-240V, 50Hz mains supply. Do not use any other supply.
- Page 11 USAGE CONTROL PANEL OVERVIEW RUNNING YOUR FIRST WASH Before using your Washing Machine for the first time; check that: The transit bolts have been removed. Your Washing Machine has been correctly connected to your water supply and your water drainage system. Your Washing Machine has been connected to an appropriate mains power supply and is switched on at the socket.
- Page 12 USAGE Close zips and fasten any hooks and eyes. Gently push the door until it clicks shut. Check that no items of clothing are trapped Items such as trousers, t-shirts, sweat shirts and knitted garments should be turned inside between the rubber seal and the door. out.
- Page 13 USAGE It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the Fabric Conditioners and Liquid Starch: fluid detergent level plate into the guides in compartment II of the detergent drawer (fig 11). Use the lines on the plate as a guide to fill the drawer to the required level.
- Page 14 USAGE Starting a Programme: Programme 15 (Super Rapid 15 Min): The 15-minute wash is only intended for small loads and quick refreshes of laundry that is only To start the selected programme, press the Programme Start/Pause button. very slightly dirty; ideal for the freshening up of a school uniform for example. Indicator Lamps: Heavily Soiled Washing: Recommended Programmes: 1, 5 and 6 These programmes are ideal for washing heavily soiled cottons and synthetics and are capable...
- Page 15 USAGE Programme Modes: Programme Settings and Wash Cycles Programme Name Max Dry Wash Type Wash Type Wash Time Wash Time Programme Laundry Type Pre-Wash Temp Rinse Usable Load (kg) (Min) (Min) Detergent Cotton 90 Heavy Soiled Cotton and Linen Textiles Cotton Day to Day Cotton and Linen Textiles...
- Page 16 USAGE Additional Functions: It can often be difficult to know which temperature setting is best. To help with this, we have provided a table with common temperatures and their typical uses. To allow you to get the best washing results possible, your Washing Machine offers the following additional functions to complement the selected programme.
- Page 17 USAGE Removing Your Laundry: Power Supply Failure: If a power cut should occur while a programme is running, the programme will continue from the Turn the programme selection dial to the off (0) position. Your Washing Machine door lock same point once power is restored. This will not cause any harm to your Washing Machine or will automatically be released approximately 2 minutes after the programme has finished.
- Page 18 MAINTENANCE GENERAL MAINTENANCE Filters: From time to time it may be necessary to carry out some routine maintenance of your Washing Water Inlet Filters: Machine to ensure that it operates as intended. Before cleaning your Washing Machine: Water inlet filters prevent dirt and foreign materials from entering your machine. It is Turn your mains power supply off and remove the plug from the socket.
- Page 19 MAINTENANCE GENERAL MAINTENANCE Cleaning the Pump Filter: Clean the filter thoroughly with a soft brush, wash with soapy water and rinse thoroughly. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine. Pull the top of the cover forwards using the finger groove, until the Re-insert the filter by gently pushing it back into place.
- Page 20 MAINTENANCE Remove any foreign materials from the filter with a soft brush. Move the pump by hand to check that it rotates freely. Clean the pump with a soft brush. After Cleaning: Re-fit the filter by inserting it and turning clockwise. Close the filter cover.
- Page 21 CLOTHING CARE SIPHON PLUG The siphon plug is located in the compartment of the detergent drawer. Remove the detergent drawer fully and pull the plug upwards. Clean the plug with a soft brush and replace, checking that it is firmly in position. GENERAL WASHING INSTRUCTIONS Drip Dry Dry Flat...
- Page 22 CLOTHING CARE STAIN REMOVAL INFORMATION If can often be hard to know the best way to treat a stubborn stain. To help with this we’ve Mustard: provided you with a few tips on dealing with the most common types before running your wash Apply glycerine to the stained area, rub with detergent and hand wash.
- Page 23 Your Washing Machine is not The drain hose is bent, Check the drain hose and If your machine has developed a fault not covered in this manual, please contact the Servis draining water twisted, kinked or trapped straighten out any kinks, helpdesk.
- Page 24 Washing below. If your machine displays a code not shown, or if the problem persists after you have Machines taken corrective action, consult the Servis helpdesk. The washing result is not as Your laundry is too dirty Use the information on pages expected for the programme you’ve...
- Page 25 The Servis guarantee is not transferable. break the door hinges or lock. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim. The above summary does not include all of the terms and conditions and exclusions which can Please refer to the rear cover for disposal instructions.
- Page 26 INDEX Adding detergent ..........20 Fabric conditioner ..........21 Power supply failure ........30 Technical specification .........08 Additional functions ........28 Feet, adjustment ...........11 Preparing your laundry ........18 Temperature selection ........27 A djusting the feet...........11 Filters .............32 Programme end ..........28 Transit bolt, re-fitting ........10 First wash ............18 Programme modes ........25 Transit bolt, removal ........09...
