Summary of Contents for Capresso CoffeTEAM PRO Therm 478

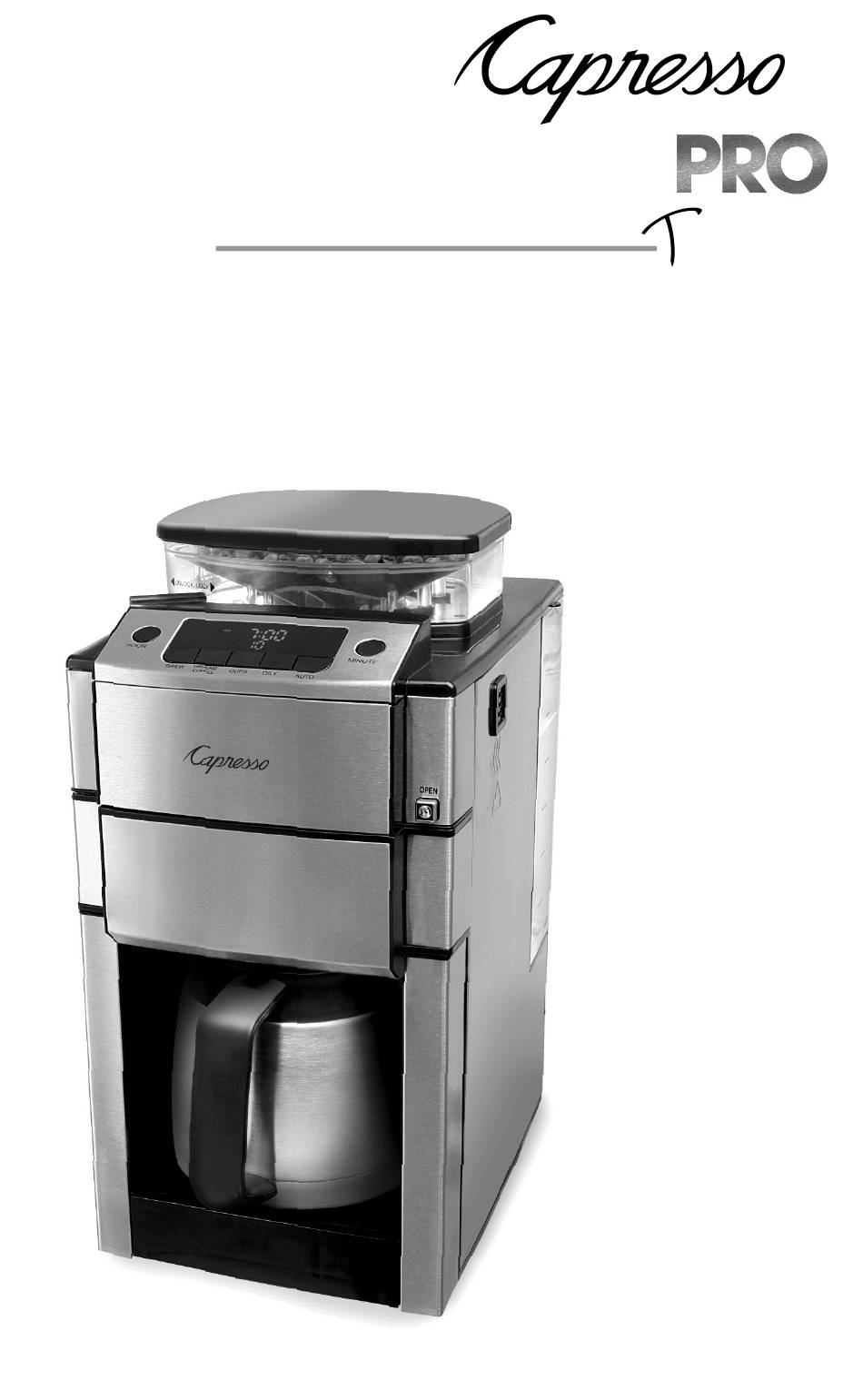

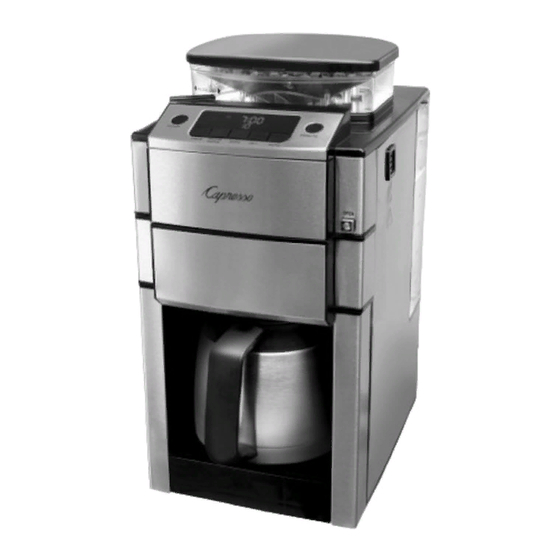

- Page 1 CoffeeTEAM herm 10-Cup Digital Coffee Maker / Conical Burr Grinder Combination • Operating Instructions • Warranty Model #478 1000W/120V~/60Hz Read this manual thoroughly before using and save it for future reference...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or body of machine in water or other liquid. - Page 3 • Always ensure the upper burr and bean container are locked before brewing. 1. WELCOME AND THANK YOU Thank you for choosing the CAPRESSO CoffeeTEAM PRO. Please read all of the instructions in this booklet before operating your new machine. Understanding and complying with these instructions is essential to ensure that the machine is utilized without risk and to ensure safety during operation and maintenance.
- Page 4 Fig. 1 1. GoldTone filter 9. Removable upper burr 2. Filter insert with drip stop 10. Fixed lower burr (not removable) 3. Filter holder 11. Water container lid 4. Carafe 12. Removable water container 5. Digital display (Fig. 2) 13. Steam vent 6.
- Page 5 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11...
- Page 6 3. COFFEE BEANS AND THE BUILT-IN BURR GRINDER Grinding the beans just before brewing will maximize the flavor and aroma of your coffee. Conical burr grinders are considered the best way of grinding beans. The slower grinding speed of the conical burrs creates less heat thus preserving more aroma of the ground coffee.
-
Page 7: Before Initial Use
• Before emptying the bottom half of the bag of beans into the bean container, check to see whether there are any particles that look like stones, and remove them. IMPORTANT: If you hear a loud buzzing noise during grinder operation or if the grinder gets blocked or jammed, push the brew button to stop grinding and unplug the machine and follow cleaning instructions in chapter 10.5. - Page 8 • Rinse out the water tank for first time use and fill the water tank to the 10 cups marking. Place back onto the machine and press down to fully engage the base valve. • Remove the charcoal cartridge and measuring scoop from the carafe and wash the carafe as described in chapter 10.1.
-
Page 9: Power Interruption
c) To change the Auto-On Time • Push and hold the AUTO button for 2-3 seconds until the display illuminates with the clock icon and the clock icon starts blinking. • Push and hold the HOUR and then the MINUTES button to set a new Auto-On time. - Page 10 • If the machine was set to Auto-On and power was interrupted, the machine will not brew coffee at the programmed time. 7.4 REMOVING / ATTACHING THE BEAN CONTAINER • Grasp the bean container with two hands and turn the bean container clockwise. •...
-
Page 11: Filling The Water Container
• Replace the filter after 60 pots of coffee or 6 weeks after first use, whichever comes first. Unused cartridges can be stored indefinitely. • Replacement cartridges are available through your local Capresso dealer or through the website: www.capresso.com. • The machine automatically counts the number of pots brewed and the display will illuminate with a "CLEAN"... - Page 12 (Fig. 3). Insert carafe into the machine. Please note: If you lose the lid, you cannot brew coffee. Visit our website www.capresso.com or call 1-800-767-3554 to order a new lid. Please note: Always make sure that the carafe is transported in an upright position.
- Page 13 CAUTION: As long as the grinder is in operation, DO NOT open the bean container lid, DO NOT open the filter basket and DO NOT insert your finger or any other object into the grinder. • After brewing is finished the cup icon light will turn off. For the next 1 to 2 minutes hot coffee will still pass from the filter into the carafe.
- Page 14 9.1 BREWING PREGROUND COFFEE LATER ("AUTO") • Coffee maker is plugged in and the time, auto-on time are set and GROUND COFFEE is selected in the AUTO programming menu. • Remove the water container (Fig.1.12) and fill to the desired amount of cups. Place water container back onto the machine and push down to fully engage the base valve.
- Page 15 Order through www.capresso.com or call 1-800-767-3554. • Remove GoldTone filter and charcoal filter. • Dissolve 1 oz. (28 g) of Capresso Cleaning Solution (or other descaling agent) with 32 oz. (1 L) of water and pour mixture into water tank.
-
Page 16: Questions / Troubleshooting
11.2 Using other Decalcifying Agents • All decalcifying agents are acidic and must be handled carefully. Check the information on the packaging before using. Only use decalcifying agents suitable for drip coffee makers and follow the instructions which come with the agent and reference steps above in chapter 11.1. -
Page 17: Limited One-Year Warranty
13. LIMITED ONE YEAR WARRANTY This warranty covers your CAPRESSO machine, model #478 CoffeeTEAM PRO Therm. The model # can be found on the bottom of the machine. This warranty is in effect for one year from the date of the first consumer purchase. This warranty covers all defects in materials or workmanship (parts and labor). - Page 18 Customer Service 1-800-767-3554 Mon-Thu 8AM – 9PM • Fri 8AM – 8PM • Sat 9AM – 5PM Eastern Time Zone contact@capresso.com JURA Inc. 81 Ruckman Road, Closter, NJ 07624 201-767-3999 • Fax: 201-767-9684 Website: www.capresso.com...
