CS318
User Instructions

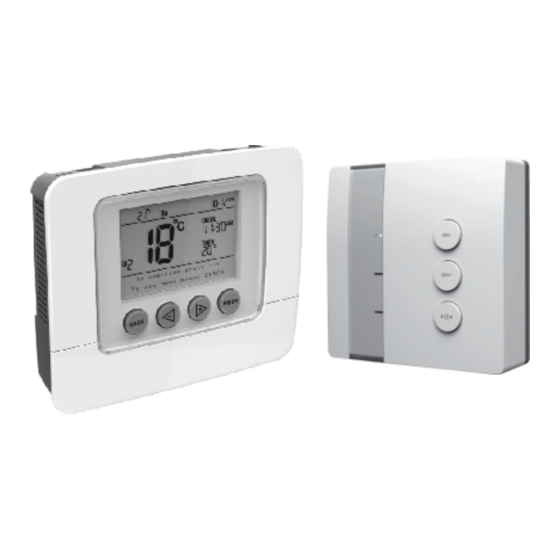

CS318 comprising of CS317
7 Day Wireless Programmable Room
Thermostat and SR303 Receiver
Programmable room thermostats are widely recognised as one
of the best ways in which to control central heating. The CS317
programmable room thermostat has a large display and intuitive
user interface, making it easy to set up and use. CS317 uses a
sophisticated time proportional integral (TPI) algorithm for
accurate temperature control and energy efficiency.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS318 and is the answer not in the manual?

Questions and answers

Summary of Contents for iQe CS318

  • Page 1 CS318 User Instructions CS318 comprising of CS317 7 Day Wireless Programmable Room Thermostat and SR303 Receiver Programmable room thermostats are widely recognised as one of the best ways in which to control central heating. The CS317 programmable room thermostat has a large display and intuitive user interface, making it easy to set up and use.
  • Page 2 What is a programmable room thermostat? ...an explanation for householders. A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set 'ON and OFF' time periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting and switching it off once the set temperature has been reached.
  • Page 3 If your heating system is a boiler with radiators, there will usually be only one programmable room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don't have TRVs, you should choose a temperature that is reasonable for the whole house.
  • Page 4 CS317 DISPLAY Actual Room Day of Time of Temperature Week Until (Time) Then (Temp) Temperature Back - Button + Button Enter Button Button...

  • Page 5: General Information

    DISPLAY Actual Room Temperature This is the actual room temperature measured by the CS317 Set Temperature This is the temperature that the CS317 will allow the room to reach. The temperature range can be set between 5°C and 30°C When the temperature shown in the display is achieved the CS317 will switch the heating OFF.

  • Page 6: Temporary Override

    TEMPORARY OVERRIDE A temporary temperature change can be made at any time. It is also possible to extend how long this temperature override is in operation. Press ‘-’ or ‘+’ to New temperature adjust temperature setting will be shown on the display The temperature will revert to its normal programmed setting at the next timed temperature change TEMPORARY OVERRIDE WITH TIME EXTENSION...
  • Page 7 PERMANENT OVERRIDE New temperature Press ENTER Press ‘-’ or ‘+’ to setting will be adjust temperature shown on the display Press the '+' The hours of Press ENTER repeatedly until the UNTIL time HOLD appears in will flash the display Message will appear briefly confirming...
  • Page 8 SETTING UP THE CS317 Upon initial installation the CS317 has the following factory default settings Settings – Monday to Friday Time Target Temperature Period 1 06:00 am 20 °C Period 2 08:30 am 18 °C Period 3 11:30 am 20 °C Period 4 01:30 pm 18 °C...
  • Page 9 MAIN MENU To access the MAIN MENU take the following steps: Press '-' or '+' to Press ENTER twice toggle between the menu options MENU OPTIONS Programme This allows the user to adjust the different time and temperature settings from the factory default settings shown in the table on page 8.
  • Page 10 Setting the PROGRAMME Six time and temperature settings are available in each 24 hour period. Pressing BACK at any time in this process will return you to normal operating mode. Press '-' or '+' Press ENTER three The day of the week to select day to times will flash...
  • Page 11 To copy the same programmes to other days of the week, please follow the process below When you have set The next Press ENTER sequential day P6 the message 'To Copy press ENTER' will now flash. will appear. Press '-' or '+' to select the When complete press BACK days you wish to copy the to return to normal operating...
  • Page 12 Setting the HOLIDAY programme Pressing BACK at any time in this process will return you to normal operating mode Press '-' or '+' until Press ENTER twice HOLIDAY appears Press ENTER on the display Press the '-' or '+' to adjust to the date you The START date The BACK date...
  • Page 13 If the holiday period START date matches today's date, the STANDBY temperature will be shown on the display together with the suitcase icon. If the holiday period START date does not match today's date the display will remain in normal operating mode but with the suitcase icon appearing on the right of the display.
  • Page 14 Setting the TIME and DATE Pressing BACK at any time in this process will return you to normal operating mode Press '-' or '+' until Press ENTER twice Time/Date appears Press ENTER on the display Press '-' or '+' to The hours for The minutes for adjust hours then...

  • Page 15: Setup Menu

    SETUP MENU To access the SET UP MENU take the following steps: Press '-' or '+' until Set Up appears on Press ENTER twice Press ENTER the display Press '-' or '+' to toggle between the menu options MENU OPTIONS detailed below Select clock format This allows the display to show the time in...
  • Page 16 MENU OPTIONS (Contd...) TPI cycles per hour This setting helps the TPI energy saving software to operate correctly depending on the type of heating system you have Optimum start This calculates the amount of time the CS317 may need to switch on in advance of the next target temperature setting in order to meet the requirement.
  • Page 17 Setting the DAYLIGHT SAVING Pressing BACK at any time in this process will return you to normal operating mode The default factory setting is for the Daylight saving to be ON giving automatic switching to GMT/BST Press '-' or '+' until Set Up appears on Press ENTER twice Press ENTER...
  • Page 18 Setting the STANDBY TEMPERATURE, LOWER TEMPERATURE LIMIT or UPPER TEMPERATURE LIMIT Pressing BACK at any time in this process will return you to normal operating mode Press '-' or '+' until Press ENTER twice Set Up appears on Press ENTER the display The temperature Press '-' or '+' until...
  • Page 19 Setting the TPI cycles Pressing the BACK at any time in this process will return you to normal operating mode Press '-' or '+' until Set Up appears on Press ENTER Press ENTER twice the display Press '-' or '+' until The current setting TPI Cycles per hour Press ENTER...
  • Page 20 Setting the OPTIMUM START This setting will allow the CS317 to anticipate the next set temperature and switch on up to two hours in advance to ensure room temperature has been reached by the time the new set temperature applies. As a consequence the switch on time could take place anywhere between 2 hours and zero before the set time and temperature.
  • Page 21 Setting the TAMPER SETTING This setting allows the unit to be locked to the programmes set and can only be reactivated by entering the pin code. None of the buttons will operate until the security code is entered Pressing BACK at any time in this process will return you to normal operating mode Press '-' or '+' until Set Up appears on...
  • Page 22 Cancelling the TAMPER SETTING Pressing BACK at any time in this process will return you to normal operating mode The following message will Press ENTER Press ENTER twice appear 'To enter release code press ENTER' Repeat the Press '-' or '+' to The following previous step for confirm the first...
  • Page 23 If the override is used to override the CS317 thermostat when it is functioning correctly then the override will be cancelled by the next switching operation of the thermostat and normal operation will be resumed. In any case, with no further intervention, normal operation will be restored within one hour of the override being operated.

  • Page 24: Service And Repair

    In the unlikely event of a fault developing please refer to the RESETTING THE CS317 THERMOSTAT on page 23. If this fails to resolve the problem please contact a local heating engineer or a qualified electrician. www.iQE.co.uk Trade House BA22 8RT Part Number P85557 Issue 1...
