Using your 2017 CD Cassette Recorder
with Coomber accessories

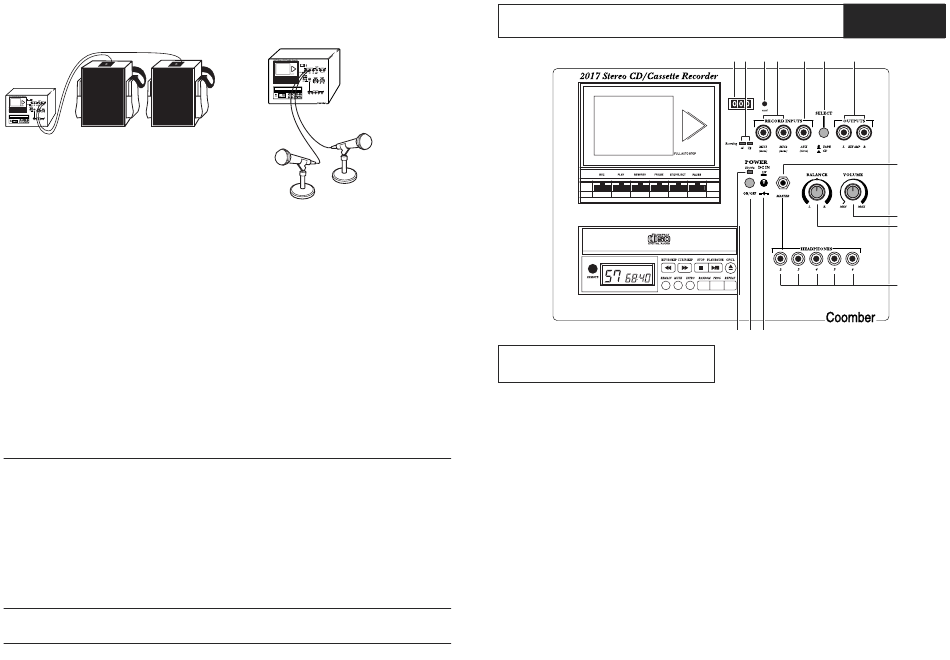

Connecting to Coomber booster speakers /
external amplifier (7)
The 2017 is designed to be compatible with Coomber Booster
Speakers (model no. 2185/2186) which are ideal for increasing sound
level.
Note: the 2017 requires 2 booster speakers for effective stereo
operation (as shown in the illustration above). Use EXT AMP L & R (7)
outputs to connect to an external amplifier, Coomber Booster
Speakers or a mixing desk.
The output level is not fixed and may be adjusted by using the
VOLUME and BALANCE controls.
2 x Coomber 2185 or 2186 booster speaker will upgrade your 2017 to
around 300 watts of music power. Phone: 01905 25168 for more
information.
Headphone Group Listening
for more than six positions
Connecting our six position stereo headphone distribution system,
1908/PK C, to one of the stereo headphone sockets will allow up to
eleven people to listen through headphones any one time.

Copyright

Your attention is drawn to the fact that copying pre-recorded tapes,
CD's or other published material may infringe copyright laws.
SAFETY & GENERAL INFORMATION
WARNING: This equipment is fitted with a LASER diode which can harm the eyes
Do not attempt to disassemble the casing or use any part of the contents for any purpose
other than its intended use.
Headphones:
For personal safety and comfort connect headphones into equipment, turn
volume down and then switch on before placing headphones over ears. For safety use only 600
ohm headphones (i.e Coomber type 1929).
Environments:
The equipment should not be exposed to dust, moisture, water, chlorine and
other corrosive substances in normal use or during storage. It will cause damage to this equipment.
Swimming pool atmospheres:
are very hostile to all electro-mechanical equipment (e.g. steel
rusts and rubber perishes). Equipment returned for repairs showing evidence of use in adverse
environments may, at our discretion, be charged for even during the 12 month warranty period.
• Rechargeable battery replacement must be carried out by a competent qualified technician.
• The disposal of batteries (rechargeable or otherwise) where used in Coomber equipment
should be discarded in accordance with local regulations.
• Do not cover the ventilation openings with any items (e.g. newspaper, fabrics etc.)
• Naked flames, such as lighted candles, should not be placed on or near the apparatus.
• The apparatus should not be exposed to dripping or splashing. No objects filled with
liquids, such as vases, should be placed on or near the apparatus.
European Safety Standard:
All Coomber equipment complies with EN60065. Any local
requirements for use of this equipment should be taken into account.
Class I construction:
This equipment must be EARTHED.
Coomber Electronic Equipment Ltd.
Brindley Road, Warndon, Worcester, WR4 9FB, U.K.
Tel: 0044 (0)1905 342070
e-mail: sales@coomber.co.uk
Fax: 0044 (0)1905 759170
web:
www.coomber.co.uk
2017 Instructions
© Coomber Electronic Equipment Ltd. 2004

Coomber Microphones and Desk Stands

For assessment recording purposes Coomber models 1808 live
performance microphone and 1918 dynamic microphone are both
suitable for use with the 2017.
Both microphones can be used with the Coomber 1912 desk stand,
making them ideal for use in an examination environment.
Simply plug the microphones into the microphone sockets (4), switch
on and begin recording to cassette for high quality results.
Mains Voltage
UK & EEC: 220-240V 50Hz: Mains Cable: Line - Brown, Neutral - Blue, Earth - Yellow & Green
USA:
110-120V 60Hz: Mains Cable: Line - Black, Neutral - White, Earth - Green
Isolate from mains supply when not in use by removing the plug from the wall socket.
Mains Plug:
The mains cable fitted to this equipment is already provided with a moulded plug. If
another plug type is required, follow instructions from the plug manufacturer, or seek advice
from a qualified person. DISPOSE OF ORIGINAL PLUG SAFELY. DO NOT RE-USE.
Mains Plug fuse rating:
3Amp to BS1362 (applicable in UK)
Model type and rating information is located on a label on the rear of the product.
Additional Technical Information:
If you require any further help or information, or if
any point is not clear, then please telephone 01905 342070 quoting your model number and
serial number (located on a label on the rear of the product). Our Technical Department will
be pleased to help you.
Note: This equipment contains no user serviceable parts and should only be disassembled and
reassembled by competent qualified personnel. Dismantling will render the warranty void.
Electrical Safety Testing:
• Safety testing and servicing should only be carried out by competent qualified personnel.
• When undertaking an earth bond safety test, only use the externally exposed metalwork.
Do not test against internal metal compnents found inside tape mechanisms or CD trays -
THIS WILL LEAD TO IRREPARABLE INTERNAL DAMAGE.
• The supply cable is part of a special assembly. If damaged the equipment should be
returned to Coomber Electronic Equipment Limited or their agent for cable replacement.
• Coomber reserve the right to change
of dispatch. Any modifications to or misuse of
products and specifications without notice.
the equipment renders this warranty void.
• All Coomber equipment is covered by a
• Equipment that is security marked or
12 months warranty against defective
damaged cannot under any circumstances
components or faulty manufacture from date
be exchanged.
OPS 2017/CD9 R1.3 200404
Operating Instructions: 2017
PLEASE NOTE: ALWAYS CLOSE THE CD TRAY (1)
WITH THE UNIT SWITCHED ON. PUSHING THE TRAY
CLOSED WITH THE POWER OFF MAY LEAD TO
DAMAGE DURING SUBSEQUENT TRANSPORTATION.

Power from Mains (13)

When connected to the Mains, the indicator (14) will glow red. Press
POWER button (13) IN to power equipment - the indicator (14) will
glow yellow. The LCD display will also be backlit.

EXT D.C. Input Socket (12)

A standard Roka connector allows the 2017 to operate from an
external 12V DC supply. Please observe the correct polarity - shown
below the D.C. Input Socket (12).
Disconnect the DC supply when not in use.
Suitable batteries include 12V car batteries (directly connected or via
an auxiliary socket such as the cigar lighter) or a Coomber 1959
rechargeable battery (which must be recharged using our 1958
charger).

Volume control (9)

To protect listeners, always adjust the volume control (9) to minimum
before playing a CD - particularly if headphones are being used. Turn
the volume level up once the CD is playing.
If necessary restart the CD once the volume level is set.

Balance Control (10)

The balance control (10) allows fading between the speakers.
Maximum output of both speakers is achieved when the dial is set to
the centre point.

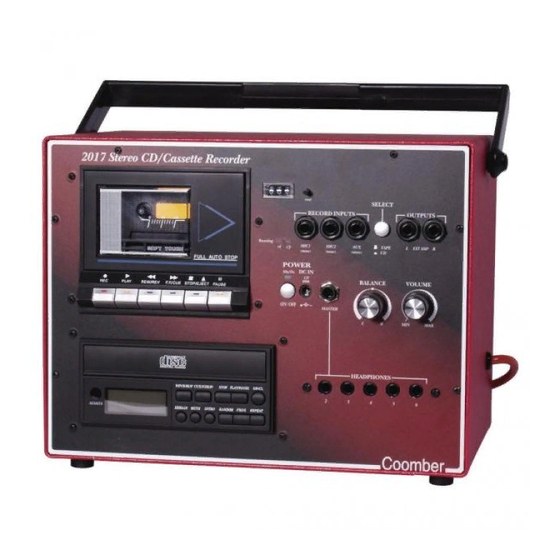

Coomber
CD Player & Cassette
1
2
3
4
5
6
7
14
13
12
When turned fully left, the right hand speaker cuts out completely and
vice versa - ideal where music is recorded on one track and voices on
the other.
Headphone Sockets (8 & 11)
Connecting Mono or Stereo headphones to the MASTER headphone
socket (8) automatically disconnects the internal loudspeakers.
Up to five more pairs of headphones may be connected to Sockets (11).
Note: If the MASTER socket is not used, then the internal loudspeakers
are not disconnected and sound will be reproduced through the
internal loudspeakers and any headphones connected.
SAFETY:
For safety you are advised to use only 600 ohm headphones
such as Coomber 1929 headphones.
Prior to using headphones, always turn the volume down,
fit the headphones and then adjust the sound to a
comfortable level.

Tape / CD Selector (6)

The SELECT button (6), should be pushed IN to play CDs or OUT to play
cassette tapes.

External Amplifier Outputs (7)

Use EXT AMP L & R (7) outputs to connect to an external amplifier,
Coomber Booster Speakers or a mixing desk.
The output level is not fixed and may be adjusted by using the
VOLUME and BALANCE controls.
8
9
10
11
