Crown CP660 Specifications

Crown CP660 Specifications

Six channel power amplifier

Advertisement

CP660
T

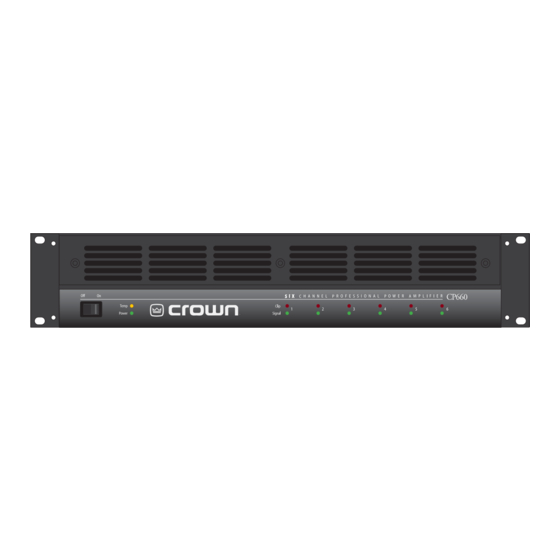

he Crown
®
CP660 six-channel power
amplifi er is designed for a wide range
of demanding applications, including
multi-channel, distributed sound, surround
and stereo systems. Perfect for applications
with multi-zone needs, such as cafeterias,
restaurants, schools and theaters, the CP660's
effi cient design allows convenient, cost-effec-
tive, reliable operation in a compact, two-rack-
space format.
This highly effi cient amplifi er includes a power-
sharing design that provides extra power to
channels where it's needed most. A discrete-
component power design employs rugged,
high-current metal output transistors for
maximum reliability. The super-quiet, variable-
speed fan operates according to thermal de-
mand, while the front-panel air intakes provide
the most effi cient cooling in any rack.
The CP660 brings you maximum fl exibility for
confi guration, with six independent amplifi er
channels. Each pair of output channels can
be bridged, using convenient switches on
the back panel, to provide three, four or fi ve
channels with higher output power. In addi-
tion, each channel includes its own back-panel
gain control for convenient system balancing.
Barrier strip connectors are provided for the
inputs, and heavy-duty 5-way binding posts
allow secure output connections. Plus, your
investment in a CP660 is backed by Crown's
unequaled Three-Year, No-Fault, Full Warranty
that covers everything.
For more details about the Crown CP660,
contact the Crown Technical Support Group at
800-342-6939 or 574-294-8200. Also, visit the
Crown Audio website at www.crownaudio.com.
S I X
C H A N N E L
Features
Built for maximum fl exibility, with the best
watts-to-dollars ratio around
Six independent amplifi er channels to suit
a wide range of applications
Six independent level controls on the back
panel allow convenient level balancing of
all channels
Three Dual/Mono switches on the back
panel give a broad range of fl exibility in
confi guring your system
Compact design is rack-mountable in two
rack spaces (3½ inches/89 mm)
Specifi cations
Note: All measurements are related to 120-VAC units 60Hz in
Stereo mode with 8-ohm loads at 1-kHz rated power unless
otherwise specifi ed. Specifi cations for units supplied outside
the U.S.A. may vary slightly at different AC voltages and
frequencies.
Power
Output Power:
Load Impedance: Safe with all types of loads.
Rated for 4 and 8 ohms in Dual mode, 8 ohms
in Bridge mode.
Required AC Mains: North American units
are 120-VAC, 60-Hz only; 100- and 240-VAC
(±10%) 50 Hz units are available.
AC Line Current,
100 Volts: 7.8 A;
120 Volts: 6.5 A;
240 Volts: 3.3 A.
AC Line Connector: NEMA 5-15P (15 A) on
North American units.
*1 kHz Power
CP660
4-Ohm
Six-Channel Mode
130W
1 Channel / 1 Load
100W
4 Channels / 4 Loads
75W
6 Channels / 6 Loads
Bridge Mode
2 Channels / 1 Load
4 Channels / 2 Loads
6 Channels / 3 Loads
*1 kHz Power: refers to maximum average power
in watts at 1 kHz with 0.3% THD.
A M P L I F I E R
Super-quiet, variable-speed fan with auto
trigger for silent, effective cooling
High-quality, standard-spaced double ba-
nana-jack/binding-post output connections
facilitate any type of speaker connection,
including heavy-gauge wire
Three Year, No-Fault, Fully Transferable
warranty completely protects your invest-
ment and guarantees its specifi cations
Performance
Frequency Response: +0/–1 dB from 20 Hz to
20 kHz at 1 watt.
Phase Response: ±15 degrees from 20 Hz to
10 kHz at 1 watt.
Signal to Noise Ratio, A-Weighted: Better than
105 dB below rated 1 kHz power at 8 ohms.
Total Harmonic Distortion (THD): rated power,
0.3% or less true THD.
Intermodulation Distortion (IMD): (60 Hz and
7 kHz at 4:1) Less than 0.25% at rated power to
–35 dB below rated power at 8 ohms.
Damping Factor: Greater than 250 from 20 Hz
to 400 Hz.
Controls
(All located on front panel)
Level: A rotary level control for each channel
located on the rear panel.
Power: An on/off rocker switch located on the
front panel.
Mode: A two-position switch for each pair of
channels (three total) located on the back panel
used to select Dual or Mono operation.
8-Ohm
90W
70W
60W
250W
200W
150W
