Summary of Contents for Avionixx CXA 640

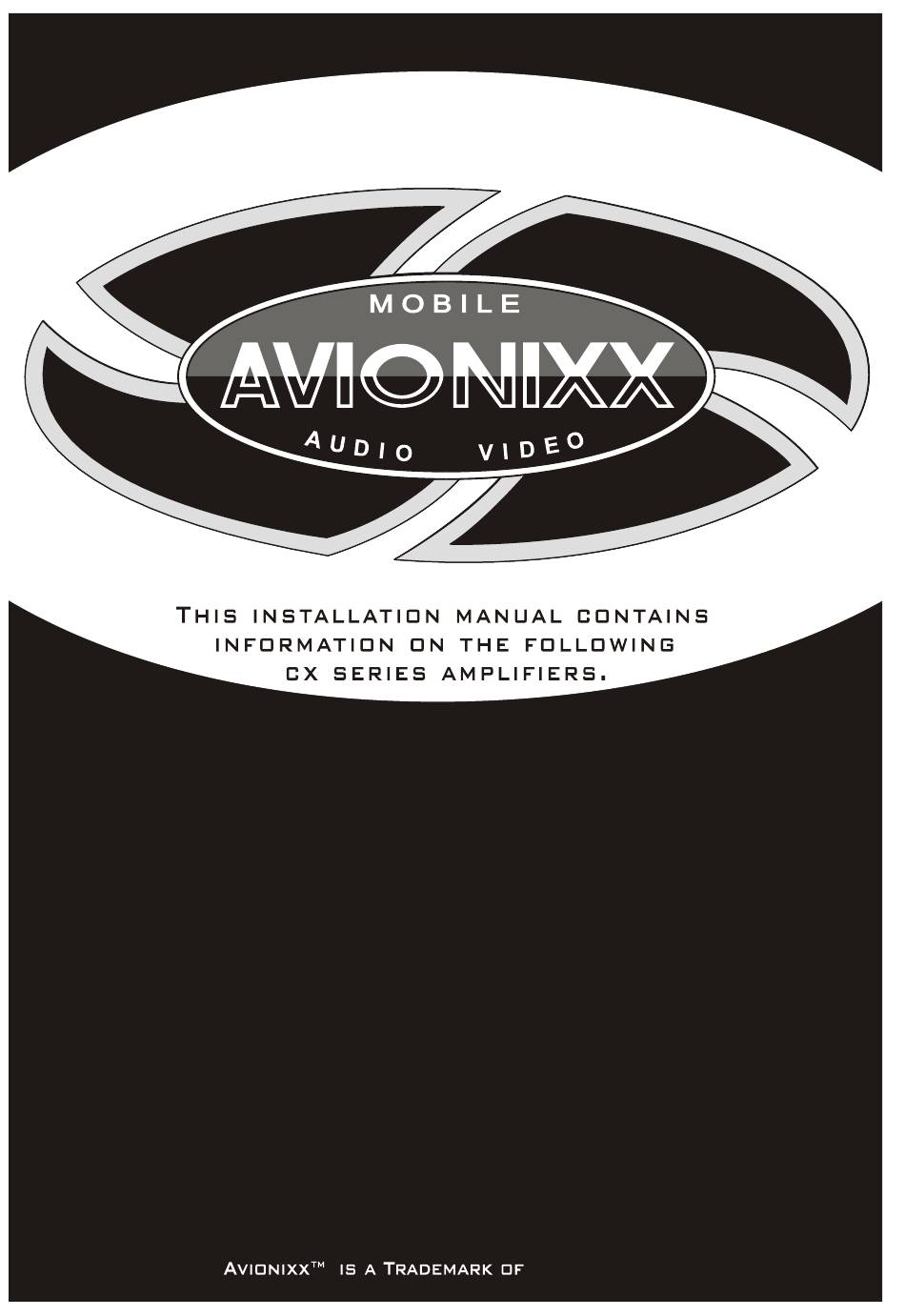

- Page 1 6 4 0 1040 8 2 0 1220 2800M Dynamic Audio...
- Page 2 Company Message Congratulations on the purchase of your new CX Series amplifier. Our engineers designed your amplifier with performance in mind, with numerous built-in features, making it user-friendly and flexible for any elaborate system you can imagine. In addition, the highest grade materials were used in manufacturing your amplifier to provide premium audio quality and efficiency, ensuring you, our valued customer, the highest quality and performance that you demand deserve, without compromise.
- Page 3 Warranty Information Please return the enclosed warranty registration card and retain your original purchase receipt and carton should you require warranty service. This product is guaranteed against defects in material and workmanship for a period of two(2) years from the date of purchase or delivery to the original purchaser. During this period, Dynamic Audio (DA) will replace or repair, at its discretion, without charge for parts or labor, any product that exhibits such manufacturing defect.
- Page 4 Use the following size power and ground cable or larger for each CX Series amplifier. CXA 640 - #8 AWG min. CXA 1220 - #6 AWG min. CXA 1040 - #6 AWG min.
- Page 5 Step3 - Tin the ends with solder to eliminate stray strands and to provide a secure connection. Step4 - Connect the wire ends to your amplifier as follow: CXA 640 & CXA 1040 Speaker Terminals 4 Channel System...
- Page 6 3 Channel System 2 Channel Bridged System...
- Page 7 CXA 820 & CXA 1220 Speaker Terminals 2 Channel Operation Bridged Mono...
- Page 8 CXD 2800M Amplifier Speaker Terminals Installations - RCA Jack Connections Low level, high impedance, gold plated RCA jacks are provided for preamp level inputs and outputs. Use heavy duty RCA cables designed for mobile applications. Step1 - Run the RCA cables carefully, maintaining as much as possible from power, speaker, and accessory wiring.
- Page 9 CX Series Input Connects...
- Page 10 Selecting "FULL" defeats the crossover functions. CXA 640, CXA 1040, CXA 820, CXA 1220, CXD 2800M - FREQUENCY ADJUSTMENT After selecting the crossover functions, adjust the low pass or high pass frequency with a small screwdriver through the opening marked "LPF"...
- Page 11 CXA 640, CXA 1040...
- Page 12 CXA 820, CXA 1220...
- Page 13 CXD 2800M Subsonic Control (LPF) Bass EQ Control...
- Page 14 Contact the manufacturer...
- Page 15 Specifications CXA 640 CXA 1040 CXA 820 CXA 1220 CXD 2800M Maximum power*@ 4 bridged 2 X 360W 2 X 520W 1 X 820W 1 X 1220W Maximum power@ 1 1 x 2600 W RMS power @ 4 THD < 0.05%...
- Page 16 Dynamic Audio 7110 Motz Street Paramount, CA 90723 Ph: (562 ) 630-8755 Fx: (562 ) 630-8750 www.avionixx.com...
