- Page 1 RC – 270 OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2 GEBRAUCHSANWEISUNG .
- Page 2 Se reporter à la notice jointe à l’appareil et à la plaque de sécurité sur l’appareil Référence et numéro de lot ou de série de l’article : se reporter au produit Distributed in Europe by: TOYOTOMI EUROPE SALES B.V. Doornhoek 4025 5465 TD Veghel, The Netherlands Email: info@toyotomi.eu Website: www.toyotomi.eu En cas d´insatisfaction, consultez d´abord votre revendeur :...
- Page 3 We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better…visit us at www.toyotomi.eu for our full line of products. 1 Read the diRections foR Use fiRst.
- Page 4 geneRal diRections foR Use Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (refer to Section A, Fig. A). Fill the removable tank and wait 30 minutes before you ignite the heater (refer to Section B, Fig.
-
Page 5: The Right Fuel
What YoU need to KnoW in adVance ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. -
Page 6: Installing The Heater
Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater. Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty. Always refer to your local dealer for the right fuel for your heater. -
Page 7: Filling Fuel
6 Your heater is now ready for use. FILLING FUEL Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below: 1 Make sure that the heater is switched off. 2 Open the upper lid and lift the removable tank out of the heater (Fig. G). Note: Some drops may leak from the tank. - Page 8 Follow the procedure below: Turn the knurled wick adjustment knob clockwise to its stop (Fig. K). If you apply more pressure you may turn it slightly further; however, it will automatically return to the start position. When you have set the wick to its highest position, this action will automatically activate the safety device.
-
Page 9: Malfunction, Causes And Solutions
SWITCHING OFF THE HEATER Push the OFF-button . The flame will extinguish after a little while (Fig. M). ADJUSTING THE WICK HEIGHT After a period of time the combustion may no longer be high enough (Section D). In that case you can adjust the wick height to improve the flame. To do this, the heater must have been switched off. - Page 10 THE HEATER SLOWLY EXTINGUISHES The removable tank is empty. See Section B. The fuel filter is contaminated by water. Dry the fuel filter (Section H, Fig. P). The lower reservoir is contaminated by water. Contact your dealer. ...
- Page 11 Do not remove any heater components yourself. Always contact your dealer for repairs. Let the heater cool down first, before you start any maintenance or service work. STORAGE (END OF THE HEATING SEASON) We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly.
- Page 12 SPECIFICATIONS Ignition electrical Dimensions (mm) width Fuel paraffin (including base plate) depth Capacity (kW) * 2.70 height ) ** Suitable space (m 45-95 Accessories: transportation cap manual fuel pump Fuel consumption (l/hr) * 0.281 Required batteries 4x LR20, MN 1300 Fuel consumption (g/hr) * 1.5V, size D Burning time per tank (hr) *...
-
Page 13: Tips For Safe Use
14 TIPS FOR SAFE USE Make sure that children are always aware of the presence of a burning heater. Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot. Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture. - Page 14 Replacement of the WicK ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK. Open the lid and remove the removable tank. 2 Remove the batteries from the battery holder . 3 Open the front grill. Remove the combustion chamber from the heater.
- Page 15 12 Install the wick to the wick sleeve according to the allo- wed direction engraved on the wick sleeve. 13 Install the wick sleeve (with wick) to the primary air tube. And then turn the wick sleeve clockwise to set in the handle arm.
-
Page 16: Main Components

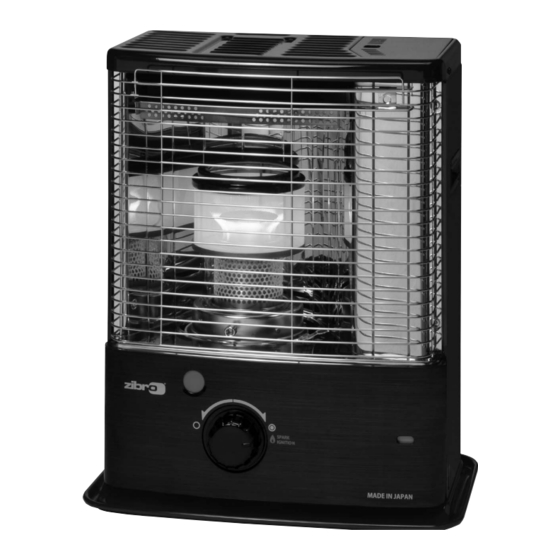

MAIN COMPONENTS OFF - button Knurled wick adjustment knob Combustion chamber Combustion chamber handle Fuel indicator Grill Lid for removable tank Removable tank Fuel gauge of removable tank ... - Page 17 In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito www .toyotomi .eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel nostro sito www .toyotomi .eu)
