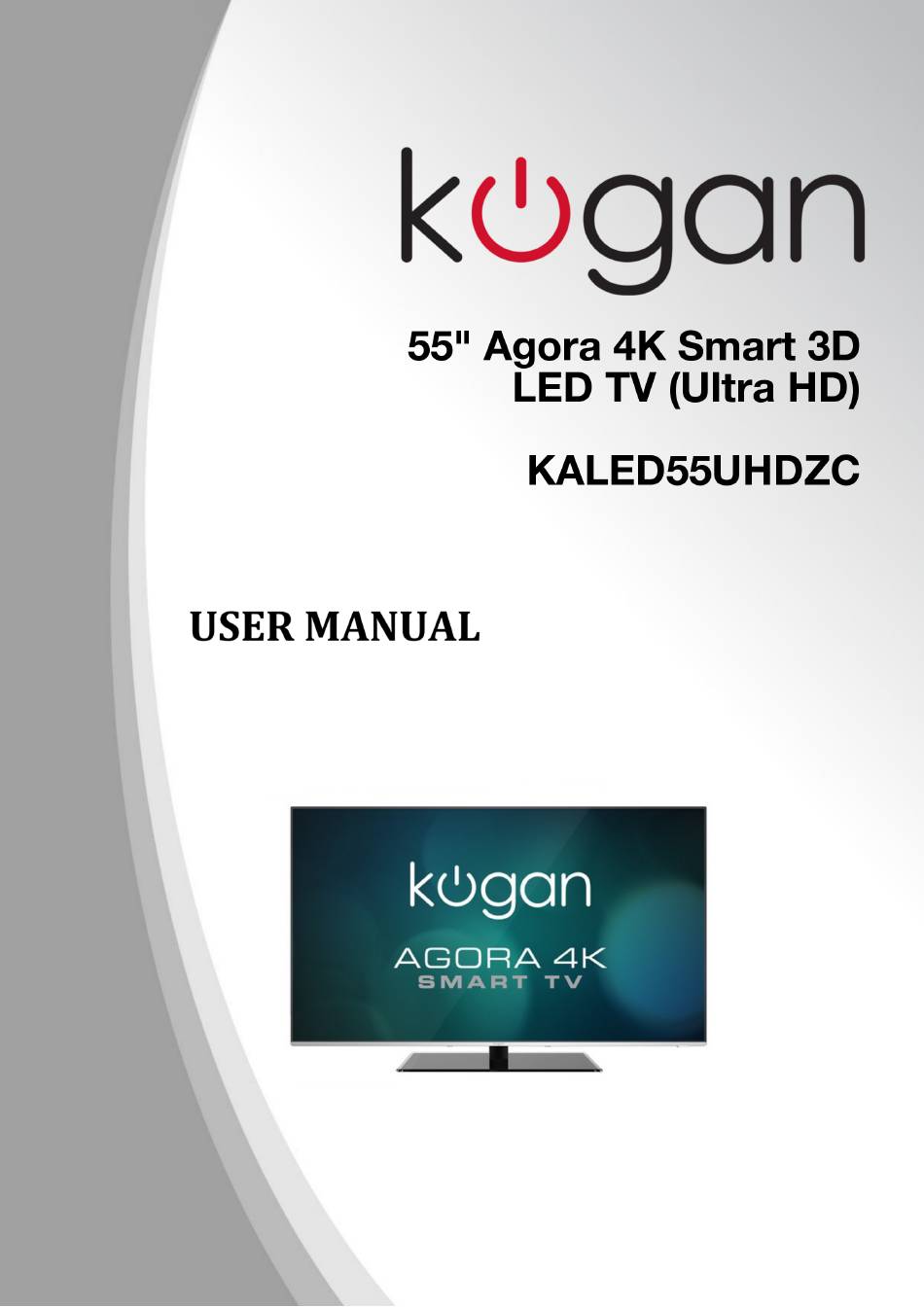

Summary of Contents for Kogan KALED55UHDZC
- Page 2 Safety Instructions..........................3 General Safety Instructions.......................3 Installation............................4 Cleaning............................5 General Description..........................6 Specifications & Accessories......................6 Specifications..........................6 Accessories............................6 Input terminals..........................6 Assembling the Stand........................7 Wall Mounting Instructions.......................7 Overview...............................9 Back Panel............................9 Front Panel............................9 Remote Control..........................10 Installing Batteries in the Remote Control................12 External Connections........................12 Antenna Connection .........................12 Basic Operation..........................13 Turning the TV on and off......................13 Main Interface..........................13...
- Page 3 3D................................21 Function..............................21 Time...............................23 PVR (Personal Video Recorder)....................24 PVR File System..........................24 PVR Guide............................25 Time shift............................25 Instant recording........................25 Recording in standby mode....................26 DTV EPG (Electronic Program Guide) ................26 Digital Media Player........................27 Device and File Management.....................27 Initialization Interface.......................27 USB Support............................28 Photos.............................28 Music..............................28 Movie...............................29 Sync View............................29 USB Support Character........................30 External Connection........................31...
- Page 4 Turn off the unit immediately. • Disconnect the power plug from the power outlet. • Contact the Kogan customer support team. Never • attempt to make repairs yourself. Never push objects of any kind into the set through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock.
- Page 5 An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them may be fatal. Always turn the set off when it is not being used.
- Page 6 Do not place this television near water, for example near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool or in a damp basement etc.. When moving the television to a warm location from a cold location, allow some time for any dew or condensation inside the television to evaporate fully before you turn the unit on.
- Page 7 Component compatible (480i, 480P, 576i, 576P, 720P, 1080i, 1080P) • HDMI input • Programmable sleep timer • No signal automatic power off • Model KALED55UHDZC Display Screen Size 55” Diagonal Maximum Resolution 3840 x 2160 Power Supply ~110-240V, 50/60Hz TV Receive System PAL/SECAM: BG, DK, I DVB-T...
- Page 8 If you need to remove or assemble the stand, please read the following: Before attaching/detaching the stand, be sure to turn the TV off. • Before performing any work, spread cushioning out over the base area to • lay the TV on. This will prevent it from being damaged. Assembly Instructions 1.
- Page 9 1. Please ensure the distance of the wall-mounting holes are 200mm or 400mm on the back cabinet before mounting your TV on the wall. 2. Mark the horizontal distance screw holes A and B with a pencil on the wall by using the long wall-mounting bracket as a ruler.
- Page 10 You can connect the TV to video devices such as DVD/Blu-Ray players, VCR and video cameras as well as gaming consoles. The buttons on the lower left panel control your TVs basic functions. For advanced features you must use your remote control. Power Switch Press to turn the TV on or off.
- Page 12 Before turning off the main power, or turning off the power supply, you must switch the television into standby mode by pressing the POWER button on the remote control or on the television set itself. Once the television is in standby mode, you may turn off the mains power supply.
- Page 13 Notes One load of batteries should last a year under normal use. • If you do not intend on using the remote control for an extended period of • time, remove the batteries to avoid leakage. Do not mix old and new batteries together. •...
- Page 14 1. Insert the power cord into a power outlet. 2. If the TV is in standby mode, press the POWER button on the remote control or the “ ” button on the bottom panel of the LED TV. 3. Normal picture will be displayed on the screen after approximately 15 seconds.
- Page 15 Arrow buttons: the selected menu item will be outlined in orange. OK button: enter the menu option that you have selected. INPUT button: You will enter the relevant option directly. The state icons at the top right corner are as follows: Add to home screen All caps Change Wallpaper...
- Page 16 Menu button: Open the TV menu. Exit button: Close the TV menu. Arrow buttons: Select the setting which you want to change. OK button: Enter the selected settings menu. Note: Enter the function option by click the status bar. You can select the type of special sound to be used when watching a given settings broadcast.
- Page 17 ▲ ▼ 1. Press / key to select an equalizer item. 2. Press OK key to enter the equalizer submenu. The sound settings can be adjusted to suit your user preferences. ▲ ▼ 1. Press / key to select a particular item. ◀...
- Page 18 Your TV has five picture settings (Standard, Soft, Vivid, User, Dynamic) that are preset at the factory. Only "User" mode can be set to your preference by adjusting particular items such as Contrast, Brightness, Colour, Sharpness, Tint. ▲ ▼ Press / key to select "Picture Mode" option. ◀...
- Page 19 ▲ ▼ Press / key to select "Auto Search" option. Then press OK key to start a notice window. In this notice window, you can select country in the “Country Selection” option and set “Tune Type” option. The number of searched channels will be shown on the screen.
- Page 20 ▲ ▼ You can use / button to choose “Program Edit” and enter the menu, press the Blue/Red/Yellow colour button on the remote control to skip, delete and move programs, also you can press FAV button to add to your favourite list. Delete: You can press RED button to enter "DEL"...
- Page 21 There are two ways to select input source. 1 - Input Setup Press INPUT key on the remote control to show the "INPUT SOURCE" menu. The ◀ ▶ different input sources will be displayed as shown below. Use / key to move the cursor to the input you desired and press OK key to confirm.
- Page 22 2D-3D: Turn source film from 2D into 3D mode. 3D-2D: Turn source film from 3D into 2D mode. 3D-Off: Close 3D mode and set to 2D mode. 3D Auto: When ON, all 3D source films will automatically display in 3D mode. When OFF, only source films with 3D format signals will automatically display in 3D mode.
- Page 23 The lock feature requires a Password to be entered before any settings can be changed. ▲ ▼ 1. Press / key and select "Lock" under the "Function" menu. 2. Press OK key to enter the “Lock” submenu, "Please enter password" menu will appear. Enter your 4-digit password to enter the “Lock”...
- Page 24 ◀ ▶ 2. Press / key to select "Off", "Low", "Middle", "High" and "DEFAULT” to improve the picture sharpness. Note: Noise Reduction doesn't work in VGA Mode. RGB Range Change the brightness and saturation for a better picture. ▲ ▼ 1.
- Page 25 the time to turn off the TV set. Sleep Timer ▲ ▼ 1. Press / key to select "Sleep Timer" option. ◀ ▶ 2. Press / key repeatedly until the desired time appears (Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min). Notes: The sleep timer you have set will be cancelled when the TV turns off or if a •...
- Page 26 choose the size. : Press “OK” button to enter format submenu. The disk must be • formatted when first used for the PVR function. Do not disconnect disk or turn power off during formatting. When formatting your disk, a progress bar will appear on the display. NOTE: The larger your device the longer it will take to format.
- Page 27 Note: Start a recording then press the power button. A message will be displayed prompting you to standby, stop or cancel. In DTV mode, press “GUIDE” button to enter the Electronic Program Guide. At Guide menu, press "RED” button to "Record"...
- Page 28 This TV is embedded with one USB port digital media player. It can find devices that support USB 1.1/2.0/3.0, including flash drives, USB hard disks and digital cameras. Note: please do not remove the cable or device during the data transfer. Doing so may cause problems for the system.
- Page 29 Press the menu button to play/exit the "photo menu". The menu items from left to right function as the following: A. Wallpaper B. List C. Prev D. Play/Pause E. Next F. Stop G. Sequence H. Rotate Anticlockwise I. Rotate Clockwise J. Zoom in K. Zoom out L. DragMode DragMode Wallpaper Zoom Out...
- Page 30 Press the menu button to play/exit the "movie menu". The menu items from left to right function as the following: A. Prev B. Pause/Play C. Next D. Stop E. Advanced setting Prev Advanced Setting Pause/Play Stop Next Press 2D/3D button to open the Sync View menu. This menu has two group functions.
- Page 31 Select the Sub Channel item, then press OK to open the Sub Channel selection menu. Press / ▲ ▼ key and press OK to select a channel. Select the Enter Sub item and press OK to enter the sub channel you want. Select the Back Main item and press OK to exit sync view.
- Page 37 Each PC has a different back panel configuration. 1. Connect a D-Sub Cable between the VGA/PC IN connector on the TV and the PC output connector on your computer. 2. Connect a PC audio cable between the PC AUDIO IN jack on the TV and the Audio Out jack of the soundcard on your computer.
- Page 38 If you have any problems with your television, please check the suggested solutions below, as these issues may be caused by improper adjustment/setup rather than a malfunction with the unit. If the problem persists, please contact the Kogan customer support team. Poor picture and sound quality Try a different channel •...
