- Page 1 2/4-Port HDMI Splitter SP-00102-0B SP-00104-0B User Manual ◄ V1.0 ► www.green-box.com.tw...
- Page 2 RoHS. © 2008 by Green-Box Green-Box Technology Co. Ltd. reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of Green-Box Technology Co.

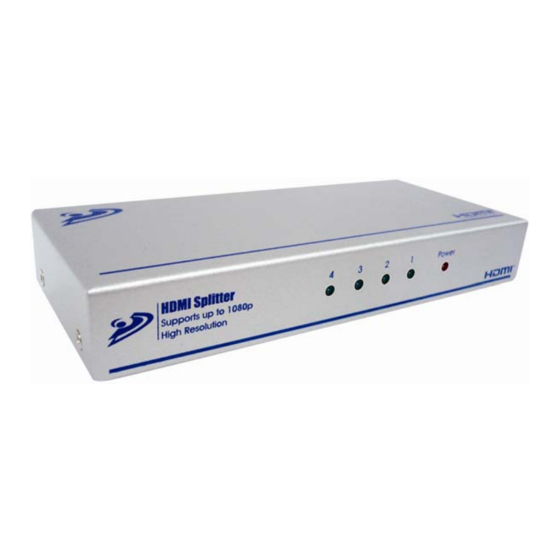

- Page 3 Package Contents The HDMI Splitter package consists of followings items: 1. 1x 2/4-Port HDMI Splitter 2. 1x User’s manual 3. 1x DC Power Adapter (DC 5V/1A for SP-00102-0B ; DC 5V/2.6A for SP-00104-0B) Product Photos SP-00102-0B 2-Port HDMI Splitter SP-00104-0B 4-Port HDMI Splitter...
- Page 4 2/4-Port HDMI Splitter 2. Product Features Conform to HDMI 1.3 specifications Fully HDCP 1.1 compliant Compatible to all HDMI equipped devices, HDCP-enable HDTV devices One HDMI source connecting 2 or 4 High Definition Display Devices like HDTV (High Definition Television) The cable length from input device to the Splitter plus the Splitter to output device is maximum 30 meters Supports high resolution input:...
- Page 5 2/4-Port HDMI Splitter 3. Panel Description Power LED Channel LED (2/4) Power Supply (DC 5V 1A / DC 5V 2.6A) Source Input Output Channel (2/4) 5 / 8...
- Page 6 2/4-Port HDMI Splitter 4. Hardware Installation The following guide is intended to assist users to solve install SP-H00102 / SP-H00104 HDMI Switch. Step 1 : Before installation, please make sure all of devices have been turned off. Step 2 : Connect HDMI source device to HDMI Splitter input port, using HDMI cable Step 3 : Connecting the HDMI cables to display devices and the output ports of the...
- Page 7 2/4-Port HDMI Splitter 5. Specifications Model Name 2-Port HDMI Splitter 4-Port HDMI Splitter Model No. SP-H00102-0B SP-H00104-0B HDMI source input port HDMI display device output Port HDMI source Input port HDMI 19-pin Type A connector (Female) Display Device Output HDMI 19-pin Type A Port Connector (Female) Display Device Port LED Power LED...
- Page 8 2/4-Port HDMI Splitter 6. Remarks Please read this operation manual carefully before installing the system. II. Please use high quality HDMI cable for optimum results. III. To prevent potential power damage do not use 2-wire extension cords. Ensure DC outlets at PCs and displays are on the same phase and have correct and common grounding.
