Summary of Contents for Avtex W152T

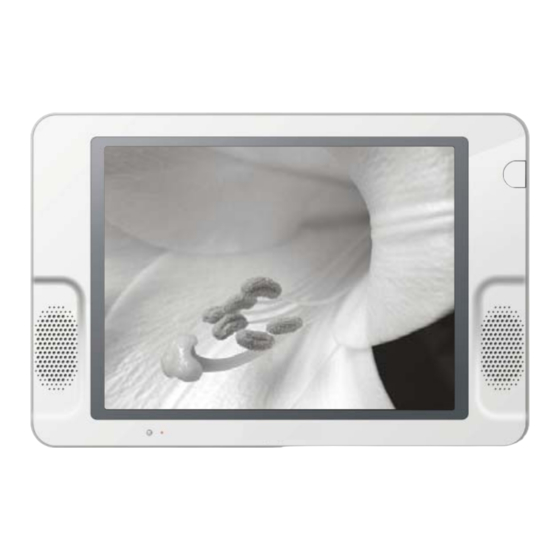

- Page 1 TFT-LCD TV W152T USER MANUAL READ CAREFULLY BEFORE OPERATION...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS TO PREVENT ELECTRICAL SHOCK. CAUTION DO NOT REMOVE THIS COVER. NO USER- SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK. REFER SERVICING TO QUALIFIED DO NOT OPEN. SERVICE PERSONNEL. T h i s s y m b o l i n d i c a t e s This symbol indicates d a n g e r o u s v o l t a g e important instructions...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Do not expose the LCD TV/monitor to extreme temperature conditions or to extreme humidity conditions. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not place the LCD TV/monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall.
-
Page 4: Table Of Contents
CONTENT INSTALLATION Normal installation PANEL BUTTON FUNCTIONS Front panel Left panel Rear panel Right panel EXTERNAL EQUIPMENT Connecting figure REMOTE CONTROLLER Remote buttons Battery installation LET'S START Change source operation TV MENU SETUP Sound Picture TV setting System setting Nicam/bilingual receiving TELETEXT FUNCTION Teletext display Page selection... -
Page 5: Installation
INSTALLATION NORMAL INSTALLATION Ostium Kickstand M5 28 Screw 1pcs Rear viewing of LCD TV 1, Hook the tache (labeled A)of the kickstand on to the slot (labeled C) 2, Tighten the screws ( M5 28) through the ostium (labeled B). 3, Figure shows the finished installation. -
Page 6: Panel Button Functions
PANEL BUTTON FUNCTIONS FRONT PANEL HD3DSound Indicator(The indicator is red when in standby mode, and green when in working normally) IR sensor window LEFT PANEL MENU(Enter or exit TV menu) CHANNEL(Increase or decrease channel number) VOLUME(Increase or decrease volume) SOURCE(Select input source ) STANDBY(To switch in standby mode and power-on mode. -
Page 8: External Equipment
EXTERNAL EQUIPMENT CONNECTING DIAGRAM NOTE You should insert all interconnecting cables BEFORE plugging in the power cord. -
Page 9: Remote Controller
REMOTE CONTROLLER REMOTE BUTTONS Source selection Signal source select rapidly: DVB, TV, SCART, YPBPR, VGA, AV, S-VIDEO. Number buttons To select program number. RETURN To exchange channel between the previous program and the current program, valid in TV and DVB mode. TIMER To display the calendar and settings for timer of power on/off . - Page 10 REMOTE CONTROLLER STANDBY To switch between standby mode and power-on mode. Two-digit number button To switch between one or two-digit program number. SOURCE To select input source: TV, DVB, SCART, YPBPR, VGA, AV and S-VIDEO . UP/DOWN cursor To select upward/downward in the menu or change the channel.
-
Page 11: Battery Installation
REMOTE CONTROLLER BATTERY INSTALLATION Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of the battery to the -/+ marks inside the battery compartment, as follows: BATTERY LIFE Generally speaking, the battery may be used for one year, but the battery life is also related to the usage times and remote controller operation. -
Page 12: Let's Start
LET'S START After this unit is well fixed on the desk or on the wall, and the cords are well connected for input or output, what you should do next is: First, connect the adapter to the LCD TV, then the unit will go into standby mode, and you can see the indicator goes into red. -
Page 13: Tv Menu Setup
TV MENU SETUP This product can store up to 100-channel programs (0 99). You can select your favorite channel through [CH+/-] or number buttons, and you can scan and store all of the channels through manual or automatic mode. In TV mode, press [SETUP] button into the main menu and the main menu will show as follows: Through pressing [ ] button on the remote control, PICTURE... -
Page 14: Sound
TV MENU SETUP S O U N D Select " "and menu will show as follows: SOUND SOUND USER BALANCE BASS TREBLE BBE VIVA SELECT ENTER RETURN SETUP Press [ ] button to select item and press [ ] button to adjust . The following is sound item description. -
Page 15: Tv Setting
TV MENU SETUP T V S E T T I N G Select " " and tuning menu will show as follows: TV SETTING CHANNEL CHANNEL EDIT FINE TUNE 168.90MHZ MANUAL SEARCH AUTO SEARCH SELECT ENTER RETURN SETUP Press [ ] button to select item and press [ ] button to adjust or activate. - Page 16 TV MENU SETUP CHANNEL EDIT CHANNEL SKIP SWAP Description Item To select current channel here. CHANNEL To select "Yes " or "No ", you can select "Yes " to make current SKIP channel unaccessible while using [CH+/-] button to browse channels.
-
Page 17: System Setting
TV MENU SETUP SYSTEM SETTING You can setup some system configuration here. Press [ ] to select " " item and press [ ] or [OK] button to enter the following section: SYSTEM SETTING COLOR SYSTEM AUTO SOUND SYSTEM ENGLISH LANGUAGE TRANSPARENCY RESET... -
Page 18: Nicam/Bilingual Receiving
TV MENU SETUP NICAM/BILINGUAL RECEIVING If you can receive Nicam/bilingual signal, you can operate as follows to enjoy that. You can select Nicam stereo, mono channel or bilingual through NICAM button on the remote control. If stereo signal is too weak, this unit will switch into mono channel automatically. When selecting mono channel, "MONO"... -
Page 20: Teletext Function
TELETEXT FUNCTION ZOOM IN TELETEXT When teletext page shows, you may double zoom in to display this teletext page; Press [SIZE] button to zoom in the upper half part of teletext page; Press [SIZE] button again to enter the under half part of teletext page; Press this button for the third time to return to original display mode. -
Page 21: Av, S-Video , Scart And Ypbpr Setup
AV, S-VIDEO, SCART AND YP SETUP VIDEO SETTING MENU When in AV/ S-VIDEO/SCART input mode, there are 6 color system modes for selection: "Auto", "PAL"," N 3.58", "N 4.43", "PAL60" and "SECAM". Select the right system for your video program. If you do not know which mode your video playback devices and video media is using, you should select the auto mode or you should check and confirm this with your supplier. -
Page 22: Vga Setup
VGA SETUP With the VGA mode supported up to 1024*768@75Hz, and speakers built in, you can use this unit as a multimedia PC monitor. When this unit works in VGA mode, the following setup can be done. Press [SETUP] button to enter main section. Press [ ] button to select sections and then press [ ] button or [OK] button to enter. -
Page 23: Sound
VGA SETUP Here shows the color temperature sub menu. COLOR TEMPERATURE COLOR USER GREEN BLUE Press [ ] button to select item and press [ ] button to change and adjust value of item. Item Description Select color temperature mode :"User", "C6500", "C8700", COLOR "C9300". -
Page 24: Monitor Setting
VGA SETUP M O N I T O R S E T T I N G Press [ ] button to select " " and press [ ] or [OK] button to enter. MONITOR SETTING PHASE FREQUENCY H-POSITION V-POSITION SELECT ENTER RETURN SETUP... -
Page 25: Function
VGA SETUP F U N C T I O N Press [ ] button to select " ", and press [ ] or [OK] button to enter. FUNCTION OSD H-POS OSD V-POS ENGLISH LANGUAGE TRANSPARENCY RESET SELECT ENTER RETURN SETUP Press [ ] button to adjust value of item. -
Page 26: Time Setting
TIMER SETTINGS TIMER SETTING At any display mode you press [TIMER] button, calendar will show on the screen: CALENDAR 2005-04-03 12:13:35 SET TIME SET TIMER ON SET TIMER OFF Item Description Press [ /OK] button to go to the set time sub menu. SET TIME Press [ /OK] button to go to the set timer on sub menu. - Page 27 TIMER SETTINGS HOUR 2 and MINUTE 2 set for the TIMER 2 for auto power on ,ACTIVATE 2 can be set for activate setting for TIMER 2. You can choose ON/OFF and ONCE on ACTIVATE 2. When ON is selected, timer 2 will always enable auto powering on . When you select OFF ,timer function will be disable .If you select "ONCE", timer 2 will enable auto powering on and, after it powers on automatically for the first time, the setting will go to "OFF"...
-
Page 28: General Setting
DVB OPERATION Power on and switch signal source to DVB mode and the unit begins to work. Press the [DVB MENU] button, the Main Menu will be displayed, in which you can set your preferences, Search for channels, edit the channels list or your favourite list , viewing Programme Guide Information, etc. -
Page 29: Adanced Setting
DVB OPERATION Choose OFF to shut off the Antenna power ,if you have a passive or a self powered active ANTENNA . Warning: You should never shortcut the antenna jack, it may cause injury or damage some unit. The receiver is only able to supply DC 5V/50mA(MAX), never connect heavy load to the receiver, it may cause damage. -
Page 30: Auto Search
DVB OPERATION Note: The Default Password is "000000". If you have forgotten your Password, please contact your local product distributor. Clear Channels If you just want to delete the Channel List, select the Clear Channels item. 1. Select the Clear Channels item using the[ ] or press [OK] button. -
Page 31: Manual Search
DVB OPERATION MANUAL SEARCH You can search channels manually by searching parameters. Note: Select different item using the[ ]button, Press the[ ]button to do your setting. Press the [DVB MENU] button to save the changes and return to the previous menu. Channel Select your desired frequency channel to search using the [ ] button. -
Page 32: Channel Setting
DVB OPERATION After finishing all the setting above ,select the Search item to start searching. The searching result will be displayed in the Search Result window. Note: If you press the [DVB MENU] button during searching, the operation is stopped and the channels found until then will be saved. -
Page 33: Epg
DVB OPERATION Channel Sort You can sort all TV or Radio channel lists by channel ,name or free/scrambled. Note: Select the different sort ways using the [ ]button, then press [OK] button to confirm. Ascending Sort Channel lists are sorted by channel name from A to Z. Descending Sort Channel lists are sorted by channel name from Z to A. -
Page 34: Display Troubleshooting
TROUBLESHOOTING Please check for causes of problems in accordance with the following chart before contacting any maintenance personnel. DISPLAY TROUBLESHOOTING Causes and Correction Symptom Check whether power cord is well connected, and whether this unit is power on Black screen, power indicator light off Check whether the signal cord of input device is well connected... -
Page 35: Specifications
SPECIFICATIONS Size 15.0 (diagonal) Display proportion 304.1 mm(H)X228.0 mm(V) Type TFT color LCD screen Pixel distance 0.297 mm(H)X0.297mm( V) View angle 80(L)/80(R)/80(T)/55(B) Hor scanning frequency 30 kHz 75 kHz Ver scanning frequency 50 Hz 75 Hz Frequency Display color 16.7M color Display mode Recommended mode 1024X768@75 Hz... -
Page 36: Display Mode
DISPLAY MODE SUPPORTED PC INPUT MODE Hor scanning frequency Ver scanning frequency Pixel frequency Format Resolution (KHz) (Hz ) (MHz) 640 350 31.5 70.0 25.17 31.5 70.0 720 400 28.32 31.5 60.0 640 480 25.18 37.9 72.0 640 480 31.50 VESA 37.5 75.0... - Page 37 DISPLAY MODE SUPPORTED VIDEO INPUT MODE Hor scanning frequency Ver scanning frequency Vert scan type Format 720X480 31.47 59.94 480P 720X480 15.734 59.94 480i 720X576 31.25 576P 720X576 15.625 576i NOTE Specifications and design are subject to change without notice.
- Page 38 ACCESSORIES Please check the following accessories. Remote control and battery User manual Coaxial digital audio cord Power adaptor Wall Mount Holder Kit AK556(optional) Audio cord Wall Mount Holder Kit AK558(optional) AV cord Kickstand Kit...
