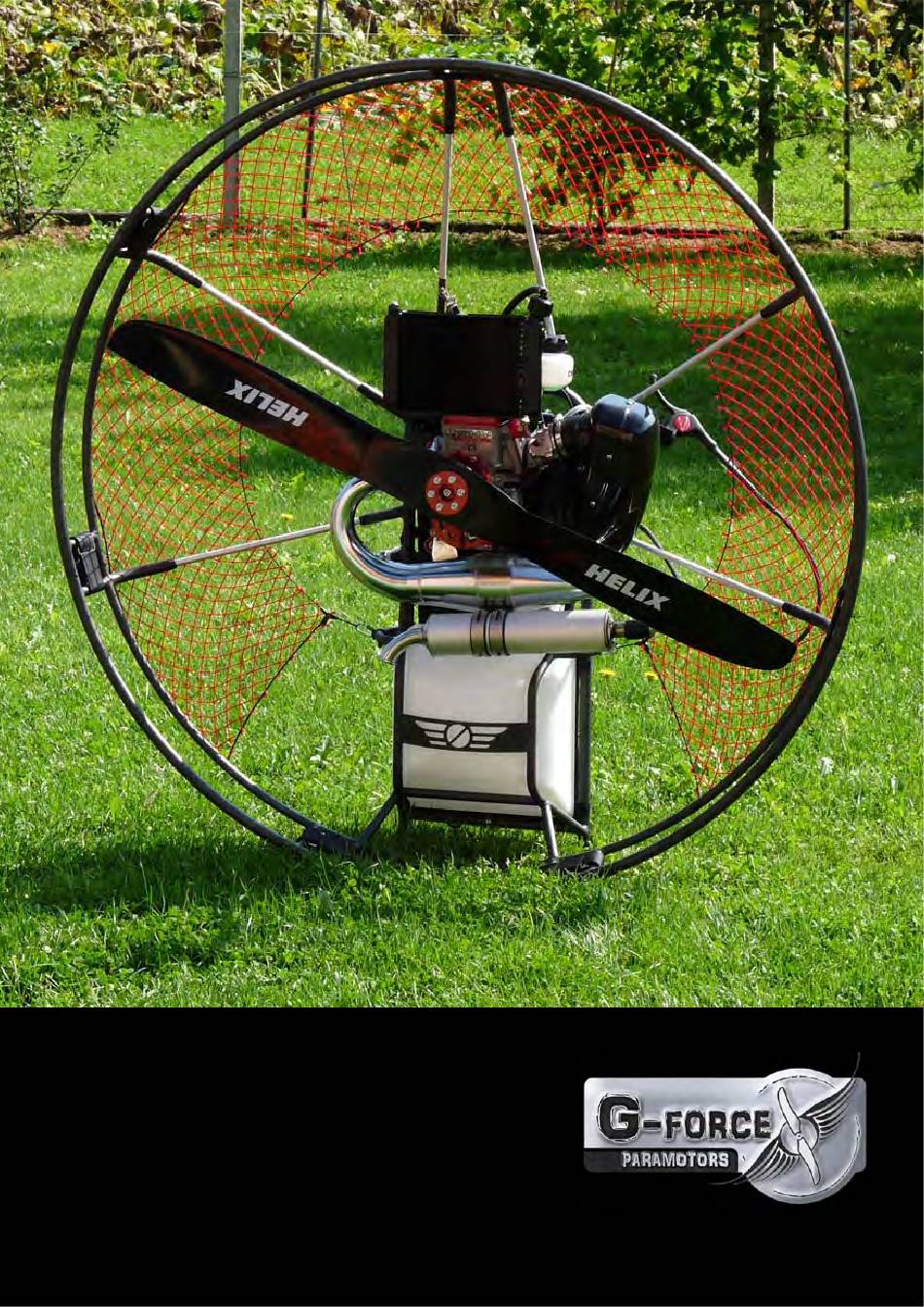

  • Page 1 ASSEMBLING OPERATION SERVICE SKY 100 MANUAL...

  • Page 2: Table Of Contents

    ASSEMBLING OF THE PROPELLER ASSEMBLY INSPECTION TECHNICAL DATA OF THE ENGINE CARBURETOR – FUEL AND OIL IGNITION AND ELECTRIC JOYSTICK PRE-FLIGHT CHECK SPARE PARTS LIST DIAGNOSING AND STARTING A FLOODED ENGINE REGULAR CHECKS AND MAINTENANCE TERMS OF GUARANTEE WARRANTY ZERTIFICATE SKY 100 MANUAL...

  • Page 3: Important Notices

    This PPG is not covered by product liability insurance. Do not start it or fly it unless you are willing to assume all risks inherent in the sport of Powered Paragliding and all responsibility for any property damage, injury or death which may result from the use of this product. SKY 100 MANUAL...
  • Page 4  Never use the motor without propeller or without reduction drive. SKY 100 MANUAL...

  • Page 5: Assembling Of The Paramotor

    - a.) central module - b.) cage - c.) 2x long supports - d.) 4x middle supports Top position: long supports Middle position: middle supports Bottom position: middle supports Assemble the complete cage and close all velcro straps SKY 100 MANUAL...
  • Page 6 Insert assembled cage first in top position after that insert middle and bottom position. Close bottom velcro straps on both sides. Close netting with carabineer on both sides. SKY 100 MANUAL...
  • Page 7 ASSEMBLING OF THE HARNESS AND THE DISTANCE BARS Harness has to be connected with the special buckles. Conncet harness with both buckles to the frame. SKY 100 MANUAL...
  • Page 8 Fix the distance bars with the special pin. Distance bars are moveable vertically and horizontally. Fix the shoulder strap correctly to the harness. SKY 100 MANUAL...
  • Page 9 The shoulder straps are adjusted depending on pilot weight. The flight position is optimal when the propeller shaft line is 5 ° to a maximum of 10 ° below the horizontal line. horizontal line propeller shaft line SKY 100 MANUAL...

  • Page 10: Assembling Of The Propeller

    ASSEMBLING OF THE PROPELLER On the SKY paramotor can be mounted a wood or carbon propeller Mount the propeller with the six M6 screw with a torque of 10Nm. Please use only original propellers otherwise you lose your warranty. SKY 100 MANUAL...

  • Page 11: Assembly Inspection

     Check that nothing can get in the prop. The prop should clear the cage by same distance at all points.  Check the fuel tank and fuel delivery system.  Check for correct mounting of prop, and correct torque of prop bolts. SKY 100 MANUAL...

  • Page 12: Technical Data Of The Engine

    12 Liter max. Piloten Weight < 90 kg Consumption ca. 3 – 4 L / hour Flight Time up to 4 hours U/min 0 - 10000 Thrust up to 55 kg Climbing Rate up to 2 m/sec. SKY 100 MANUAL...

  • Page 13: Carburetor - Fuel And Oil

    13 ml 40 ml 25 ml 80 ml 50 ml 120 ml 75 ml 160 ml 100 ml 200 ml 125 ml 400 ml 250 ml The fuel oil mixture should not be older than 1 month! SKY 100 MANUAL...

  • Page 14: Ignition And Electric

    IGNITION AND ELECTRIC Spark plug : NGK BR7ES SKY 100 MANUAL...
  • Page 15 SKY 100 MANUAL...

  • Page 16: Joystick

    Since it’s important to know how to stop the engine once it’s started, let’s cover “Stopping the Engine” first. To stop the engine, simply depress the “STOP” button and hold it until the engine comes to a complete stop. SKY 100 MANUAL...

  • Page 17: Pre-Flight Check

    PROPELLER CLEAR – START PARMOTOR – NO PERSONS NEAR BY STARTING THE PARAMOTOR CARRY OUT A TEST AT FULL THROTTLE AFTER WARMING UP! TEST THE SWITCH-OFF FUNCTION! PILOT PROPERLY HOOKED IN? WIND DIRECTION AND WIND FORCE? TAKE OFF AREA CLEAR ? TEST FOR LEAKS? SKY 100 MANUAL...

  • Page 18: Spare Parts List

    SPARE PARTS LIST SKY 100 MANUAL...
  • Page 19 SKY 100 MANUAL...
  • Page 20 SKY 100 MANUAL...
  • Page 21 SKY 100 MANUAL...
  • Page 22 SKY 100 MANUAL...

  • Page 23: Diagnosing And Starting A Flooded Engine

    Defective spark plug Replace it Clean and dry the spark plug or Blockened spark plug or wet replace it Earthened switching off cable Check the wiring Spark plug hood Check it SKY 100 MANUAL...
  • Page 24 The reed valve has problems valve Dirty air filter Clean or replace it Clean or replace the deadening Dirty exhaust system material Engine revved up when Out-of-adjustment screws Calibrate the carburetor idling Air through the gaskets Replace the gaskets and seals SKY 100 MANUAL...

  • Page 25: Regular Checks And Maintenance

    Replace the silencer deadening material Disassemble the reduction gear and check the clutch and bell wear Replace the piston and piston rings Every 200 hours Replace the reed valve Replace all the bearings and seals Every 400 hours Replace the crankshaft SKY 100 MANUAL...

  • Page 26: Terms Of Guarantee

    TERMS OF GUARANTEE G-Force Paramotors will warrant their product to be free from defects in materials and workmanship for a period of twelve (12) months from the date of purchase. This warranty applies to the product in normal usage situations only. The dealer, from whom you purchased the product, or G-Force Paramotors, will repair the product free-of-charge.

  • Page 27: Warranty Zertificate

    ______________________________________ Date of purchase: ______________________________________ Address: ______________________________________ This warranty certificate is valid 1 year after purchase. Please read this manual carefully. For further question please ask your dealer or direct G-Force Paramotors. DEALER G-Force Paramotors ________________ ________________________ G-Force Paramotors Paurach 55, A-8332 Edelsbach Tel.: +43 (0) 664 91 55 160...
