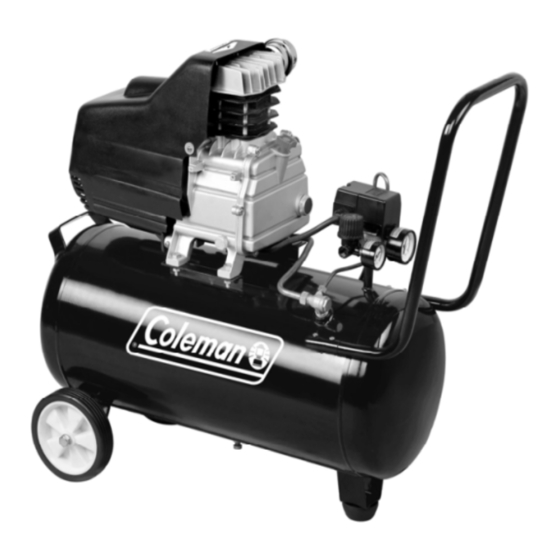

OPERATOR'S MANUAL
3.5HP/11-GALLON
11GAL AIR COMPRESSOR
Cat. 02011 32
IMPORTANT
: READ OPERATOR'S MANUAL BEFORE USING
Manufactured in China
Toll Free Helpline: 1-855-900-2653
©2010 Alton Industry Group, Ltd. – All Rights Reserved
Coleman○
and
are registered trademarks of The Coleman Company, Inc. used under
R
license. ©2010 The Coleman Company, Inc.
Advertisement
Table of Contents
Summary of Contents for Coleman CM 01205-11
- Page 1 IMPORTANT : READ OPERATOR’S MANUAL BEFORE USING Manufactured in China Toll Free Helpline: 1-855-900-2653 ©2010 Alton Industry Group, Ltd. – All Rights Reserved Coleman○ are registered trademarks of The Coleman Company, Inc. used under license. ©2010 The Coleman Company, Inc.
-
Page 2: Table Of Contents
------------------------------------------------------------------------------------------8 TROUBLESHOOTING CHART ---------------------------------------------------------------------------------9 EXPLODED VIEW & PARTS LIST ---------------------------------------------------------------------------10 WARRANTY----------------------------- ---------------------------------------------------------------------------11 SPECIFICATION ITEM NO-------------------------------------CM 01205-11 PUMP------------------------------------------OIL LUBRICATED DIRECT DRIVE MOTOR---------------------------------------2.5 Continuous HP VOLTAGE/AMPS/PHASE----------------120/15/1 AIR TANK CAPACITY---------------------11 GALLON CUT-IN PRESSURE-----------------------95 PSI CUT-OUT PRESSURE-------------------125 PSI CFM @ 40 PSI------------------------------5.0 CFM @ 90 PSI------------------------------4.0 POWER CORD-----------------------------STW 14 AWG / 72”... -
Page 3: Safety Guidelines
SAFETY GUIDELINES This manual contains information that relates to PROTECTING YOUR SAFETY PREVENTING EQUIPMENT and is very important for you to know and understand. We use the symbols below to help you PROBLEMS recognize this information. DANGER POTENTIAL HAZARD THAT WILL RESULT IN SERIOUS INJURY OR LOSS OF LIFE WARNING POTENTIAL HAZARD THAT COULD RESULT IN SERIOUS INJURY OR LOSS OF LIFE CAUTION... -
Page 4: Basic Compressor Features
BASIC COMPRESSOR FEATURES A--------ELECTRIC MOTOR B--------AIR COMPRESSOR PUMP C--------PRESSURE SWITCH D--------PRESSURE RELIEF VALVE E--------AIR PRESSURE REGULATOR F--------TANK PRESSURE GAUGE G--------REGULATED PRESSURE GAUGE H--------AIR LINE OUTLET I---------AIR TANK DRAIN VALVE J---------AIR TANK K--------POWER CORD - 4-... -
Page 5: Electric Motor
BASIC COMPRESSOR FEATURES A. ELECTRIC MOTOR: The motor is used to power the pump. It contains a thermal overload protector and an automatic reset. If the motor overheats for any reason, the thermal overload protector will shut it down to prevent the motor from being damaged. The motor will automatically restart when it completely cools. -
Page 6: Assembly
ASSEMBLY 1. Unpack the air compressor and inspect the unit for damage and parts. If the unit has been damaged or some parts are missing, contact the Service Center immediately. 2. Check the serial tag label to ensure that it has the required pressure rating for its intended use. -
Page 7: Operation
OPERATION PRIMING THE PUMP NOTE: The pump is shipped oil. Before starting, pour WITHOUT in oil provided in the pump through the oil nozzle. The break-in oil should be changed after 8 hours of operation. To reduce maintenance and repair problems, use only premium compressor oil. -
Page 8: Maintenance Chart
MAINTANCE CHART WARNING To avoid personal injury, always shut off and unplug the unit and relieve all air pressure from the system before performing any service on the air compressor. Regular maintenance will ensure trouble free operation. The items listed in the chart should be inspected on a regular basis. -
Page 9: Troubleshooting Chart
TROUBLESHOOTING CHART NOTE: Troubleshooting problems may have similar causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTION Power cord not plugged in Plug cord into grounded outlet Pressure Switch in “OFF” position Turn switch to “ON” position Wrong gauge wire or length of Check chart on page 2 for proper gauge wire and cord extension cord length... -
Page 10: Exploded View & Parts List
EXPLODED VIEW PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION 1-------------1-------Shroud 12----------------1-------Handle 2-------------1-------Fan 13----------------1--------Pad kit 3-------------1-------Elbow 14----------------1--------Drain valve 4-------------1-------Air filter 15----------------4--------Bolt 5-------------1-------Pump/motor assembly 16----------------4--------Bolt 6-------------1-------Oil fill plug 17----------------1--------Air tank 7-------------1-------Relief valve 18----------------2--------Wheel kit 8-------------1-------Pressure switch 19----------------1--------Check valve 9-------------1-------Adapter fitting 20----------------1--------Bleeder tube 10-----------1-------Regulator 21----------------1--------Transfer tube 11-----------2-------Pressure gauge 22----------------1--------Capacitor... -
Page 11: Warranty
GreatNeck○ Saw Manufacturers, Inc 1 year Limited Warranty This warranty covers any defects in materials or workmanship of the enclosed product. GreatNeck Inc. will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes.
