Summary of Contents for Suntek HC-300M
- Page 1 GPRS/MMS DiGital infRaReD tRail CaMeRa HC-300M User’s Manual...
-
Page 2: Table Of Contents
table of Contents 1 Instructions..........................................1 1.1 General Description ......................................1 1.2 Camera Body Interfaces ....................................1 1.3 Camera Components and Features…................................1 1.4 Remote control ........................................1 1.4.1 Navigating ........................................2 1.4.2 Characters ........................................2 1.5 Shooting Information Display ...................................2 1.6 MMS function……………………………………….……………….….......................…2 1.7 Supported Format......................................2 2 Cautions..........................................3 3 Easy Operations.........................................4 3.1 Power Supply........................................4... -
Page 3: Instructions

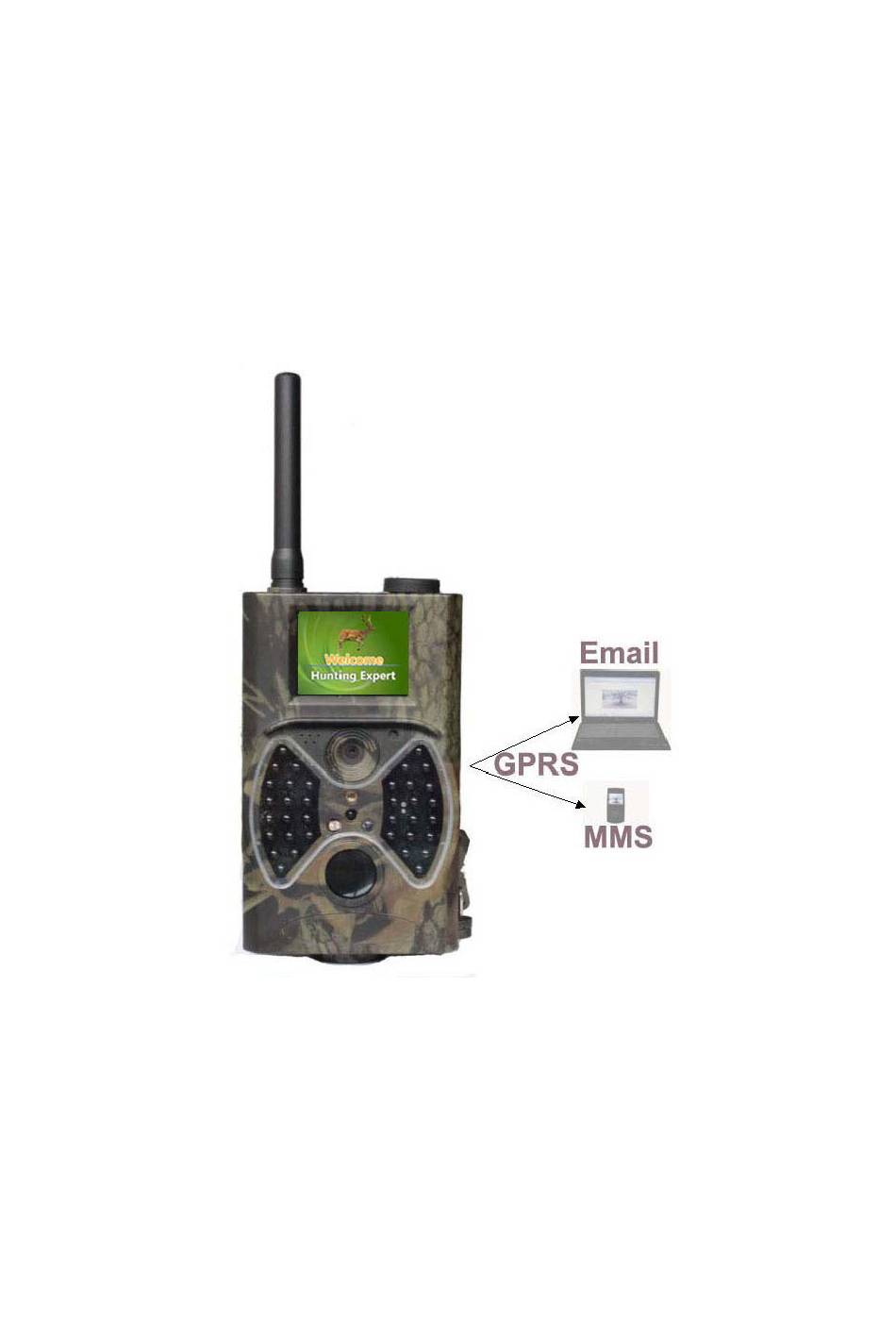

1. instructions 1.1 General Description This camera, a digital trail with MMS function, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips (WVGA or QVGA). -
Page 4: Navigating
1.4.1 navigating Press UP or DOWN to select or highlight the menu item, while press LEFT or RIGHT to select the option of each item and press OK to make selection. 1.4.2 Characters Press the punctuation “*” for laser pointer. 1.5 Shooting information Display When the camera is turned on (the power switch is slid to TEST position), the shooting information will bedisplayed in the monitor. -
Page 5: Cautions
2. Cautions The working voltage of the camera is 6.0V. The camera is supplied by four or eight AA batteries. Please unlock the write-protect before inserting the SD-card. Please insert the SD-card when the power switch is at OFF position before testing the camera. Please do not insert or take out the SD-card when the power switch is at ON position. -
Page 6: Easy Operations
3. easy Operation 3.1 Power Supply To supply power for the camera, four or eight AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF (Right) position, pull out the battery depot. Load the fully charged batteries into the depot according the polarities sign shown below. -
Page 7: Power On And Enter Into The On Mode
3.3 Power on and enter into the On Mode Before switching on, please pay attention to the following: 1. Avoid temperature and motion disturbances that could be construed as animals or humans such as trees that are exposed to direct sunlight for much of the day or any other heat source. -
Page 8: Advanced Operations
4. advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is at OFF position (Right). 2. ON mode: Power switch is at ON position (Left). 3. -
Page 9: Video Setting
4.1.2 Video Setting 4.1.3 System Setting 4.1.4 MMS Setting Page7... -
Page 10: Smtp Setting
4.1.5 SMtP Setting Page8... -
Page 11: Fix The Setting By Software On The Computer
4.1.6 fix the setting by software on the computer You can fix all the 5 setting parts by software on the computer. Run the MMSCONFIG.exe file from MMSCONFIG folder in CD. Note: pls move all the files in the root directory of MMSCONFIG folder to keep the setting available if you need. Page9... - Page 12 The following window prompts: 1). Fix Menu Setting on PC Clink on Camera and model as you have, then you will see the following interface: Page10...
- Page 13 Fix the Menu setting based on your need. Last, lick on Save to save your settings into the root directory of the SD card (You need to insert the SD card into your computer.)Then one file named Parameter.dat will be created and saved in the directory you just selected. If you selected other directory in the computer, you need to move the Parameter.dat file to the root directory of the SD card before inserting the card in the camera.
-
Page 14: Default
First, you need to choose how you like to set up the SMTP Mode: Auto or Manual. If you choose Auto, then you need to choose the country and Mobile Phone Network Operator (MPNO). You could fix the number of pictures sent at a day from 0 to 99.After doing that, the below section will populate with parameters pertaining to the selected Operator, such as APN. -
Page 15: General Settings
4.1.8 General Settings The operating steps are suitable for following menu items: Camera Mode, Photo Size, Video Size, Multi, Video Length, Delay, Timer and GSM Mode. 4.1.9 Set Camera Mode There are three camera modes: Camera, Video and Camera+Video. The way to set the camera mode is via setting menu. The following shows how to set camera mode to Video, provided that the previous option is Photo: a) Press MENU to display the setting menu. -
Page 16: Set Multi
You can change the date and time of the device by setting this parameter when necessary, e.g., after every battery change. The date format is day/month/year, the time format is hour: minute: second. The valid value for year is between 2010 and 2050. Provided that the date and time are needed to be set to November 15th, 2011 and half past ten, the steps are as following: a) Press MENU to display the setting menu. -
Page 17: Enter Password
4.1.21 enter Password If the password setting is selected as On, after switching on the camera, the LCD screen on camera will prompt to enter password. The default password is off. It can be changed where the steps are as following: a) Press MENU to display the setting menu. -
Page 18: Appendix I: Technical Specifications
Appendix I: Technical Specifications Image Sensor Type(True Megapixels) 12 Mega Pixels Color CMOS Memory SD Card 8MB~32GB Lens F=3.1; FOV=60° Size 145mm * 80mm * 55 mm IR Filter Full Automatic IR Filter TFT Display Screen 2.0 inch PIR Sensitivity 3 sensitivity levels:High/Normal/Low PIR Sensor Sight Angle 100 Degrees...
