WARNING:
This Unit employs Components that tend to produce arcs or sparks – To
prevent fire or explosion, do not install in compartments containing
batteries or flammable materials- SHOCK HAZARD. DO NOT OPEN.
CAUTION:
Provided with integral protection against overloads. To Prevent fire, do
not cover or obstruct ventilation openings. Do not mount in Zero-Clearance
compartment. Overheating may result. For continued protection against risk
of fire, replace only with the same type and fuse rating: 10A
Notice :
The output of this device is not sinusoidal. It has a total harmonic distortion
of 30% percent and maximum single harmonic of 8 percent

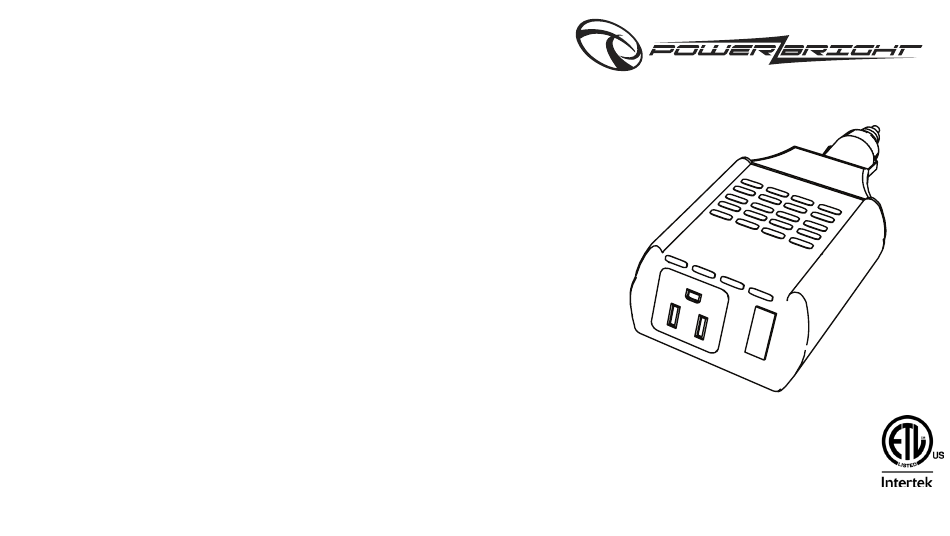

DX100
Owner's Guide
3149458
Conforms to UL Std. 458，
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Power Bright DX100
Summary of Contents for Power Bright DX100
- Page 1 10A Notice : The output of this device is not sinusoidal. It has a total harmonic distortion of 30% percent and maximum single harmonic of 8 percent DX100 Owner's Guide 3149458 Conforms to UL Std. 458，...
-
Page 2: Important Safety Information
Connected to the 12 volt outlet in your vehicle, the DX100 efficiently and reliably powers a widevariety of loads through both the AC outlet and USB port. Read this guide before connecting or using the DX100 and save it for future reference. 2 Important Safety Information... -
Page 3: Warnings And Cautions
Do not use the DX100 in the presence of flammable fumes or gases, such as in the bilge of a gasoline powered boat, or n ear propane tanks. Do not use the DX100 in an enclosure containing automotive-type, lead-acid batteries. - Page 4 CAUTION: Risk of Fire. Do not replace any vehicle fuse with a rating higher than recommended by the Vehicle Manufacturer. The cigarette lighter connector is rated to draw up to 10 amperes from a 12V vehicle outlet. Ensure that the electrical system in your vehicle can supply this product without causing the vehicle fusing to open.
- Page 5 CAUTION: Output non-sinusoidal Some chargers for small nickel-cadmium batteries can be damaged if connected to the DX100 . Do not use the inverter with the following appliances: • Small battery-operated appliances like rechargeable flashlights, some rechargeable shavers, and night lights that are plugged directly into an AC receptacle to recharge.
-
Page 6: Additional Safety Guidelines
Failure to follow these safety guidelines may cause personal injury and/or damage to the DX100 . It may also void your product warranty. 3 Safety Features These advanced safety features are built into the DX100 • Overload protection with automatic shutdown •... -
Page 7: Inverter Features
Inverter Features PowerBright® DX100 Ventilation Openings USB Port AC Outlet Figure 1 Features and Accessories... -
Page 8: Using The Inverter
5 Using the Inverter Through its AC outlet, the DX100 is capable of powering most 120V AC products that use 100 W or less. The DX100 can also power or charge most consumer electronics that have USB power ports. The DX100 ’s AC output waveform, called “modified sine wave”... - Page 9 DC cable port. Failure to do so will result in reverse polarity and a blown fuse. Plug the DC cable into the DC cable port on the DX100. Observe correct polarity. Insert the cigarette lighter plug into the 12V outlet.
-
Page 10: Inverter Operation
When theDX100 senses that the voltage at its DC input has dropped to 10.5V, the inverter automatically shuts down and the light glows RED, indicating a fault. This prevents the battery from being damaged. Turn off any devices that the DX100 is powering. - Page 11 • If an AC product rated higher than 100W is plugged into the DX100 , the inverter will shut down. The RED FAULT light comes on. • If the DX100 exceeds a safe operating...
-
Page 12: Battery Operating Time
The DX100 can operate while the engine is running, but the normal voltage drop that occurs during starting of the engine may trigger the... -
Page 13: Interference With Electronic Equipment
Buzzing sound in audio systems and radios Some inexpensive stereo systems and AM-FM radios have inadequate internal power supply filtering and will “buzz” slightly when powered by the DX100 . Generally, the only solution is an audio product with a higher quality filter. -
Page 14: Troubleshooting
7 Troubleshooting PROBLEM: AC product will not operate, no inverter lights are Possible cause Solution Battery is defective. Check battery and replace if required. Loose connections. Check connections. PROBLEM: Measured inverter output is too low. Possible cause Solution Standard “average- Inverter’s “modified sine reading”... - Page 15 Possible cause Solution Battery voltage is toolow. Recharge battery. PROBLEM: AC product will not operate, red FAULT light ON. Possible cause Solution AC product(s) connected Use a product with a power are rated at more than the rating less than the inverter’s inverter’s continuous continuous power rating.
-
Page 16: Specifications
8 Specifications Specifications are subject to change without notice. AC Power Outpu t 120VAC/60Hz 100W AC output voltage (nominal) 100W Continuous AC output power 200W Peak AC output power AC output frequency 60 ± 1Hz AC output waveform Modified sine wave USB Power Outpu t DC output voltage 5 VDC... - Page 17 DC Power 13.8 V DC, 10A Max DC input voltage range Battery drain with no AC load 0.33A (at 12 V input) Efficiency (maximum) Low battery shutdown point (nominal) 10.5V High battery shutdown point 15.5V (nominal) Physical 5.8 x 2.8 x 1.5 Dimensions (L ×...
-
Page 18: Warranty And Return
What does this warranty cover? This Limited Warranty is provided by PowerBright ("PowerBright") and covers defects in workmanship and materials in your DX100. This warranty period lasts for 24 months from the date of purchase at the point of sale to you, the original end user customer. - Page 19 shipment to the customer, whichever is greater. All replaced products and all parts removed from repaired products become the property of PowerBright. PowerBright covers both parts and labor necessary to repair the product, and return shipment to the customer via a PowerBright selected non-expedited surface freight within the contiguous United States and Canada.
- Page 20 What does this warranty not cover? This Limited Warranty does not cover normal wear and tear of the product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to, and PowerBright will not be responsible for, any defect in or damage to: the product if it has been misused, neglected, improp- erly installed, physically damaged or altered, either...
- Page 21 Warning: Limitations On Use Please refer to your product manual for limitations on uses of the product. DX100 SPECIFICALLY, PLEASE NOTE THAT THE SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT OR DEVICES.
-
Page 22: Return Material Authorization Policy
Return Material Authorization Policy Before returning a product directly to PowerBright you must obtain a Return Material Authorization (RMA) number and the correct factory "Ship To" address. Products must also be shipped prepaid. Product shipments will be refused and returned at your expense if they are unauthorized, returned without an RMA number clearly marked on the outside of the shipping box, if they are shipped collect, or if they are shipped to the wrong location. -
Page 23: Return Procedure
Return Procedure Package the unit safely, preferably using the original box and packing materials. Please ensure that your product is shipped fully insured in the original packaging or equivalent. This warranty will not apply where the product is damaged due to improper packaging.
