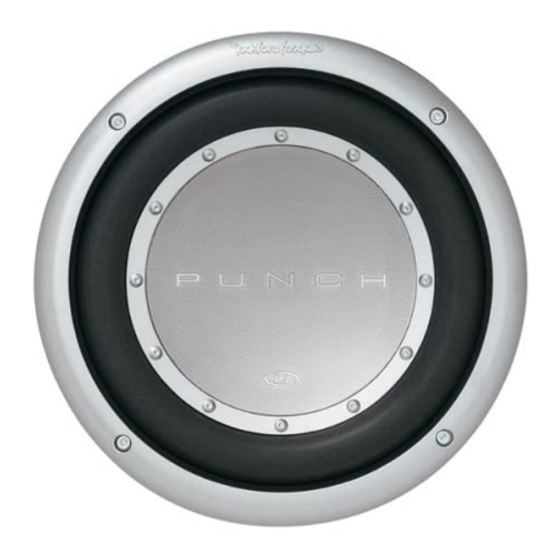

- Page 1 P38D2 Installation & P38D4 Operation Installation et fonctionnement P310D2 Instalación y funcionamiento P310D4 Einbau und Betrieb Installazione e funzionamento P312D2 P312D4 P315D2 Punch Series P315D4 DVC - Dual Voice Coil Woofers...
-
Page 2: Table Of Contents
NTRODUCTION Dear Customer, Congratulations on your purchase of the world's finest brand of car audio speakers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product.Through years of engi- neering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. -
Page 3: Safety Instructions
Installation Section of this manual. Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Recommended Enclosures
ECOMMENDED NCLOSURES This manual outlines two specific types of enclosures that provide distinctly different performance.This section is to help you decide which type is best for your application. SEALED ENCLOSURES Sealed enclosures are the simplest to build.The most important part of building a sealed enclosure is to make sure that the enclosure is airtight. -
Page 5: Vented Enclosures
ECOMMENDED NCLOSURES VENTED ENCLOSURES Vented enclosures vary only from the sealed enclosure in that a vent or port is added to “tune” the enclosure.The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies.The vented design is less linear in response than the sealed box but with noticeably more output at the tuning frequency. -
Page 6: Wiring Configurations
IRING ONFIGURATIONS By varying the wiring configuration of your speakers you can create an impedance load to match your system. Since each voice coil of a DVC speaker carries its own impedance, altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads. -
Page 7: Building An Enclosure
UILDING AN NCLOSURE To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. For optimum performance, we recommend using 3/4" MDF (Medium Density Fiberboard) and internal bracing.The enclosure should be glued together and secured with nails or screws. -
Page 8: Specifications
2" and 2.5" Aluminum Voice Coil Former • Linear Spider • Cast Aluminum Basket with Spider Venting • Optimized for Sealed and Vented Enclosures Model - Punch DVC P38D2 P38D4 P310D2 P310D4 Nominal Impedance (ohms) 2 (2) 4 (2) 2 (2) -
Page 9: Limited Warranty Information
Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product. How to Obtain Service Contact the Authorized Rockford Fosgate Dealer you purchased this product from. - Page 10 Rockford Corporation Rockford Fosgate 546 South Rockford Drive Tempe, Arizona 85281 U.S.A. In U.S.A., (480) 967-3565 In Europe, Fax (49) 8503-934014 In Japan, Fax (81) 559-79-1265 www.rockfordfosgate.com 08/04 B.M. Printed in U.S.A 1230-51239...
