ODYSSEY GT
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODYSSEY GT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Drive Medical ODYSSEY GT

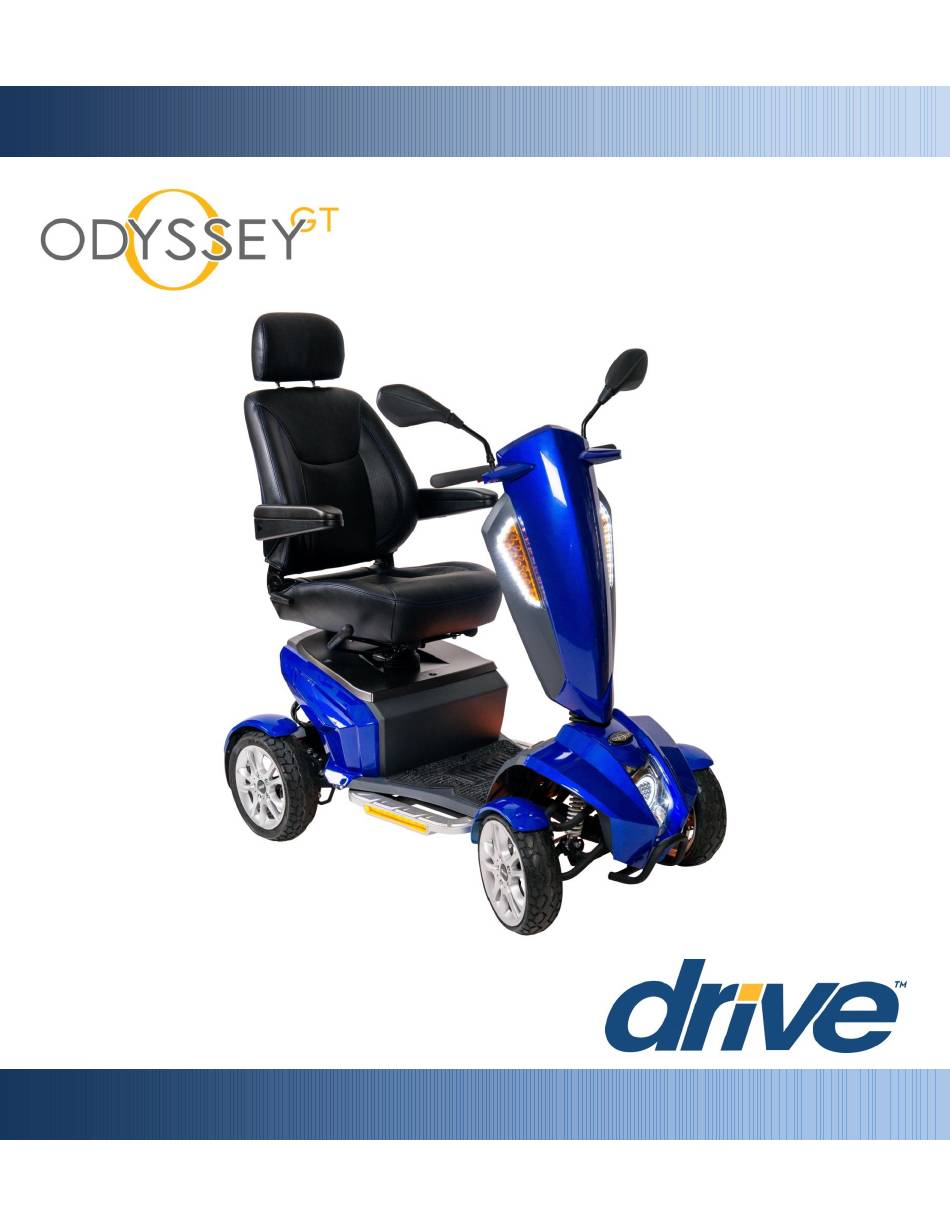

  • Page 1 ODYSSEY GT OWNER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PREFACE SAFETY NOTICES III. SAFETY GUIDELINES EMI & RFI INFORMATION PARTS ASSEMBLY VII. COMFORT ADJUSTMENTS VIII. OPERATION BATTERIES & CHARGING INSPECTION & MAINTENANCE BASIC TROUBLESHOOTING XII. SPECIFICATIONS XIII. LIMITED WARRANTY XIV. ACCESSORIES Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 3: Preface

    The manufacturer disclaims all responsibilities for any personal injury or property damage which may occur as a result of improper or unsafe use of this product. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 4: Safety Notices

     Avoid unnecessary movement of the scooter.  Never reach, lean or bend when driving your scooter. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 5 Do not connect an extension cord to the battery charger.  Disassembling the controller, motor, or charger by anyone other than an authorized Drive Medical service agent is prohibited, and voids any applicable warranty.  Do not take your scooter on roads or highways.

  • Page 6: Safety Guidelines

    MODIFICATIONS Do not modify, remove, disable, or add any parts, features, or functions on your scooter. Drive Medical offers a wide variety of accessories for your scooter to help accommodate your needs. WARNING – Do not modify your scooter in any way; doing so will void the warranty.
  • Page 7 WARNING – Exceeding the maximum weight capacity will void your warranty. Drive Medical will not be held responsible for injuries and/or damages resulting from failure to observe weight capacities. WARNING – Do not carry passengers on your scooter. Your scooter is designed and tested for one user to operate while seated.
  • Page 8 SUGGESTION – If you hear a “clicking” noise when engaging the throttle, but the scooter will not move – turn off the power, engage the freewheel levers, and power back on to continue. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 9 OUTDOOR OPERATION & INCLEMENT WEATHER PRECAUTIONS While your scooter is purposed for in-home use to assist you in daily living activities; Drive Medical understands there are times you need to operate the scooter outdoors, and has designed it to perform superbly on level outdoor surfaces.
  • Page 10 Reduce the forward speed just before the front wheels come in contact with the obstacle, and remain at the reduced speed until scooter has cleared the obstacle, and then you may increase the forward speed. CORRECT INCORRECT APPROACH: APPROACH: Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 11 WARNING – Position yourself as far back possible before transferring, and never place your weight or downward force on adjustable parts. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 12 ATTENTION – Be aware of your own physical limitations when familiarizing yourself with the scooter. ATTENTION – Be aware of precautions, warnings, and safety issues when taking prescribed or over-the-counter drugs while operating your scooter. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 13: Emi & Rfi Information

    WARNING – Be aware of nearby transmitters, such as radio or television stations, and avoid close proximity. WARNING – If you experience unintended movement or brake release occurs, power off as soon as it is safe. Please report EMI incidents to Drive Medical. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 14: Parts

    7. Tiller Assembly 8. Tiller Adjustment Handle 9. Turn Signals 10. Headlight 11. Front Bumper 12. Seat Swivel & Release Lever 13. Footboard 14. Accessory Post 15. Tail Lights 16. Freewheel Lever 17. Anti-tip Wheels Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 15 Owner’s Manual. 1. Display Screen 2. Speed Up 3. Speed Down 4. High/Low Speed 5. Parking/Head Light 6. Hazard Lights 7. Left Turn Signal 8. Right Turn Signal 9. Horn 10. Throttle Lever Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 16: Assembly

    Step 2: Remove the 3 screws securing the battery cover to the scooter with a large flathead screwdriver. Step 3: Connect the batteries by connecting the battery wire harness to the scooter wire harness. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 17 Attach the seat by lifting up on the handle underneath the seat, and placing the seat down on the seat post. Release the handle and rotate the seat side-to-side to lock the seat in place. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 18 Adjust the seat post to the desired height, and reinstall the nut and bolt removed. Be sure the nut and bolt are tightened securely to reduce vibrations, and improve stability. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 19: Comfort Adjustments

    Armrest Angle: The angle of the armrest can be adjusted by first flipping the armrest in the up position, then rotate the knob located under the armrest pad to the desired angle. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 20 The angle of the tiller can be adjusted to infinite positions to suit each user. Push or pull the lever on the scooter tiller to adjust to the desired position, release the lever to lock in place. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 21: Operation

    When the scooter is turned on, the battery gauge will display red, orange, and green indicators: Red: Your scooter should be charged as soon as possible. Orange: Do not drive your scooter for a long trip. Green: Your scooter has full battery capacity. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 22: Batteries & Charging

    SUGGESTION – If you use your scooter infrequently, charge the batteries once a week for 10 to 14 hours. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 23 SUGGESTION – When transporting your scooter on public transportation contact your carrier’s ticket counter in advance to determine their specific requirements. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 24: Inspection & Maintenance

    Your scooter is an advanced mobility device, and with the correct routine maintenance you can ensure years of maximum use. While some of the maintenance can be done by yourself, you may need assistance from an authorized Drive Medical provider. If you have any doubts, contact your authorized Drive Medical provider.
  • Page 25 WARNING – Never hose off your scooter or expose it to direct contact with water. WARNING – Never use any chemicals on the upholstery of your seat, this may cause the seat to dry out and crack. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 26 Drive Medical provider for information on proper disposal. CONTACTING YOUR AUTHORIZED DRIVE MEDICAL PROVIDER The following conditions may indicate a serious problem with your scooter. Contact your authorized Drive Medical provider if one of the following conditions occurs:  Motor or gearbox noise ...
  • Page 27 Check the entire scooter and clean any mud, dirt, hair, food, drink, etc. on the unit SUGGESTION – Once a year take your scooter to an authorized Drive Medical provider for inspection and maintenance. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 28: Basic Troubleshooting

    ATTENTION – Your scooter may have a diagnostic light on the tiller that will stay on constantly. The light will begin to flash when you have a serviceable item. Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...

  • Page 29: Specifications

    254 LBS. * Speed and range vary with user weight, type of terrain, battery charge and condition The information contained herein is correct at the time of publication; Drive Medical reserves the right to alter specifications without prior notice. Odyssey GT Owner’s Manual www.drivemedical.com...

  • Page 30: Limited Warranty

    ADDITIONAL COMPONENTS Items not mentioned or listed are covered at the discretion of Drive Medical. Any accessories, standard or optional, supplied by Drive Medical, are covered for a period of one year from the date of purchase with the particular unit.
  • Page 31 REPLACEMENT PARTS WARRANTY Some states do not allow limitations on how long an implied warranty lasts or do Parts that are supplied by Drive Medical as replacements to warranted parts will be not allow the exclusion or limitation of warranted for a period of time equal to the incidental, punitive, special and remainder of the original part’s warranty...

  • Page 32: Accessories

    XIV. ACCESSORIES Add functionality and convenience to your Drive scooter with these options and accessories. Contact your authorized Drive Medical provider or visit www.drivemedical.com for more information. Dust Cover Trailer Oxygen Tank Holder Crutch/Cane Holder Part#: AZ3000 Part#: AT1000 Part#: AH2000...
  • Page 33 Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 34 Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 35 Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
  • Page 36 Drive Medical Design & Manufacturing 99 Seaview Boulevard Port Washington, NY Tel: (516) 998-4600 Fax: (516) 566-2043 www.drivemedical.com Odyssey GT Owner’s Manual www.drivemedical.com REV.2.08.25.16...
