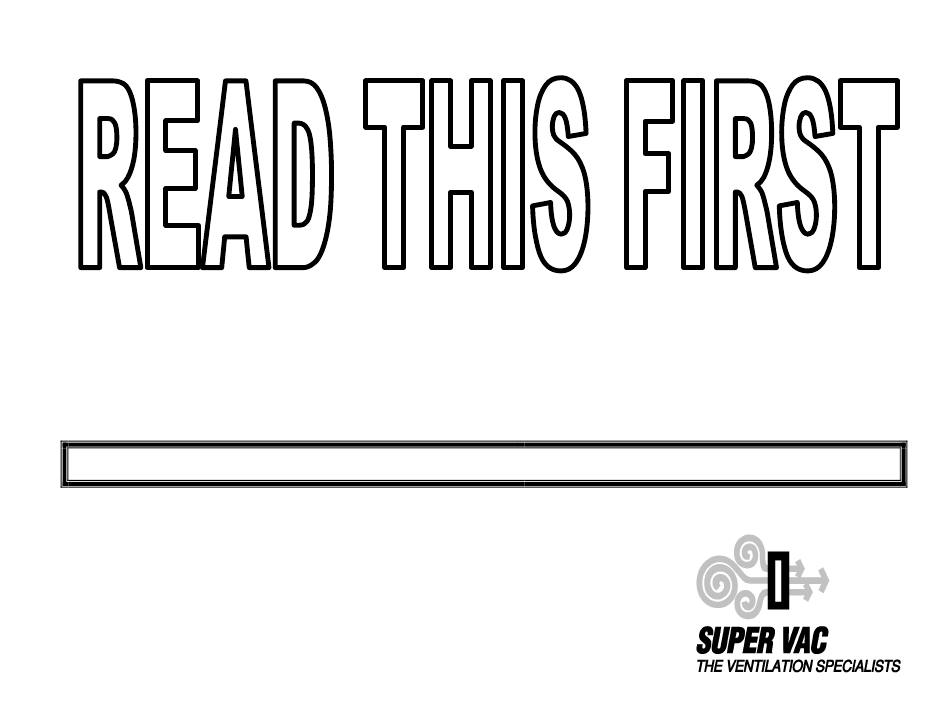

- Page 1 VENTILATOR USER GUIDE MODEL P244S P/N 008-15094...
-
Page 2: Table Of Contents
USER GUIDE This manual covers the description, cautions, operation and maintenance of Super Vac Electric Ventilators PS Series Please take the time to read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT ....................................2 2. -
Page 3: Breakage Or Damage During Shipment
User Guide 1. Breakage or Damage During Shipment The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it correctly. Please read these instructions carefully. Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a description on the freight or express bill describing the damage and the number of pieces. -
Page 4: General Description And Specifications
2. General Description and Specifications Super Vac ventilators are specifically designed to provide a convenient and portable source of fresh air. Refer to decal affixed to ventilator to determine proper operating voltage requirements. Super Vac electric ventilators are single speed, fresh air ventilators, for use in extreme conditions. -
Page 5: Product Safety Precautions
User Guide 3. Product Safety Precautions Ø Do not use the ventilator for purposes other than its’ intended use. Ø Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury. Ø... -
Page 6: Operation
Place ventilator in desired location before connecting to power supply. Extend and place any flexible duct as required. Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for comprehensive instruction on effective ventilation practices. -
Page 7: Troubleshooting Motor Overheating Problems
§ Using too small gauge of extension cord. § Exceeding maximum length extension cord. § Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for recommended ventilator placement. § Insufficient wattage generator. When running multiple ventilators on one generator, plug ventilators in one at a time. -
Page 8: Extension Cords
ELECTRIC VENTILATOR 8. Extension Cords Do not use reeled or coiled cable. Reeled or coiled cable can produce a counter EMF (electromotive force). The counter EMF can reduce the current carrying capability of an extension cord. This counter EMF will result in a voltage drop within the motor instigating a thermal overload condition. -
Page 9: Warranty
User Guide 10. Warranty Limited Warranty Five Years Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and operated for a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid (C.O.D. -
Page 10: Contact Information
ELECTRIC VENTILATOR 11. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr Fort Collins, CO 80524 Phone: 1-800-525-5224 970-297-7100 FAX: 970-297-7099 Internet: www.supervac.com P244S_VentilatorUserGuide-PS-Series.doc REV 08/13/03... -
Page 11: Parts List
PLUG #MP-500 005-10139 HUBBELL #SHC1024 CONNECTOR 025-10559 DECAL – ORANGE CAUTION 120V 022-10501 MOTOR P244S 1 1/2HP TEAO 115/230VAC 025-10548 DECAL – CAUTION GUARDS REMOVED 032-10768 5/16 – 18 X 3/4” HEX CS ZINC 025-13396 DECAL – P244S SERIAL NUMBER GRAY... -
Page 12: Exploded View
ELECTRIC VENTILATOR 13. Exploded View CAUTION CONNECTED FOR 120V 60CY P244S_VentilatorUserGuide-PS-Series.doc REV 08/13/03...
