Summary of Contents for Instant Pot Smart-60

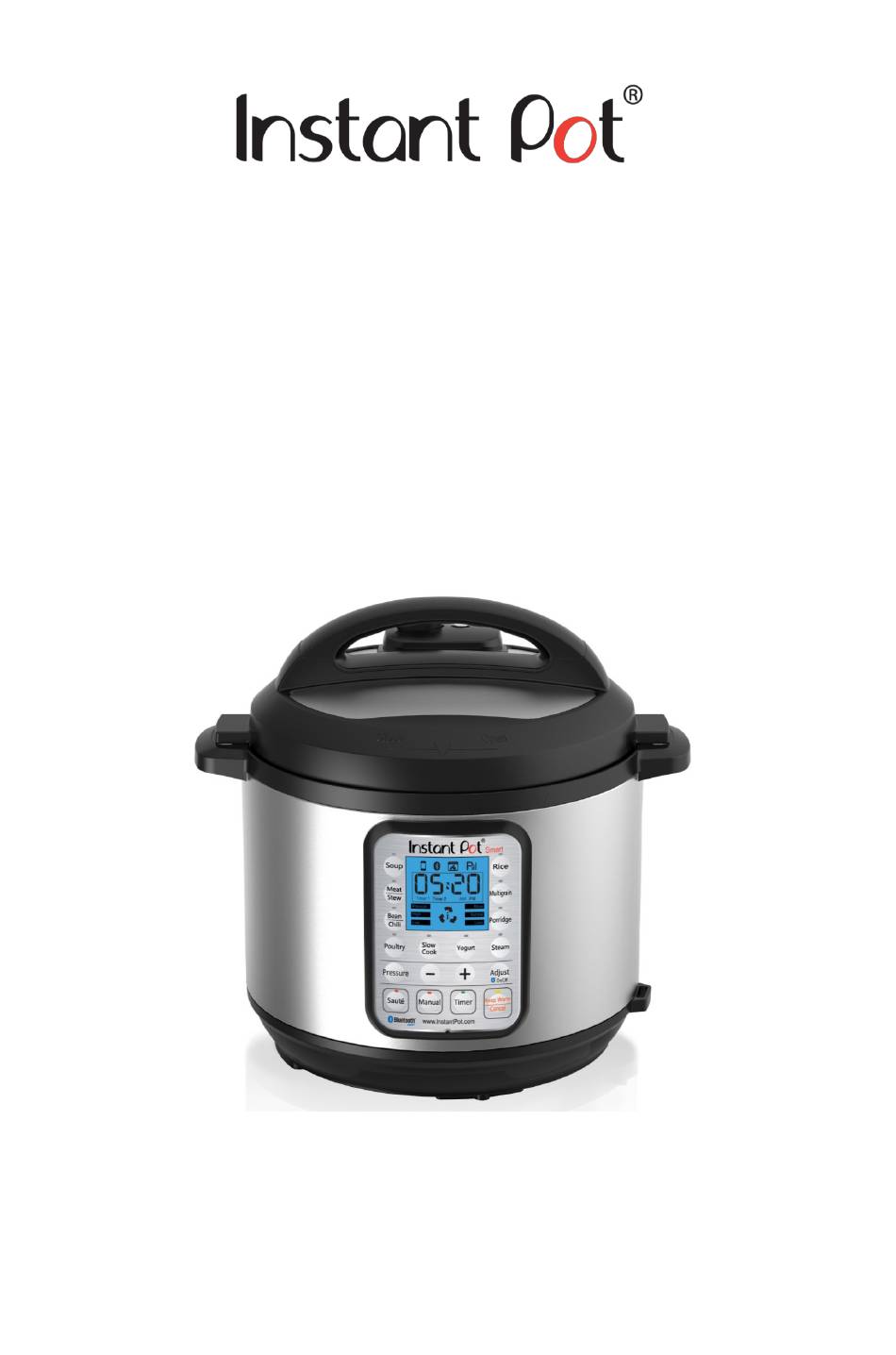

- Page 1 (Pictures in the text are for reference only. Please refer to the actual product.) Thank you for purchasing the multi-functional Instant Pot. Please read the User Manual carefully before use and keep it in a convenient place for future reference.
-
Page 2: Table Of Contents
States of the Cooker ................... 10 Operation Keys ....................11 Function Keys ..................... 11 Wireless Operations ....................13 Pairing Your Smartphone/Tablet with Instant Pot ..........13 Erase Pairing Information ................... 13 Turn Off Bluetooth ..................... 14 Operating your Smartcooker Wirelessly ............. 14 Writing Recipe Script .................. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Your Instant Pot cooks with pressure. When using pressure cookers, basic safety precautions should always be followed. PLEASE READ ALL INSTRUCTIONS. 1. Do not touch hot surfaces. Use handles or knobs. 2. Close supervision is necessary when the pressure cooker is used near children. -
Page 4: Precautions
21. To disconnect, turn any control to "off", then remove plug from wall outlet. 22. Do not place the unit on an unstable location it is strictly prohibited to use it on a newspaper, foam or other object that may easily block the vent holes at the bottom. 23. -
Page 5: Product Introduction
70%, and preserves more vitamins and minerals in the natural ingredients. Instant Pot has been designed to avoid the common errors and safety hazards of old stove-top pressure cookers using 10 proven safety mechanisms and patented technologies. They include lid... -
Page 6: Specifications
Bluetooth 4.0 (Bluetooth Low Energy): range 10~15m (30~45ft) Battery: Li-ion CR2477, 3V. Battery life: 5 years Model Power Rated Vol- Caliber of inner Weight Dimension Supply Power Smart-60 120V~ 1000W 6 Qt 16x22x24 cm 6.61kg 33x31x32 cm 60Hz 6.3x8.66x9.45 in (14.57lb) 13x12.2x12.6 in Accesso-... -
Page 7: Before The First Use
Before the First Use Before the first use, please take out all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions and cautions to avoid any injury or property damage. Please wash the inside of the lid and the inner pot with warm soapy water, rinse and dry thoroughly. -
Page 8: Safe Lid Opening
Safe Lid Opening 1. Make sure the pressure cooking program has completed or press “Keep-Warm/Cancel” to terminate the program. 2. Releasing pressure in one of the following approaches. Quick Release: Slide the steam release handle to the "Venting" position to let out steam until the float valve drops down. - Page 9 “Close” mark on the housing rim. Instant Pot has a safety feature to disable the cooker and the display flashes "Lid" if the lid is not positioned correctly. When using "Soup", "Poultry", "Meat/Stew", "Bean/Chili", "Multigrain", "Rice", "Steam", "Porridge" and "Yogurt", the lid should be fully closed. When using "Sauté", the lid should be open.
-
Page 10: Controls And States Of The Cooker
Timer1 and Timer2 are timer presets. States of the Cooker Your Instant Pot has 3 states which are shown on the LCD display and function indicators. When the cooker is not operational, the LCD displays “OFF” or the backlight turns off. When a program is running or the timer is set, the LCD backlight turns on. -
Page 11: Operation Keys
Selecting programs in “Yogurt”. Function Keys Your Instant Pot does not have a “Start” key. After a function is selected, the cooker automatically starts in 10 seconds if no key is pressed. The most important key is “Keep Warm/Cancel”. When Instant Pot is being programmed or any program is in effect, press this key will cancel the program and take the cooker to standby state. - Page 12 “Sautéing” section for details. The “Slow Cook" key allows you to use your Instant Pot as a common slow cooker. The user can change the cooking duration by pressing the "+" or "-" key between 0.5 and 20 hours. The "Adjust"...
-
Page 13: Wireless Operations
Pot. In the “Settings” section, the “Paired Device Count” shows the number of devices paired with your Instant Pot Smart. If the number of devices is more than what you expect, you can erase all the pairing information by pressing and holding the “Pressure” button on the control panel for 10 seconds until you hear a long beep. -
Page 14: Turn Off Bluetooth
Turning Off Bluetooth The Bluetooth is turned on by default out of factory. When you power up your Instant Pot Smart, the Bluetooth icon on the LCD lights up indication Bluetooth is on. If you want to turn off Blue- tooth, press and hold the “Adjust”... -
Page 15: Cooking With Your Instant Pot
Cooking with Your Instant Pot Pressure Cooking The following procedure is for “Rice”, "Soup", "Poultry", "Meat/ Stew", "Bean/Chili", "Multigrain", "Porridge", "Steam" and “Manual” functions. 1. Follow steps in the "Cooking Preparation" section of this manual. 2. Connect power cord. The LCD display shows “OFF”... -
Page 16: Slow Cooking
Auto "Keep Warm" cycle for 10 hours. Delayed Cooking with Timer Your Instant Pot has a timer function to delay the start of cooking for up to 24 hours. Timer function does not apply to the “Yogurt” and "Sauté" functions. The following shows how to program for delayed cooking. -
Page 17: Sautéing
Instant Pot not be left unattended during the preheat cycle. Since the delay function implies leaving the unit unattended, we strongly recommend not using the timer function for these types of food. -
Page 18: Warming
“Yogurt” then “Adjust” to “More” mode when you will see the word “boil” on the display. Instant Pot will then boil the milk to 180° F/83° C. When it’s done, it beeps and displays “yogt”. -
Page 19: Initial Test Run
In order to get a feel for your Instant Pot before jumping in with your favorite recipe, it’s a great idea to take it for a test run. This will help you to become familiar with your Instant Pot, make sure that your unit is working perfectly and also clean the unit of possible residues in the process. -
Page 20: Care And Maintenance
“Settings” -> “Request Support”. See screenshot on the right. Or call 1800 828-7280 for Instant Pot customer care team The cases in the following tables do not always indicate a faulty cooker. Please examine the cooker carefully before contacting the support for repair. - Page 21 Troubleshooting Table Problem Possible Reason Solution Sealing ring not installed Position the sealing ring properly well Difficult to close the lid Float valve in the popped-up Press the float valve lightly position downwards Use the steam release han- dle to reduce the internal Pressure exists inside the pressure.
- Page 22 Troubleshooting Table (Cont… ) Problem Possible Reason Solution Bad power connection or no Inspect the power cord to en- Display remains blank power. sure a good connection, check after connecting the the power outlet is power cord active. Cooker’s electrical fuse was Contact support online blown C1 code...
-
Page 23: Limited Warranty
Instant Pot Representative. This warranty does not cover units that are used outside of US and Canada. Further, the warranty does not cover damage resulting from Acts of God, such as fire, flood, hurricanes and tornadoes. - Page 24 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. All contents in this document have been checked carefully. Instant Pot Company reserves the right to interpret any printing mistake or misunderstanding of content.
