- Page 1 10x10 Hd USER MANUAL Revision Description Date V1.0 Initial revision 28-06-2012 V1.1 Volume control configuration 03-08-2012 www.minidsp.com miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice...
-
Page 2: Table Of Contents
Restore Factory default ..................................15 4.4.4 Restore Factory default ..................................15 Firmware upgrade ......................................15 IR remote learning feature ..................................15 Troubleshooting ........................................17 miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice... -
Page 3: Product Introduction

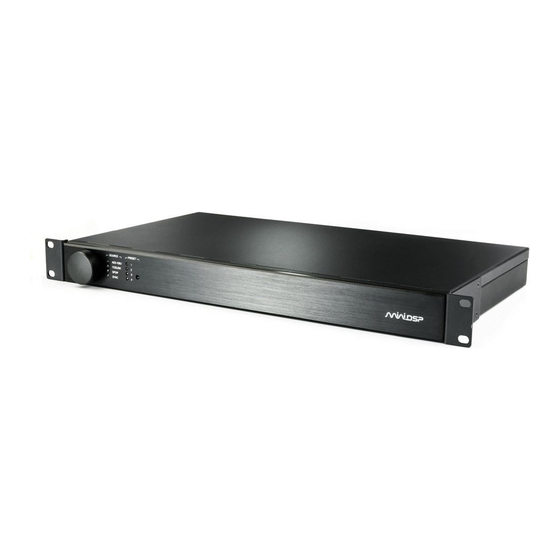

1 Product Introduction miniDSP 10x10 is a Digital Audio Signal Processor (DSP) capable of performing a wide range of applications, from filtering, equalization to time alignment. Typically located between an audio source (CD player/Receiver/Preamp/PC .. etc) and the amplifier, a miniDSP will provide unparalleled tuning flexibility to improve your audio system’s performance. - Page 4 WARRANTY TERMS miniDSP Ltd warrants all our products to be free of from defects in materials and workmanship for a period of one year from the invoice date. Our warranty terms do not cover failure of the product due to an external trigger, misuse, servicing or usage outside of the recommended use.
-
Page 5: System Connectivity
To Amplifiers of multi- miniDSP 10x10 way speakers or External processors Platform MiniUSB cable PC/MAC for initial configuration only – Not required afterward miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice... -
Page 6: Dc Power Connectivity
DC Power connectivity miniDSP 10x10 Hd is provided with a universal 12V DC power supply with IEC power connector. If the IEC cable provided isn’t the same as your country’s plug, you can easily source/re-use such cable from computer supplies. -
Page 7: Front Panel Control
Channel number Front panel control The miniDSP 10x10 has a rotary front panel for control of 3 elements of the product without requiring any PC connection: Master volume control Digital source selection Active preset (1 out of the 4 preset). -
Page 8: Software Setup
Once the configuration finalized, the plug-in will automatically boot up. You can now connect the miniDSP board to one of the USB 2.0 port of your PC. The device will be recognized as a HID driver and does not require any driver installation. -
Page 9: Plug-In Architecture
If you previously installed a different firmware version on your kit, this button will display: Synchronize & Upgrade. Meaning, the MiniDSP kit firmware will be upgraded to the current plug-in firmware along with the current settings you have. -
Page 10: Preset Memory Selection
Input Tab The first step in configuring your MiniDSP consists in making sure audio is being fed to the input correctly. To do so, click on the button labeled “inputs”. The RMS meter will quickly indicate the average value of the input signal in dBFS (i.e. relative to the full scale of the ADC or 24bit I2S signal). -
Page 11: Output Tab
(combined). Example of a mixing scenario where multiple crosspoints were enabled into a single column. Output Tab miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice P 11... -
Page 12: Custom Label
Cut off frequency: Select the -3dB frequency by either entering the value or using the up & down arrows of the numeric • box. Filter types: • miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice P 12... -
Page 13: Parametric Equalizer
Toggle from basic to Advanced EQ band selection Select the filter type Per Band bypass EQ Basic mode miniDSP Ltd – Hong Kong / Email : info@minidsp.com / Features and Specifications are subject to change without prior notice P 13... -
Page 14: Compressor /Limiter
Master volume control The master volume allows control of all 10 outputs channels (Analog + digital) of the miniDSP unit. It is enabled from the front panel unit (VOL-FP panel) and requires a small configuration from the software to be enabled. Please make sure to select the “IR mode” to make sure your unit is correctly configured. -
Page 15: Save Configuration
Firmware upgrade In order to enable some new features, the miniDSP may require to be flashed with a new firmware. All the required tools and firmware files are already included in the in the installation folder of the plug-in. So the first step to make sure you have everything you need is to install the new plug-in by logging to the UserDownload section. - Page 16 Feature such as Config 1-4 selection will only work when the unit is not connected/synchronized to the plug-in. Command for Digital source selection is for future only and does not apply to any miniDIGI setup. miniDSP Ltd – Hong Kong / Email : info@minidsp.com...
-
Page 17: Troubleshooting
- Have a look at our forums to see if someone else already above suggestions had this issue. - Send us an email (info@minidsp.com) with a clear explanation of the symptoms and descriptions of the troubleshooting steps you already performed miniDSP Ltd –...
