Summary of Contents for Ozito RTP-163
- Page 1 Rotary Tool 170 Watt Operation Manual 3 Year Replacement Warranty RTP-163 CAUTION: Read this operation manual before using this tool. 0709 www.ozito.com.au To view the full range visit:...

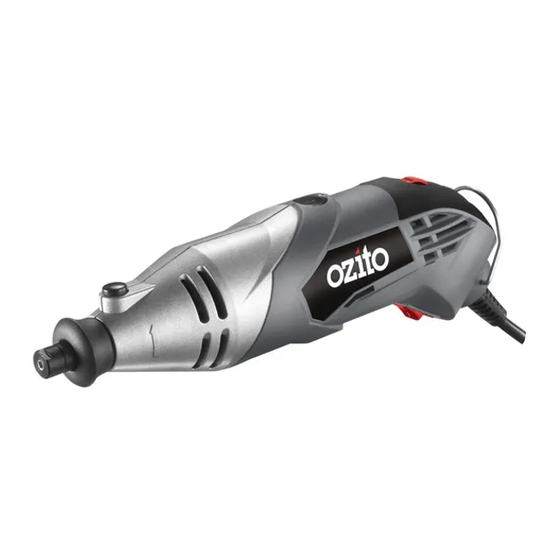

- Page 2 SPECIFICATIONS MODEL NO. RTP-163 Motor: 170W Input: 220-240V ~ 50Hz No load speed: 8,000 – 35,000/min Collet chuck capacity: 1.5mm – 3.2mm Weight (tool only): 1.2kgs Features: Spindle Lock Accessible Brushes Variable Speed Flexible Shaft 1. Collet 7. Hanging ring 2.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 2 TABLE OF CONTENTS…………………………………… Page 3 INTRODUCTION………………………………………….. Page 4 GENERAL SAFETY INSTRUCTIONS…………………….. Page 5 GENERAL SAFETY RULES……………………………….. Page 6-7 OPERATION……………………………………………….. Page 8-10 MAINTENANCE…………………………………………… Page 10 CARBON BRUSHES………………………………………. Page 10 TROUBLE SHOOTING…………………………………… Page 11 SPARE PARTS……………………………………………… Page 11 DESCRIPTION OF SYMBOLS……………………………. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed belowmay result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY TOOL This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 8: Operation
OPERATION On / Off Switch Warning! Before connecting a tool to a power supply be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power supply with a voltage greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool. - Page 9 OPERATION (cont.) Locating a cutting/sanding disc 1. Locate the disc holder in the collet nut (2) . 2. Remove the screw from the end of the disc holder with the 2 in one wrench provided, and insert the screw through the cutting disc. 3.
-
Page 10: Maintenance
OPERATION (cont.) Your Flexible shaft is now ready for use. Please note that the RTG-921K Ozito Rotary Tool Flexible Shaft does not fit the RTP-163. The OZACRTGF001 is only operational with the RTG- 921K Ozito Rotary Tool Kit. It is recommended that you never bend your flexible shaft and smaller than 125mm (5") in diameter. -
Page 11: Carbon Brushes
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 12: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute ø Diameter Double insulated Regulator compliance mark CARING FOR THE ENVIRONMENT Petrol tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. -
Page 13: Contents
CONTENTS 1 x Rotary Tool 1 x Instruction Manual 1 x Flexible Shaft 1 x 2 in 1 Wrench 183 Accessories: 20pcs sanding bands Ø6.35*12.7mm 4pcs collets (3.2mm x 1, 2.4 mm x 2, 1.6mm x 1) 18pcs sanding bands Ø12.7*12.7mm 6pcs aluminum oxide grinding wheels 1pc cloth wheel Ø25.4*4.7mm 4pcs silicon carbide grinding wheels... - Page 14 OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au Email: enquiries@ozito.com.au...
-
Page 15: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
