Summary of Contents for Energer ENF464COM

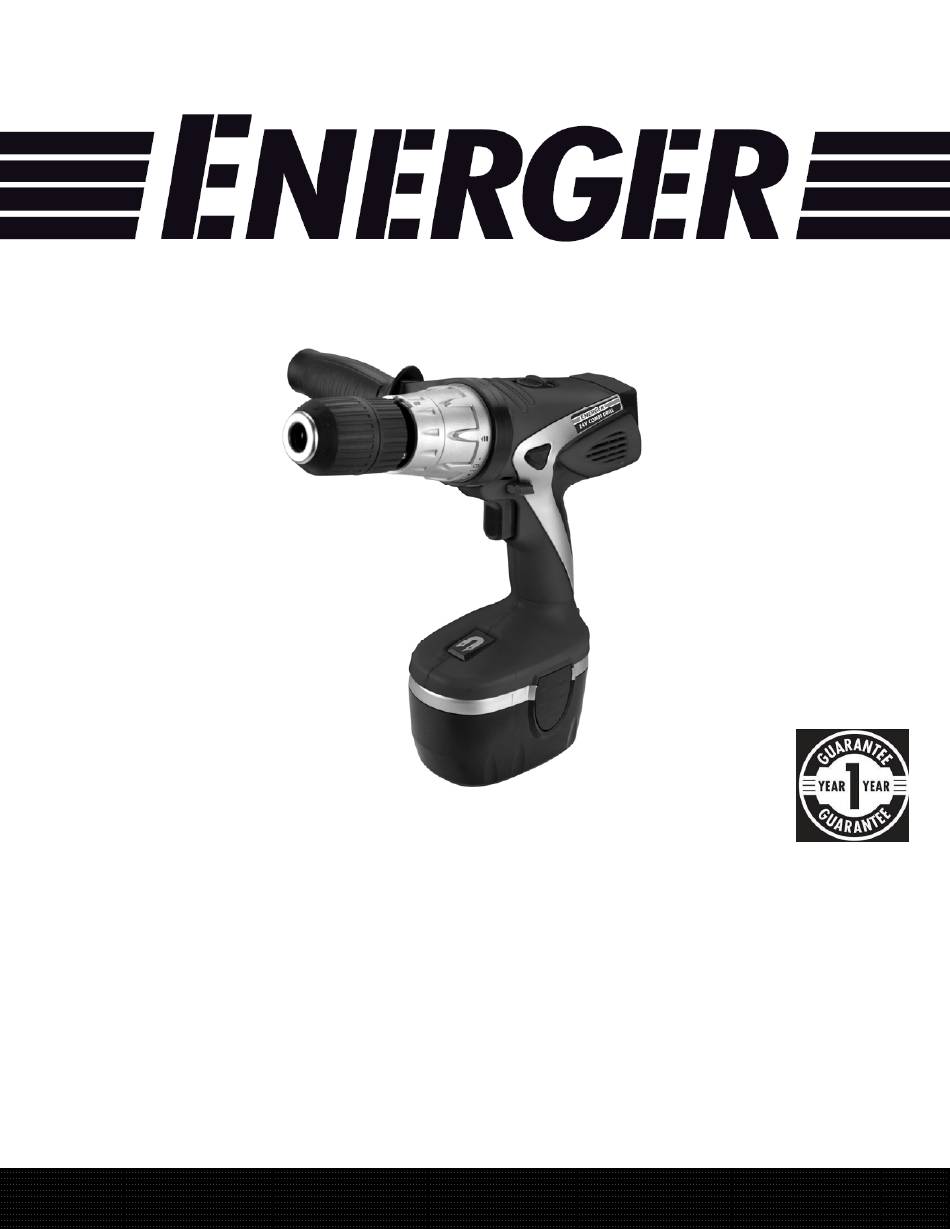

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions V7.0 24V COMBI DRILL ENF464COM...
- Page 2 Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 24V COMBI DRILL ENF464COM...
-
Page 3: General Safety Instructions
) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can get caught in moving parts. 24V COMBI DRILL ENF464COM... - Page 4 6) Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 24V COMBI DRILL ENF464COM...
-
Page 5: Special Safety Instructions
Ensure that outside surface of the battery pack is clean and dry before connecting it to the charger. Ensure that the batteries are charged using the correct charger recommended by the manufacturer. Incorrect use can create a risk of electric shock, overheating or the leaking of corrosive liquid from the battery. 24V COMBI DRILL ENF464COM... - Page 6 8. Always disconnect battery charger and remove battery from charger when the charging is complete. 9. Only use the battery charger specifically stated on the base of the battery. 10. Don’t charge non-rechargeable battery. 24V COMBI DRILL ENF464COM...
-
Page 7: Noise Information
While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately managed. 24V COMBI DRILL ENF464COM... - Page 8 To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! 24V COMBI DRILL ENF464COM...
- Page 9 And it can be used to drill holes on wood, concrete or metal. When drill the hole in the steel, let the machine in low speed (not full speed). Thus it can improve the drilling efficiency. 24V COMBI DRILL ENF464COM...
- Page 10 Charging time 1.5 h Do not dispose of batteries in a fire. They explode and result in injury. yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 24V COMBI DRILL ENF464COM...
- Page 11 Function adjustment ring Torque adjustment ring On/off switch with variable speed control Forward, reverse rotation and lock control Magnetic Strip Battery pack Battery pack release button Auxiliary handle Battery level display button LED battery level indicator light Charger 24V COMBI DRILL ENF464COM...
-
Page 12: Technical Data
Wear ear protection when sound pressure is over 80dB(A) ACCESSOIRES The machine comes with the following accessories : - Screwdriver bits : 5mm, 6mm, PH1, PH2, PZ1, PZ2 - Drill bits: 2/2,5/3/4/5/6mm - 1 pc Magnetic bit holder 1 pc Charger 24V COMBI DRILL ENF464COM... -
Page 13: Charging Procedure
Locate battery pack release buttons on side of battery pack and depress both of them to release battery pack from the drill. To insert the battery pack into drill’s battery port, simple push and slight pressure will be sufficient. 24V COMBI DRILL ENF464COM... - Page 14 This tool has a variable speed switch that delivers higher speed and higher torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression. Warning! Do not operate for long periods at low speed because excess heat will be produced internally. 24V COMBI DRILL ENF464COM...
-
Page 15: Switch Lock
5-8: For driving screws into soft material 9-12: For driving screws into soft and hard material 13-16: For driving screws into hard wood 17-20: For driving larger screws: For drilling: Fig.7 For hammer drilling in masonry and concrete 24V COMBI DRILL ENF464COM... -
Page 16: Battery Level Indicator
Do not attempt to open or remove any of the components. 24V COMBI DRILL ENF464COM... -
Page 17: Terms Of Use
In case of problems or for a deep cleaning, consult the manufacturer, its service agent or a similarly qualified person to avoid a hazard. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 24V COMBI DRILL ENF464COM... -
Page 18: Environmental Protection
GUARANTEE This ENERGER product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:... -
Page 19: Plug Replacement
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. 5 Amp fuse approved To BS1362 24V COMBI DRILL ENF464COM... - Page 20 EN 61000-3-3 EN 60745-1 EN 60745-2-1 EN 60745-2-2 Authorised Signatory and technical file holder Date : 11/09/2012 Signature:_________________ Name / title: Peter Harries / Quality Manager Powersmith (UK) LTD. Trade House , Mead Avenue ,BA22 8RT 24V COMBI DRILL ENF464COM...
