Summary of Contents for Inpax X-2010

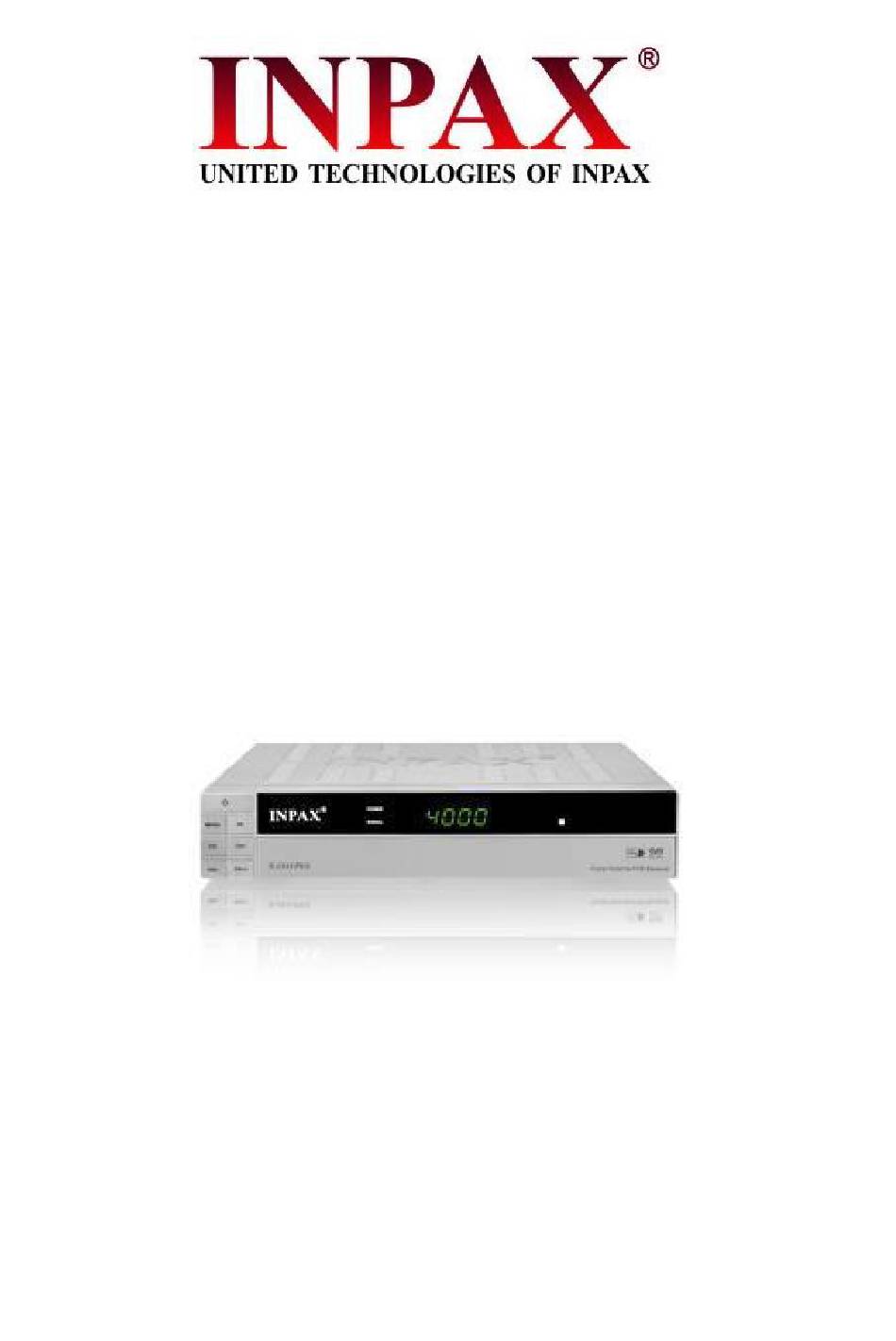

- Page 1 X-2010 PVR Receiver USER MANUAL Please read this user manual before using or connecting this product. And keep it handy for future reference.
- Page 2 SAFETY PRECAUTION CAUTION: The lightning flash with Warning: The exclamation point arrowhead symbol, within To reduce the risk of within an equilateral an equilateral triangle, is electric shock, don't triangle is intended to intended to alert the user open the cabinet. Refer alert the user to important to "dangerous voltage"...
- Page 3 Attachments: Never add any attachments and/or equipment without the manufacturer consent; as such additions may result in the risk of fire, electric shock or other personal injury. Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa or other similar surface, nor should it be placed over a radiator or heat register.
-
Page 4: Table Of Contents
Contents Contents 1. Remote Control & Panel Description ..............3 1.1 Front Panel Description ..................3 1.2 Rear Panel Description ..................4 1.3 Remote Control Description .................. 5 2. Basic Operations ...................... 7 2.1 Switch on STB ...................... 7 2.2 Standby Mode ....................... 7 2.3 Mute ........................ - Page 5 Contents 3.1.4 TV Channel List Edit ..................18 3.1.5 Find ........................20 3.2 Radio Channel List ..................... 20 3.3 Channel Setup ....................21 3.4 Favorite group list name ..................22 3.5 Delete All ......................23 3.6 Restore channel list and settings ................ 23 3.7 Save channel list and settings ................
-
Page 6: Remote Control & Panel Description
Remote Control & Panel Description 1. Remote Control & Panel Description 1.1 Front Panel Description 1. MENU: To enter into the main menu and exit all menus. 2. CH+/-: To change channels or for navigating and changing values in menus. 3. -
Page 7: Rear Panel Description
Remote Control & Panel Description 1.2 Rear Panel Description 1. POWER ON/OFF: Allows to completely switch off the receiver. 2. AC IN: Mains input cable. 3. ANT IN: Antenna input for the terrestrial antenna. 4. IF IN: Satellite input. 5. IF OUT: Satellite output for cascading to other devices Note: The operation of another receiver at the same time is only possible with limited channel selection. -
Page 8: Remote Control Description
Remote Control & Panel Description 1.3 Remote Control Description... - Page 9 Remote Control & Panel Description 1. POWER: Switches receiver ON or in stand-by-mode 2. TV/R: Switches between TV and Radio channels 3. NUMERICBLOCK: For direct typing values and names 4. INFO: Shows channel information with signal bar 5. EXIT: Exit menus or stop operations 6.
-
Page 10: Basic Operations
Basic Operations 2. Basic Operations 2.1 Switch on STB Switch the [Device’s Main Power] switch on. When the STB is first used it will display “Quick Setup” window. you will set Language, First Audio, Second Audio, LNB Power, Antenna Setup and Multi Search. -
Page 11: Mute
Basic Operations 2.3 Mute Press the [Mute] button to mute the sound. On the screen an icon will be displayed to indicate the muted sound. Press the [Mute] button again to restore the sound. 2.4 Channel Number In TV mode you can enter the channel number directly with your remote control unit and confirm the number with the OK button to change to the desired channel. -
Page 12: Vol
Basic Operations 2.8 CH▲/▼ In TV/Radio mode press [CH▲/▼] to change channel. 2.9 Vol◄/► In TV/Radio mode, press [Vol◄/►] to adjust volume. 2.10 OK In TV mode press [OK] button to open the Channel List window. Press the [Red] exchange screen. Press [Green] button to sort the channels by free and scrambled channels. -
Page 13: Epg
Basic Operations 2.13 EPG The STB supports Electronic Program Guides (EPG) to give you information about the actual programs of certain channels like event name, subtitle, description, start and finish time. This feature is depending on the service of the channel provider. Press [EPG] to open the EPG window. -
Page 14: Audio
Basic Operations 2.14 Audio In TV mode, press the [Audio] button to open the Audio Mode window. Select the item you want to adjust with [CH▲/▼] and change the value with [VOL◄/►]. 2.15 SUB Sub(Subtitle): In “OSD Setting ” menu, use [Volume ◄/►] to select “On” or “Off”. -
Page 15: List
Basic Operations In the Favorite Group window you can select the desired favorite channel with [CH▲/▼] and confirm it with [OK] to switch to it. In bigger groups you can navigate with [PGUP/ PGDN]. With [VOL◄/►]. You can select different Favorite Groups. Press [Exit] to close the Favorite Group window. -
Page 16: Info
Basic Operations 2.21 INFO In TV mode, press [INFO] button can open information screen, in the window shows the parameters of current channel. Two dynamic bars at the bottom of the window reflect the signal intensity and signal quality of the current channel. 2.22 TV/Radio In TV mode, press [TV/Radio] to switch to Radio mode. -
Page 17: Code
Basic Operations 2.26 Code For this, press the button CODE on your remote control until the correct LED is lighting. 2.27 REC In TV mode, press [REC] button you will be asked to “Do you want to record?” menu. 2.28 PVR In TV mode, press [PVR] button to access directly to the “DVR Management”... -
Page 18: I◄◄/►►I
Basic Operations 2.31 ◄◄/►► When you play a recorded channel, press [◄◄] button to back the program fast and Press [►►] to fast forward the program. Selection: 2x, 4x, 8x speed . 2.32 I◄◄/►►I Press [I◄◄/►►I] button when you play a marked program, the screen will jump to the next mark point. -
Page 19: Channel
Basic Operations 3. Channel Press [Menu] in the TV/radio mode to enter the main menu. 1. Press [CH▲ /▼ ] to select the channel item. 2. Press [OK] to enter the selected item. In the channel menu: Press [CH▲/▼] to select the wanted menu item among TV Channel List, Radio Channel List, Channel setup, Favorite group list name, Delete All, Restore... -
Page 20: Favorite
Menu Operations 3.1.1 Favorite 1. Press [FAV] to open the favorite window. 2. You can select between 8 favorite groups with [CH▲/▼]. Press [OK] to assign the channel to a favorite group, press [EXIT] to exit favorite group. 3. Press [OK] again to remove the channel from the marked favorite group. -
Page 21: Sort
Menu Operations 3.1.3 Sort Press [Green] to open the sort window. Press [CH▲/▼] to select and [OK] to confirm your choice. The ways of sorting are: Default: Sort channel factory default. FTA/CAS: Sort channel by free and scrambled sequence. Free channels will be listed first and scrambled channels behind in the channel list. - Page 22 Menu Operations 3.1.4.2 Skip In channel edit menu, press [Green] button to place a skip icon behind the name of the highlighted channel. Marked channels will be skipped when you change channels in TV mode after you confirm to save the changes when you leave this menu.
-
Page 23: Find
Menu Operations Press [OK] on the “Satellite” item to display the satellite list. You can select the satellite for which you want to create a new channel. With marked “TP Index” item press [OK] to display TP list, use [CH▲/▼] to select for which you want to create a new channel. -
Page 24: Channel Setup
Menu Operations 3.3 Channel Setup When you enter the “Channel Setup” menu you will see a screen like beside: Startup Channel: Press [OK] to enter “Startup Channel” menu to see the screen like showed beside: If you set of “Boot on ... -
Page 25: Favorite Group List Name
Menu Operations 3.4 Favorite group list name When you enter “Favorite group list name” menu with 8 favorite group will be displayed, press [OK] on the RCU to rename favorite group. Use [CH▲/▼] / [Vol◄/►] to select character, press [OK] to confirm it. -
Page 26: Restore Channel List And Settings
Menu Operations 3.6 Restore channel list and settings To restore channel list and settings. Enter the password. The default password is “0000”. After entering the password correct a safety question will show up where you have to confirm first. Select “OK”, press [OK] to restore the last backup channel list, the current channel list will be erased. -
Page 27: Installation
Menu Operations 4. Installation After selecting the installation menu you can see the window like beside. In “Installation” menu; Press [CH▲/▼] to select menu items among Single Search, Multi Search, TP Scan, Satellite List, TP List and Satellite Guide. Press [OK] to enter the selected item. 4.1 Single Search After selecting “Single Search”... - Page 28 Menu Operations DiSEqC1.1: Use [Vol◄/►] to switch DiSEqC1.1 option or press [OK] to enter DiSEqC1.1 option to select directly with [CH▲/▼], press [OK] to confirm it. The options of this item are: Disable / CCard1 M1 Port1 / CCard1 M1 Port2 / CCard1 M1 Port3 / CCard1 M1 Port4 / CCard1 M2 Port1 / CCard1 M2 Port2 / CCard1 M2 Port3 / CCard1 M2 Port4 / CCard1 M3 Port1 / CCard1 M3 Port2 / CCard1 M3 Port3 / CCard1 M3 Port4 / CCard2 Port1 / CCard2 Port2 / CCard2 Port3 / CCard2 Port4 / CCard2...
-
Page 29: Multi Search
Menu Operations 4.2 Multi Search When you enter the “Multi Search” menu a window like the one beside will open. In the “Satellite” item press [Vol◄/►] to select the satellite which you want to scan or press [OK] to open the “satellite list”... - Page 30 Menu Operations TP Index: Use [Vol◄/►] to select the desired transponder or press [OK] to open the TP list to select directly with [CH▲/▼], press [OK] again to display the TP number where the channel can be found. Press [Red / Green / Yellow] key on the RCU for the related functions.
-
Page 31: Satellite List
Menu Operations 22K: Use [Vol◄/►] to switch “ON” and “Off”. The 22KHz signal is used in KU universal LNBs to change between low band and high band. Notice: After choosing LNB type “Universal” you cannot modify 22K. DiSEqC1.0: Use [Vol◄/►] to switch the options or press [OK] to open the DiSEqC1.0 option list to select directly with [CH▲/▼], press [OK] to confirm it. -
Page 32: Tp List
Menu Operations Press [Red] button to enter edit satellite menu. You can edit the satellite’s name and its longitude. Press [Green] button to open the “Add satellite” window. After pressing [Yellow] button you will be asked “Are you sure to delete?”. Select “OK”... - Page 33 Menu Operations Press [Red] button to open the “Edit TP” menu. Here you can edit the transponder’s data. Press [Green] button to open the “Add TP” menu. Here you can add a new TP and setup its parameters. Press [Yellow] button will open a dialog box asking you to confirm the deletion of the current TP.
-
Page 34: Satellite Guide
Menu Operations 4.6 Satellite Guide When you enter “Satellite Guide” menu, you will see the screen like beside: Here you can enter your local longitude and latitude and the satellite’s longitude. The receiver calculates antenna’s orientation and elevation to point your antenna to the selected satellite. -
Page 35: System Setup
Menu Operations 5. System Setup When you open the “System Setup” menu a window like the one beside will be opened. In “System Setup” menu: Press [CH▲/▼] to select menu items among Language, TV System, Time & Timer setting, OSD Setting, Parental Lock and Power setting. -
Page 36: Tv System
Menu Operations Subtitle Language: In “OSD Setting”menu, use [Vol◄/►] to select “On” or “Off”. If the current channel has subtitle information, it will be displayed if this function is “On”. If this function is “Off” subtitles won’t be displayed. The selections of subtitle language include: English, German, French, Spanish, Italian, Portuguese, Turkish, Polish, Russian, Danish, Greek, Hungarian, Arabic and Farsi. -
Page 37: Time & Timer Setting
Menu Operations RF Channel is use for switching the screen aspect ratio mode. Now we provide below options: 21-69. You can press [VOL◄/►] key to select each mode circularly. Press [Menu/Exit] to return to the previous menu. 5.3 Time & Timer Setting When you enter “Time &... - Page 38 Menu Operations Duration: Here you can set the time you want to see or play this channel. After the time set the system will automatically switch to standby mode. If you don’t want the box the be switched to standby mode then set the duration to 00:00.
-
Page 39: Osd Setting
Menu Operations Time Display: Press [Vol◄/►] to switch this function “On” or “Off”. NOTE: If the current channel provides the correct time information, you will see the current time after you entered “Local Time Setting” menu. If the channel doesn’t provide time information, you have to input the date and time information manually. -
Page 40: Parental Lock
Menu Operations 5.5 Parental Lock You can set a password for anyone who wishes to operate the “Installation” menu. You can also set the password to lock channels. Below you find how to set and change the password. On “Parental Lock” press [OK] to open a dialogue box and input the password. -
Page 41: Power Setting
Menu Operations 5.6 Power setting Here you can set the power output to the LNB. If your receiver is connected to the LNB directly then you need to set the LNB Power to “On”. If your receiver is connected to a multi switch (SMATV signal distribution system) then it may be that you don’t need to provide the power to the LNB. -
Page 42: Tools
Menu Operations 6. Tools When you enter to “Tools” menu, you will see a screen like beside: In “Tools” menu: Press [CH▲/▼] to select the wanted item among Information, Quick Setup, Game, Factory Default, Software Upgrade SatcoDX Auto Programming Smart. Press [OK] to enter the selected item. -
Page 43: Game
Menu Operations 6.3 Game When you enter “Game” menu, you will see three games include Tetris, Snake and Othello. Basic operation statement: Tetris Mark “Setup” press [Vol◄/►] select level (speed). Mark “Start” and press [OK] to start the game. ... -
Page 44: Factory Default
Menu Operations Press [Vol◄/► / CH▲/▼] to guide the snake to the red blocks. Every block you ate increases the length of the snake. If the snake runs against a wall or against itself then it dies. Press [OK] to Pause/Play the game ... -
Page 45: Software Upgrade
Menu Operations 6.5 Software Upgrade When you enter to “Software Upgrade” menu, you will see a screen like beside: Press [CH▲/▼] to select the wanted item among Software Upgrade and Upgrade by Satellite. Press [OK] to enter the selected item. 6.5.1 Software Upgrade 1. -
Page 46: Satcodx Auto Programming
Menu Operations Select the satellite and TP or input the TP value and download PID. Then mark “Start” and press [Enter] to begin the download of the upgrade. This may need up to 60 minutes. Therefore we suggest using of this function only if you don’t intent to watch TV during this time. -
Page 47: Dvr Management
Technical Specification 7. DVR Management When you enter to “DVR Management” menu, you will see a screen like beside: In “DVR Management” menu: 1. Press [CH▲/▼] to select the wanted item among Record Management and HDD Control. 2. Press [OK] to enter the selected item. 7.1 Record Management If you enter the Record Management menu a window like the one below will open. -
Page 48: Lock
Technical Specification 7.1.2 Lock In channel Record menu, press [Green] button to place a lock icon behind the name of the highlighted Record. Marked Records will be locked and displayed only after password has been entered if you confirm to save the changes when you leave this menu. -
Page 49: Hdd Control
Technical Specification 7.2 HDD Control Standby Time Out: Press [Vol◄/►] to switch between “Disable / 5 mins / 15 Mins / 60 Mins ”. If there is no HDD operation, the HDD will go to standby when reaching the time out time. -
Page 50: Technical Specification
Technical Specification 8. Technical Specification VIDEO Decoding MPEG-2 & MEPG-1 compatible Bit rate Max 15Mbps Output PAL/NTSC Aspect ratio 4:3, 16:9, Auto Active pixel 720x480 @ 30fps; 720x576 @ 25fps Output connector RCA, TV SCART AUDIO Decoding MPEG-2/MPEG-1 layer I & II Mode Mono, Dual, Stereo, Joint stereo Bit rate... - Page 51 PAL BG/I/DK, NTSC M Output Channel 21~69(PAL), 14~83(NTSC) Address: Floor-809,West Tower, Coastal City, Hai De 3 road, Nanshan Area, Shenzhen City, Guangdong Province,China 地址： （中国）广东省深圳市南山区海德三道海岸城西座 809 室 Tel: +86 755 216 79069 Mob: +86 159 893 964 29 Email:inpax@inpax.com.cn Inpax-china@inpax.com.cn Web: www.inpax.com.cn...
