Summary of Contents for Lynx C AD 3110 - 2

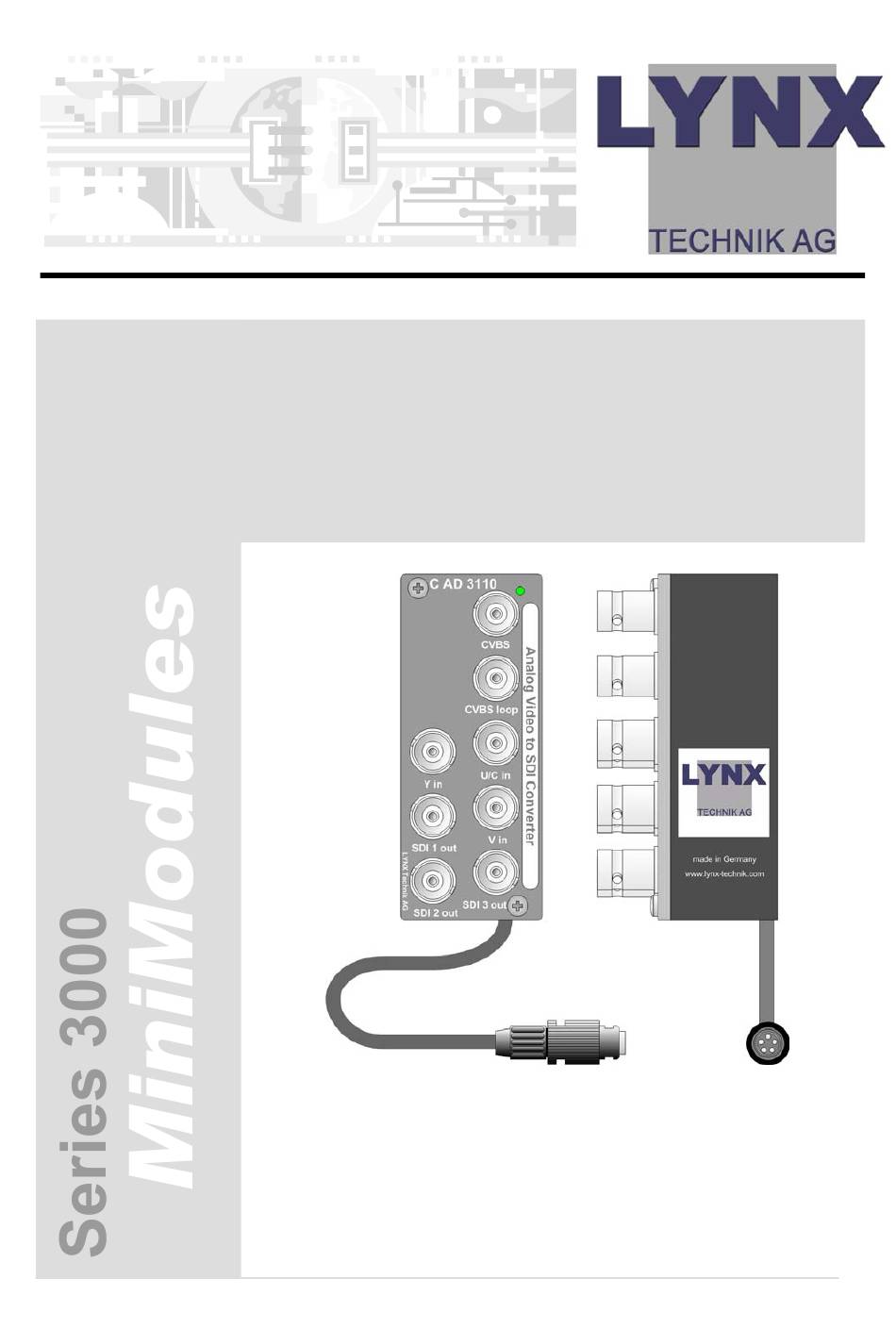

- Page 1 Reference Manual C AD 3110 Analog Video to SDI Converter © LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany www.lynx-technik.com...
- Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located. -
Page 4: Regulatory Information
Reference Manual C AD 3110 -2 Version1.3 Regulatory information Europe Declaration of Conformity LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany Declare under our sole responsibility that the product TYPE: C AD 3110 To which this declaration relates is in conformity with the following... -
Page 5: Table Of Contents
Reference Manual C AD 3110 -2 Version1.3 Contents Warranty ......................3 Regulatory information ..................4 Europe........................4 Declaration of Conformity ................4 USA ........................4 FCC 47 Part 15.....................4 Contents ......................5 Getting Started....................7 Packaging......................7 Product Description ..................7 Functional Diagram ..................9 Module Layout ....................9 Connections ...................... - Page 6 Reference Manual C AD 3110 -2 Version1.3 This Page is intentionally left blank Page 6...
-
Page 7: Getting Started
Reference Manual C AD 3110 -2 Version1.3 Getting Started Packaging The shipping carton and packaging materials provide protection for the module during transit. Please retain the shipping cartons in case subsequent shipping of the product becomes necessary. Product Description The C AD 3110 is a high quality 12 bit video analog to digital converter designed primarily for broadcast and professional applications. - Page 8 10 MiniModules can be mounted utilizing the optional LYNX R FR 3005/3010 rack housing. This includes integrated power supply and optional remote control interfaces.
-
Page 9: Functional Diagram
Reference Manual C AD 3110 -2 Version1.3 Functional Diagram Figure 1 below is the basic functional diagram for the C AD 3110 MiniModule. Figure 1- C AD 3110 Functional Diagram Module Layout Figure 2 shows the physical layout of the C AD 3110 MiniModule. - Page 10 Reference Manual C AD 3110 -2 Version1.3 Figure 2 – Module Layout Page 10...
-
Page 11: Connections
Reference Manual C AD 3110 -2 Version1.3 Connections Video Connections The C AD 3110 MiniModule is configured with standard 75 Ohm BNC connectors. Connection is self-explanatory. We recommend the use of high quality video cable suitable for digital video connections to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 12: Power Connections
Data Connection Power Connection i2C-SDA (data) + 5V i2C-SCL (clock) Male Connector (view looking into connector from front) Caution Only use the optional LYNX R PS power modules. Ensure the 5-pin power connector is locked securely in place. Page 12... -
Page 13: Installation
Reference Manual C AD 3110 -2 Version1.3 Installation Mechanical Stand Alone Operation The C AD 3110 MiniModule can be used in a stand alone application. There are two options for the use of the module in this way. a) Using the R FR 3005 Rack Frame 1 option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 14: Multiple Units
Reference Manual C AD 3110 -2 Version1.3 Multiple Units Most applications will require more than one MiniModule, which can include any of the available Series 3000 MiniModule product range. There are two options for mounting multiple units. a) Using the R FR 3005 Rack Frame option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 15: Electrical Installation
/ receiving the signals from the module or damage can result. Caution. Only use the optional Lynx R PS 3001 power modules. Ensure the 5-pin power connector is locked securely in place. -
Page 16: Settings And Control
Reference Manual C AD 3110 -2 Version1.3 Settings and Control The C AD 3110 is configured via the integral 6- position dip-switch. This is located on the bottom of the module and can be accessed through the cutout provided (fig 2) Switch Settings Below the switch settings for the 4-position dip- switch are defined. -
Page 17: Switch Function Detail
Reference Manual C AD 3110 -2 Version1.3 Switch Function Detail Dip Switch 1 Enables or disables local control ON this will enable local control OFF this disables local control, the module can only be controlled via remote control Dip Switch 2 Studio Quality input or Low Quality input. -
Page 18: Auto Store
Reference Manual C AD 3110 -2 Version1.3 Auto Store If no parameters are changed for 10 seconds then the current settings will be written into flash memory automatically, this can be seen by the front LED flashing yellow four times. Page 18... -
Page 19: Factory Preset Condition
Enhanced Operation Control An enhanced set of control parameters and adjustments are possible when the module is connected into a LYNX control system or if the module is connected to the optional Service Adaptor (R CT 3000), this will enable: •... -
Page 20: Alarm/Led Status Indicators
Reference Manual C AD 3110 -2 Version1.3 Alarm/LED Status Indicators The C DA 3110 module has built in LED indicators, which serve as alarm and status indication for the module. Function is described below. Module Edge Status LED 2 Status LEDs are provided on the module edge, which have three color states LED 1 Indication... -
Page 21: Locate Function
Reference Manual C AD 3110 -2 Version1.3 Locate Function For large systems which have many modules in various locations we have added a utility which will help visually identify a module quickly. (When used in conjunction with the optional control system and software) Once the module has been identified on the control system it is possible to initiate the “locate”... -
Page 22: Specifications (C Ad 3110)
Reference Manual C AD 3110 -2 Version1.3 Specifications (C AD 3110) Inputs Analog Inputs (selectable) NTSC -(M/N), PAL (B/D/G/H/I/M/N), Y / R-Y / B-Y, Y / C (S-Video) Sync Input On Y or CVBS Connection type BNC (75 Ohm) Return Loss >... -
Page 23: Available Options
Reference Manual C AD 3110 -2 Version1.3 Available Options Below is a list of available options for the C AD 3110 MiniModule. Please refer to product brochures or our web site for more detailed information. Model Description External brick power supply module for R PS 3001 E Series 3000 MiniModules. -
Page 24: Parts List
Please contact your distributor or check our web site for details on this program. More detailed information and product updates may be available on our web site: www.lynx-technik.com You will also find links to contact us directly for assistance. Page 24... -
Page 25: Contact Information
Reference Manual C AD 3110 -2 Version1.3 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany. - Page 26 Reference Manual C AD 3110 -2 Version1.3 Notes Page 26...
