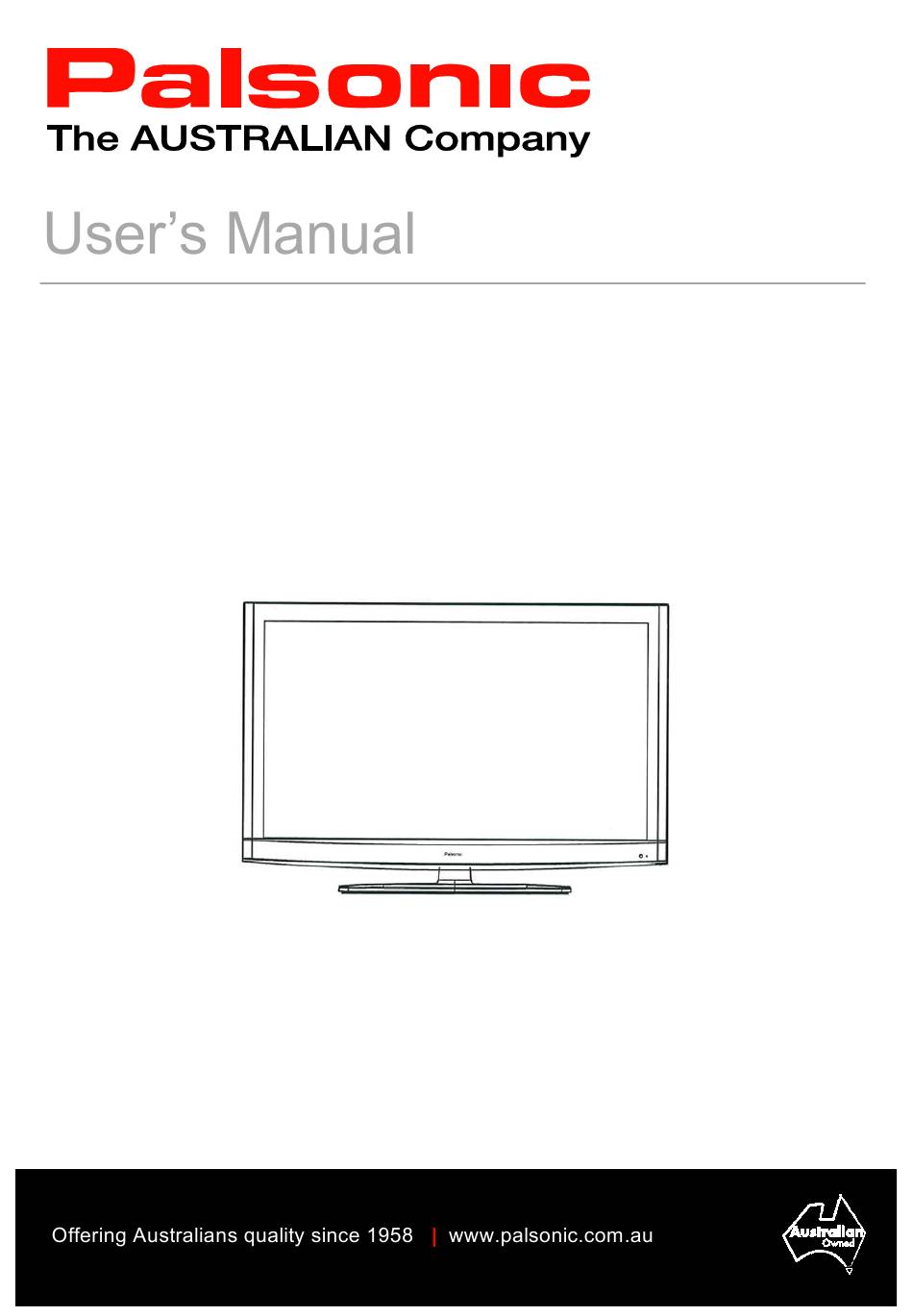

- Page 1 TFTV8170LED 80cm (31.5”) LED TV / DVD Combo with DVB-T...
- Page 2 Important safety information WARNING CAUTION This symbol is intended to tell the user that parts inside the product pose a RISK OF ELECTRIC risk of electric shock to persons. SHOCK; DO NOT OPEN CAUTION: CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT This symbol is intended to tell the user REMOVE COVER.
- Page 3 • The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing near or over a radiator or heat source. • This Television equipment should be operated only from type of power source indicated on the marking label.
- Page 4 In line with manufacturers and would not mean that the panel is faulty. Dead pixels panels with 6 pixels or more within 12 month period, Palsonic Corporation Pty Ltd. complies with industry standard and reserves the right to repair the unit and non-refundable. We hope you will understand that the product that corresponds to this standard is regarded as acceptable.
-
Page 5: Table Of Contents
Table of Content Overview of the LCD TV......Features........Opening the packing......1 Product components......2 Front View..........2 Rear View..........3 Remote control........Using the OSD menus..... Channel Adjustment.......6 Picture Adjustment......... Sound Adjustment........9 Time Adjustment........10 Lock Adjustment........11 Setup Adjustment........12 Media Operation........ -
Page 6: Overview Of The Lcd Tv
Overview of the LED TV Congratulation on purchasing the LED Television. This product has been designed to provide you with a rich audio and video experience. This monitor enables you to watch broadcast, cable television or channels, connect VCR, VCD or DVD play- er to watch your favorite movies, or connect a computer to use the display as a monitor. -
Page 7: Product Components
Product components Front view DVD ROOM OPEN PLAY Remote Inductor and Power Indicator OPEN To open the disc tray. PLAY Press to play disc. INPUT Switch the input sources . MENU Press the button to enter on screen Display (OSD). Increase or decrease channel numbers. -
Page 8: Rear View
Rear view SPDIF HDMI 3 IN HDMI IN Connect to the HDMI output of your device. YPbPr Connect to the component output of your component device. PC IN Connect to the VGA output of your device. Connect to the audio output of your PC (earphone jack) RF IN Connect to the UHF antenna or coaxial cable from local TV. -
Page 9: Remote Control
Remote Control • If direct sunlight shine directly on the remote sensor, remote control’s operation may be unstable, and the effective range will be shorter. • Do not hit or violently shake the remote control. • Never expose the remote control to high temperature or humidity. •... - Page 10 NUM. BUTTON&FUNCTION POWER Press this button to switch on the TV when at standby mode or enter standby mode. MUTE Press this button to mute or restore sound. CH-/CH+ Changes the channels up and down. [0-10+] Directly elect a TV channel(10+ only in DVD) CH-List - Display the channel list(only in DTV).
-
Page 11: Using The Osd Menus
Using the OSD MENU The On-Screen Display (OSD) menu system provides a quick and simple method to adjust LED TV base setting. OSD menu can be viewed using both the remote control and the control buttons on the front panel. Channel Adjustment Auto Tuning ATV Manual Tuning... - Page 12 Channel Adjustment Sub windows info: Auto Tuning Press “ OK ” button to enter Auto tuning and start channel tuning. ATV Manual Tuning Press “ OK ” button to enter ATV Manual Tuning. DTV Manual Tuning Press “ OK ” button to enter DTV Manual Tuning. Programme Edit Press “...
-
Page 13: Picture Adjustment
Picture Adjustment Picture Mode Personal Contrast Brightness Colour PICTURE Tint Sharpness Colour Temp Normal Noise Reduction Middle Move Return Select Exit MENU EXIT 1. Press MENU button on the front panel or MENU button on the remote control to display the main menu. s on the 2. -
Page 14: Sound Adjustment
Sound Adjustment Sound Mode Personal Treble Bass Balance SOUND Auto Volume SPDIF Mode Auto AD Switch Move Return Select Exit MENU EXIT EXIT MENU 1. Press MENU button on the front panel or MENU button on the remote control to display the main menu. s on the 2. -
Page 15: Time Adjustment
Time Adjustment Sleep Timer Auto Standby OSD Timer TIME Move Return Select Exit MENU EXIT EXIT MENU 1. Press MENU button on the front panel or MENU button on the remote control to display the main menu. s on the 2. -
Page 16: Lock Adjustment
Lock Adjustment Lock System Set Password • • • • • • • • • Block Program LOCK Parental Guidance Key Lock Move Return Select Exit MENU EXIT EXIT MENU 1. Press MENU button on the front panel or MENU button on the remote control to display the main menu. -
Page 17: Setup Adjustment
Setup Adjustment OSD Language English TT Language Farsi Hearing Impaired PVR File System SETUP Aspect Ratio 16:9 Blue Screen First Time Installation Off Reset Software Update (USB) Move Return Select Exit MENU EXIT 1. Press MENU button on the front panel or MENU button on the remote control to display the main menu. -
Page 18: Media Operation
Media OPERATION USB2.0 PHOTO MUSIC MOVIE TEXT N ote:B efore operating Media menu,P lug in U S B device,then press IN P U T button to set the Input S ource to Mdeia. 1 . P ress button to select Media in the S ource menu, then press OK button to enter. -
Page 19: Record
RECORD N ote:You should insert the mobile disc or USB before you start to record. Press the REC button on your remote control . 1. Press Play button to record the current program. Press Stop to stop recording. 2.Press Stop button to stop recording ,the it will return to normal broadcast television. 3.When the storage space of Disk is shortage. -
Page 20: Dvd Function
DVD Functions Information Funtions Information Display An On Screen Display (OSD) indicator will be displayed at the upper part TV screenwhen certain functions are executed, or when pressing the OSD button on the remote control. The OSD indicator is a user friendly interface designed to display the status of playback type. -
Page 21: General Setup Adjustment
DVD Menu Customizing the GENERAL SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select GENERAL SETUP option. 2.Use the Up and Down buttons to highlight an individual GENERAL SETUP option. TV Display Cycles among TV Type modes: 4:3 pan scan,4:3 letter box,16:9 . You can choose the OSD Language. -
Page 22: Audio Setup Adjustment
DVD Menu Customizing the AUDIO SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select AUDIO SETUP option. 2.Use the Up and Down buttons to highlight an individual AUDIO SETUP option. You can choose the Downmix between LT/RT and Stereo Speaker Setup Dual Mono Cycles among Dual Mono modes: Stereo,L-Mono,R-Mono,... -
Page 23: Preference Setup Adjustment
DVD Menu Customizing the PREFERENCE SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select PREFERENCE SETUP option. 2.Use the Up and Down buttons to highlight an individual PREFERENCE SETUP option. TV Type There are NTSC / PAL / Multi three modes, and choose one mode according your TV mode. -
Page 24: Specifications
Display I/O ports Active screen size 32 inches HDMI input PC input 16:9 Aspect ratio PC audio input Response time YPbPr input AV input 1366*768 Resolution RF input Contrast 5000:1 USB input SPDIF input Brightness Viewing angle 176/176(H/V) Other TV Functions User manual √... -
Page 25: Troubleshooting
Troubleshooting No power • Make sure the TV and the power cord are connected correctly. • Check if you pressed POWER on the remote control unit. If the indicator in the front panel is red, press POWER in the remote control or the front control panel. - Page 26 Palsonic Customer Service Telephone (Australia) 1300 657 888 Palsonic Corporation Pty Ltd ABN 34 000 474 108 1 Joynton Avenue, Waterloo NSW 2017 Australia Telephone (02) 9313 7111 Facsimile (02) 9697 0655 www.palsonic.com.au...
