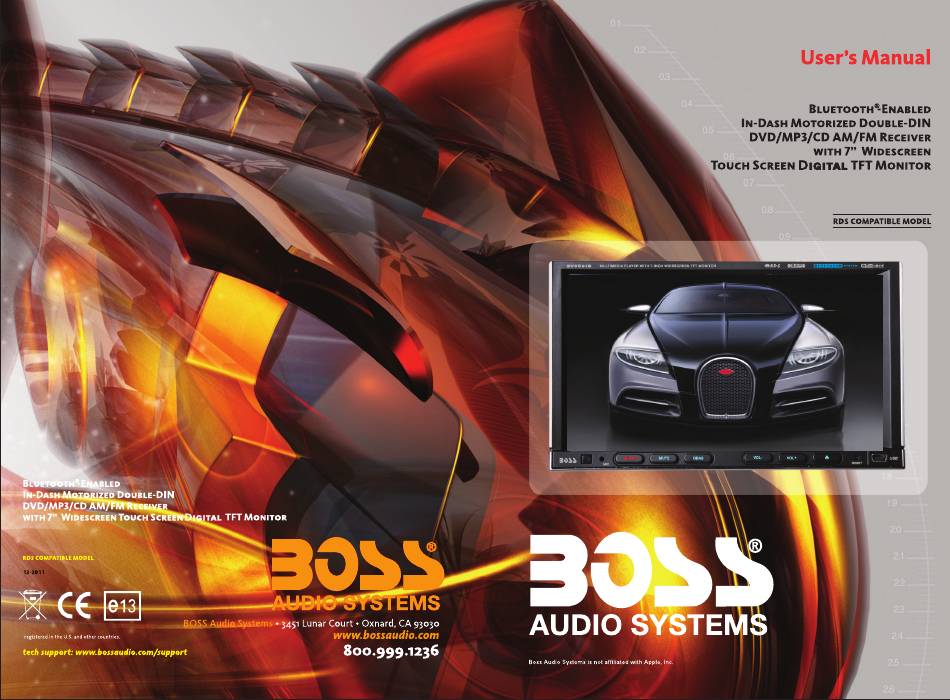

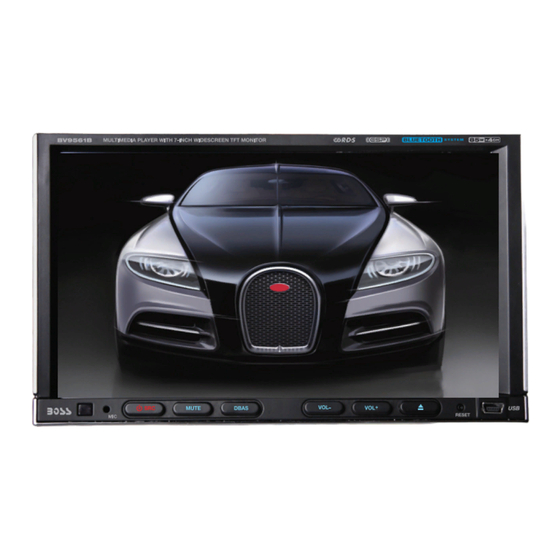

- Page 1 BV9561B WITH DUAL FRONT AND REAR USB AND SD MEMORY CARD PORTS AND SIDE PANEL AUX INPUT BV9561B WITH DUAL FRONT AND REAR USB AND SD MEMORY CARD PORTS AND SIDE PANEL AUX INPUT...
- Page 2 INSTRUCTIONS INSTRUCTIONS ACCESSORY CONTENTS Panel Introduction Basic Functions Remote Control Function Turn the Unit On/Off Enter into the Main Interface Play SD card/USB memory device Radio Function Operation Disc Function Operation Play/Eject Disc DVD/VCD Disc Playback CD Disc Playback MP3/WMA Format Disc Playback Touch Menu Function Bluetooth Function Operation External input operation...
- Page 3 INSTRUCTIONS INSTRUCTIONS Panel Introduction 3. DBAS Button This unit is with switchable frequency. You can switch from USA frequency to Europe frequency by following the Eject below steps: Step1. In main menu, press setup icon to enter the setup interface. Step2.
- Page 4 INSTRUCTIONS INSTRUCTIONS BASIC FUNCTION WIRING DIAGRAM This player is equipped with ISO standard connector, please follow below instruction: Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● ● White/White black - Left front speaker (+/-) ●...
- Page 5 INSTRUCTIONS INSTRUCTIONS...
- Page 6 INSTRUCTIONS INSTRUCTIONS REMOTE CONTROL FUNCTION Audio setting Click icon on setup interface to access audio setting interface, as shown in right(PIC 1) diagram: You can turn on or turn off the existing functions on audio setting interface. CLASSIC 5.SEEK+ ( )/ SEEK- ( )button In normal playback MP3, USB, SD songs,...
- Page 7 INSTRUCTIONS INSTRUCTIONS Access setup interface Click [Setup] icon on main interface to access setup interface. General setting Click icon on setup interface to access general setting interface, as shown in below PIC 1 diagram: In general setting interface, you can select to turn on or turn off the existing functions. You can set wallpaper and opening picture you like and check version number of DV/DC, click icon to browse up/down.
- Page 8 INSTRUCTIONS INSTRUCTIONS Turn on/off Host External input operation Connect the video input plug with external video input jack, and connect the audio input When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel plug with external audio input jack.
