LMK03000C
Precision Clock Conditioner with Integrated VCO

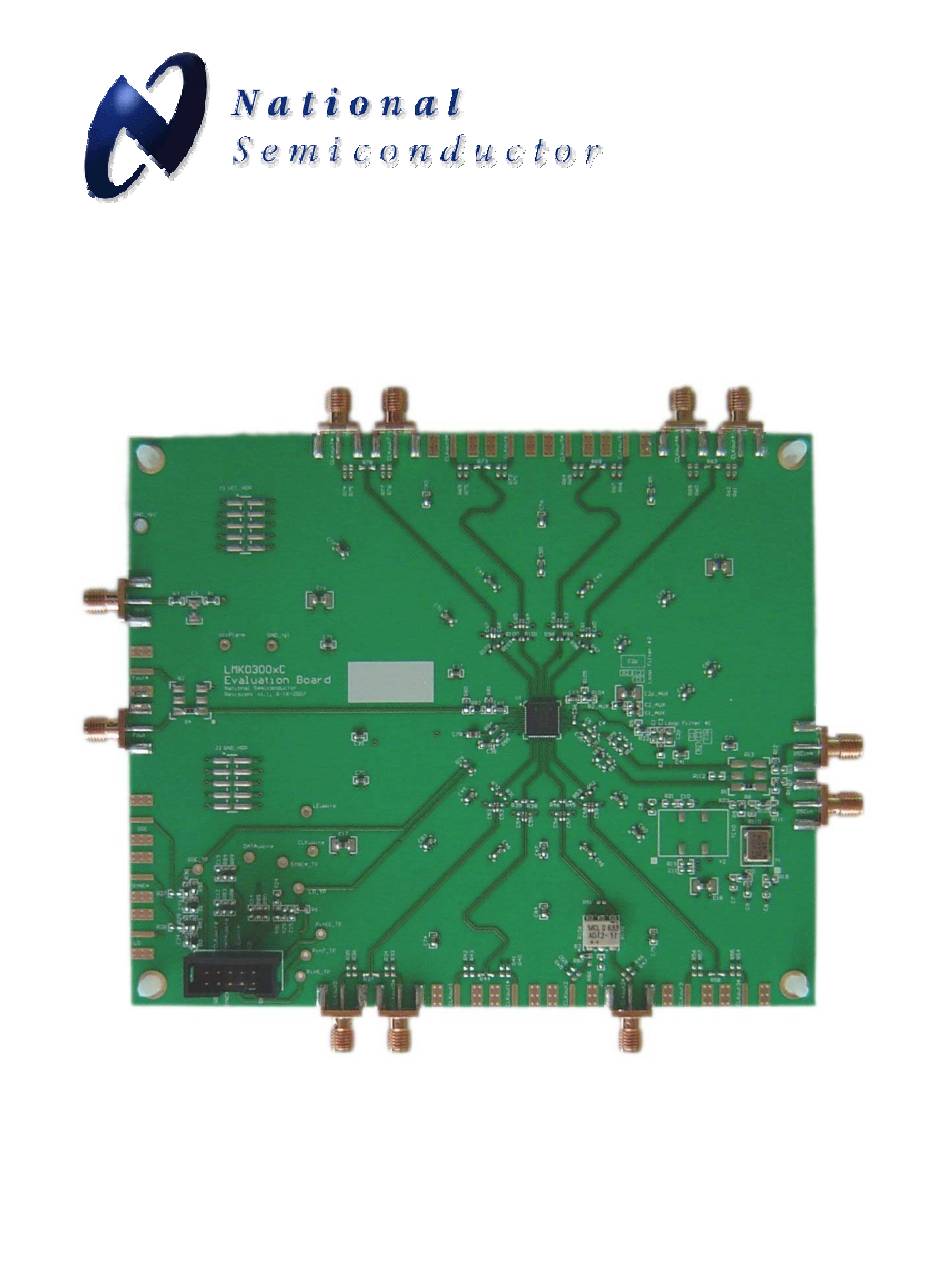

Evaluation Board Operating Instructions
4-16-2009
National Semiconductor Corporation
Interface
2900 Semiconductor Dr.
MS A2-600
Santa Clara, CA, 95052-8090

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMK03000C and is the answer not in the manual?

Questions and answers

Related Manuals for National Semiconductor LMK03000C

Summary of Contents for National Semiconductor LMK03000C

  • Page 1 LMK03000C Precision Clock Conditioner with Integrated VCO Evaluation Board Operating Instructions 4-16-2009 National Semiconductor Corporation Interface 2900 Semiconductor Dr. MS A2-600 Santa Clara, CA, 95052-8090...

  • Page 2: Table Of Contents

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S ABLE OF ONTENTS ..........................

  • Page 3: General Description

    Conditioner with Integrated VCO. The package consists of an evaluation board and CodeLoader software. The CodeLoader software will run on a Windows 2000 or Windows XP PC. The purpose of the CodeLoader software is to program the internal registers of the LMK03000C device through a MICROWIRE interface.

  • Page 4: Read First, Basic Operation

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Read first, Basic Operation Read the document, “Installing CodeLoader 4 &...
  • Page 5 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Read first, Basic Operation (Continued) 3.
  • Page 6 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Read first, Basic Operation (Continued) 4.
  • Page 7 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Read first, Basic Operation (Continued) 7.

  • Page 8: Board Information

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Board Information OSCin By default the board is configured to use the on-board crystal oscillator.

  • Page 9: Features Of The Board

    Toggle the SYNC* pin to synchronize the clock outputs when in divided mode. • For both loop filters, a helper silkscreen is offset from the loop filters to help identify the components according to National Semiconductor’s traditional reference designators associated with loop filters. Evaluation Board Revision v1.0 Errata •...

  • Page 10: Recommended Equipment

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Recommended Equipment Power Supply The Power Supply should be a low noise power supply.

  • Page 11: Phase Noise

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Phase Noise...
  • Page 12 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S...

  • Page 13: Delays

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Delays These delay measurements illustrate how skew errors due to different length traces may be tuned out.

  • Page 14: Codeloader Settings

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S CodeLoader Settings The Port Setup tab tells CodeLoader what signals are assigned to which pins.
  • Page 15 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S The Bits/Pins tab shows some of the internal registers which are not accessible from any of the other visual tabs like “PLL”...
  • Page 16 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S The Registers tab shows the raw bits which will be programmed when device is loaded by clicking Keyboard Controls Load Device or Ctrl+L.
  • Page 17 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S The PLL tab shows a conventional PLL diagram along with the VCO Divider.

  • Page 18: Appendix A: Vco Performance

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Appendix A: VCO Performance The internal VCO performance is measured by using a narrow bandwidth loop filter.
  • Page 19 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S VCO Phase Noise - Narrow Loop Bandwidth dThis plot shows the noise of the VCO at 1240 MHz using a 1 MHz Phase Detector Frequency.

  • Page 20: Appendix B: Impact Of Reference On Phase Noise

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Appendix B: Impact of Reference on Phase Noise Inside the loop bandwidth of a PLL the phase noise is set by the quality of the reference oscillator used.

  • Page 21: Appendix C: Schematics

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Appendix C: Schematics LMK0300x - Main Board LMK0300x - Outputs...
  • Page 22 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S R109 TCXO_RF 0 ohm...
  • Page 23 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S CLKout0 CLKout1 CLKout2...

  • Page 24: Appendix D: Bill Of Materials

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Appendix D: Bill of Materials Part Manufacturer...
  • Page 25 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S 15 k Vishay CRCW0603153JRT1...

  • Page 26: Appendix E: Build Diagram

    L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Appendix E: Build Diagram...
  • Page 27 L M K 0 3 0 0 0 C E V A L U A T I O N B O A R D O P E R A T I N G I N S T R U C T I O N S Bottom Build Diagram...
