The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. Nopart of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
Usage Notice Warning - To prevent the risk of fi re or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit.
Introduction About Glancetron GT-15 The Glancetron GT-15 is a 15" fl at panel screen with an active matrix, thin-fi lm transistor (TFT) liquid crystal display (LCD). Features include: • Direct Analog signal input • Active matrix TFT LCD technology • 1024x768 XGA resolution •...
Package Overview LCD Display VGA Signal Cable Power Cord Audio-in Cable USB Cable (A to B) RS-232 Cable (for combo model only) DC Power Supply Cable Cover Screw (sold separately) Quick Start Guide Touch Driver CD...

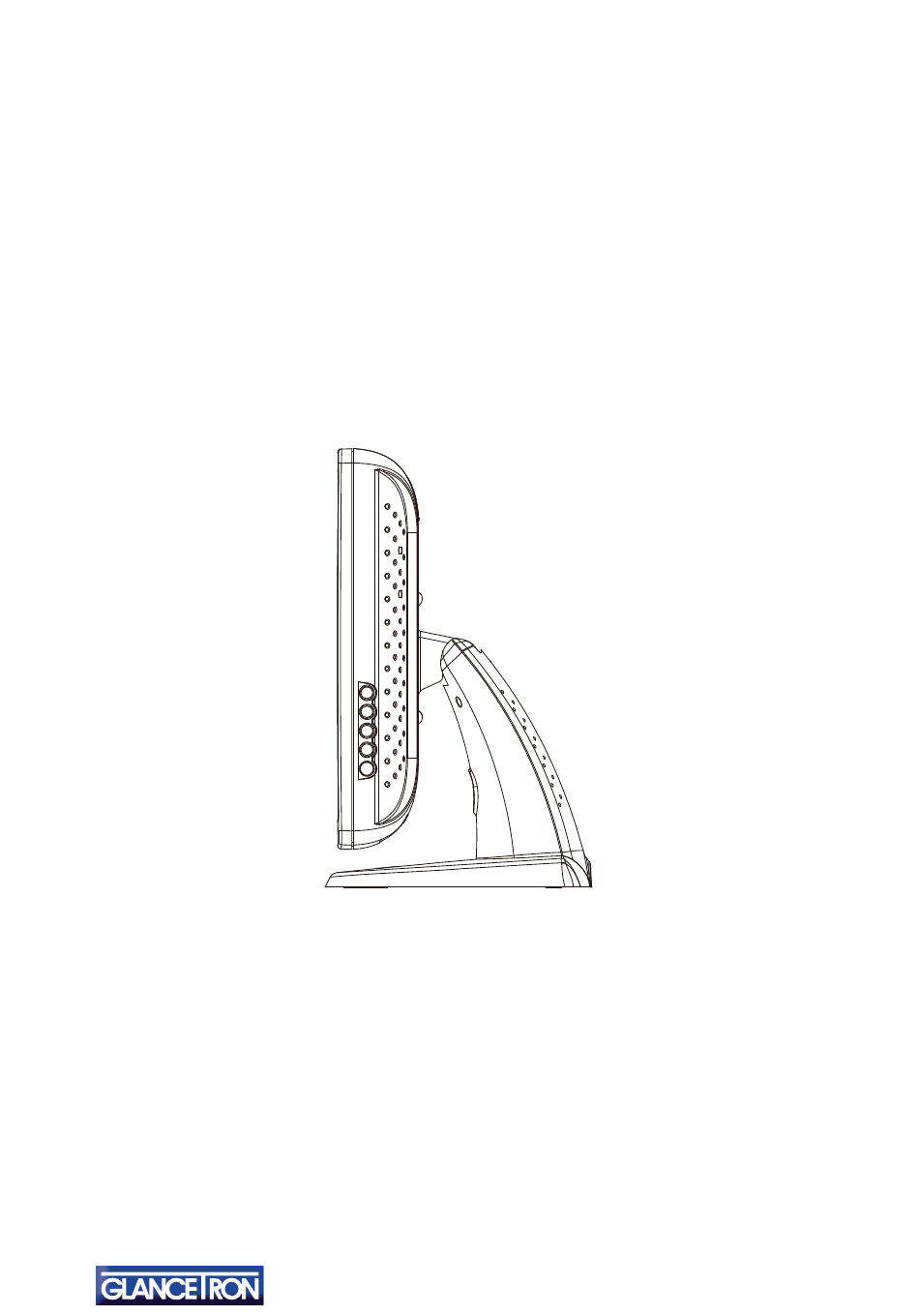

Installation Product Overview • Front View Glancetron GT-15Plus Glancetron GT-15Multi • Bottom View for Glancetron GT-15Plus (Without Stand) AUDIO RS-232 AC IN DC IN VGA IN • Bottom View for Glancetron GT-15Multi (Without Stand) AUDIO DC IN AC IN VGA IN...
Kensington Security Slot The monitor can be secured to your desk or any other fi xed object with Kensington lock security products. The Kensington lock is not included. Glancetron GT-15Plus Glancetron GT-15Multi...
To mount the monitor on a UL certifi ed swing arm or other mounting fi xture, follow the instructions included with the mounting fi xture to be used. 75mm Slots (x4) VESA Mounting Interface Glancetron GT-15Plus 75mm Slots (x4) VESA Mounting Interface Glancetron GT-15Multi...
Start Your Installation 1. Lay the LCD fl at on an even surface. 2. Remove the stand back cover by pulling in the direction of the arrow as seen in step 2 diagram. 3. Move the stand into position as seen in step 3 diagram. 4.
Page 11
5. Take the optional cable cover and screw from the accessory box. Position all cables under the cover lip as seen in the step 5 diagram. 6. Using a Philips Head screwdriver, insert the screw (CBM M3x6) into the cable cover and monitor as seen in the step 6 diagram.
Connecting the Display (Figure 10.1) To setup this display, please refer to the following fi gure and procedures. 1. Be sure all equipments are turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (10.1).
User Controls Side Panel Controls Icon key Name Menu Down Enter Power Menu off status Menu on status Menu appear Menu disappear / return to main item Brightness Main item select up / Adjust up Mute Main item select down / Adjust down Enter / Select sub-item function Power On / Off...
How to Use the OSD Menus Icon key Name Menu Down Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the six functions in the main menus. 2.
On-Screen Display Menus Main OSD Menu: ITEM CONTENT The monitor luminance level control. Contrast The monitor backlight level control. Brightness Fine-tune the image to full screen automatically. Auto Adjust Moving screen image horizontal position to left or right. Left/Right Moving screen image vertical position to up or down. Up/Down The screen image horizontal dot clock adjustment.
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"...
Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. There may be three sources for this problem. Please check the cable connections or contact your local dealer or our service center for more information.
Compatibility Modes Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA VGA 800X600 35.16 VESA VGA 800X600 37.88 VESA VGA 800X600 48.08 VESA VGA 800X600 46.88 Apple Mac...
Touch Screen Driver Installation The Glancetron GT-15Plus is available with both RS232 and USB connections. The touch ® driver is located on the enclosed CD-ROM for these operating systems: Windows 7, VISTA ® 64/32 bits, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux, Apple Mac OS.
Glancetron GT-15Plus Install Instructions: ® If you are using a PC running Windows 7, VISTA, XP, 2000, ME, 98, NT4.0, follow the instructions below: 1. Power on the PC. 2. Be sure the USB or the RS-232 Serial cable is connected from the PC to the LCD display.
Don’t plug in both the RS-232 and USB cables! Doing so may cause a driver confl ict, making your touch screen inoperable. Glancetron GT-15Multi Install Instructions: If you are using a PC running driver Linux kernel 2.6.x (32 bit & 64 bit), follow the instructions below: 1.
