Better Music Builder DFS-406 Owner's Manual

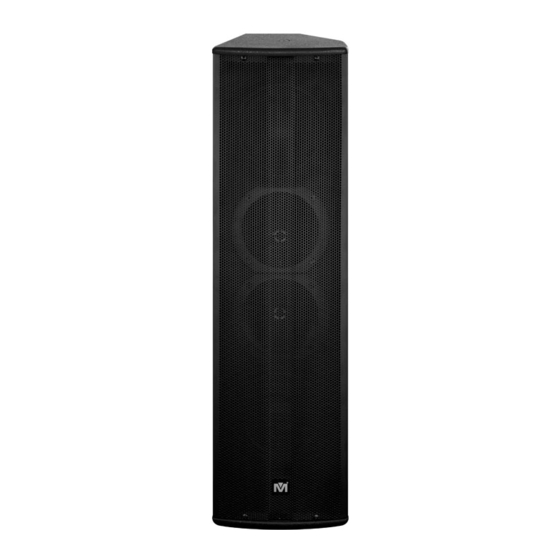

Vocal/column speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Better Music Builder .com
®
Better Music Builder
is a leader in the Audio and
Karaoke equipment industry. We are committed to
offering you high quality audio products. Unlike any others
brand, we deliver the best cost and value to you directly.
For the latest update information including operation
manuals, installation instructions, hook-up diagram and
other new technologies updates etc. please visit us at our
website w w w.B et terM usic B uil d er.com.
DFS-406
®
OWNER'S MANUAL
Dynamic Fusion Series is a high-end live sound system
designed by the engineering team of Better Music
Builder. This high-end series give you live music expe-
rience, high power output and superior sound quality.
Vocal/Column Speaker
SUPERIOR GRADE
DFS-406
DFS-506
DFS-506
Passionate about Music
It's what we do!
110421
6-inch WOOFER
6-inch WOOFER
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w. B e t t e rM usi c B ui l d e r.c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFS-406 and is the answer not in the manual?

Questions and answers

Summary of Contents for Better Music Builder DFS-406

  • Page 1 Better Music Builder .com ® Passionate about Music It’s what we do! OWNER'S MANUAL ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you high quality audio products. Unlike any others brand, we deliver the best cost and value to you directly.

  • Page 2: Table Of Contents

    • Dynamic Fusion Series DFS-506 (Medium Format)..................• Dynamic Fusion Series DFS-406 (Small Format)..................... CONTROLS AND FUNCTIONS ........................• Front & Rear Panel Features for Speaker Model DFS-406 Speaker ..............• Front & Rear Panel Features for Speaker Model DFS-506 ..............SYSTEM SETUP GUIDELINES 11~12 ........................

  • Page 3: Introduction

    INTRODUCTION SYSTEM FEATURES Intro Features In the past Better Music Builder has provided the DFS-306 VOCAL/COLUMN SPEAKER DFS-406 for center vocal monitor and DFS-206 for vocal monitor backup. Although the previous models where a great • 2-Way full range speaker success, our loyal customers are ready for more enhanced •...

  • Page 4: Safety Instructions

    Therefore, please visit our website at BetterMusicBuilder.com device inspected by qualified Better Music Builder service frequently to find out the most updated information, personnel.
  • Page 5 For speaker connections, use a high-quality speaker wire with polarity coding. The side of the wire with a ridge or other coding is usually considered positive polarity If desired, consult Better Music Builder technical support NOTE for speaker wire and connection options.

  • Page 6: System Applications

    Dynamic Fusion Technology™ (DFT) SYSTEM APPLICATIONS Applications The Better Music Builder engineers have been working hard on bringing home entertainment to the next level - the experience SPEAKON Y CONNECTORS that people have been dreaming about but never had before...

  • Page 7: Dynamic Fusion Series Dfs-406 & Dfs-506 (Large Format)

    DYNAMIC FUSION SERIES DFS-406 & DFS-506 (LARGE FORMAT) as karaoke bars, sports bars and night clubs. Because of Dynamic Fusion Series are high performance speakers their compact design, they can be easily mounted onto wall, developed with the latest technology and perform with ceiling and underneath the balcony.

  • Page 8: Dynamic Fusion Series Dfs-506 (Medium Format)

    SUBWOOFER OUT TO INPUT BASS POWERED SUBWOOFER DFS-112 SUB (12” woofer) 5-D Pro Audio ® 5-D Pro Audio is supported by Better Music Builder ® High-Definition Audio CENTER / MONITOR HIGH CUT Technology. 5-D Pro Audio CS-306 transmits three different...

  • Page 9: Dynamic Fusion Series Dfs-406 (Small Format)

    DYNAMIC FUSION SERIES DFS-406 (SMALL FORMAT) VIDEO DISPLAY TV SPEAKON SPEAKON HDMI VIDEO VOCAL/ VOCAL/ COLUMN COLUMN 725.00 725.00 ON/OFF ON/OFF SPEAKER SPEAKER DFS-406 DFS-406 DUAL CHANNEL RECEIVER 2-IN-1 BASE RECEIVER MODULE MIC 1 MIC 2 VM-92U G2 725.000 750.000...

  • Page 10: Controls And Functions

    CONTROLS AND FUNCTIONS Speaker FRONT & REAR PANEL: features are available for model DFS-406 Front View Rear View Bottom View CONNECT TO AMP. 2– 1– REFERENCE CONNECT DFS-406 Connector 6-INCH LOW FREQUENCY WOOFER HIGH FREQUENCY TWEETER & 1-INCH COMPRESSION DRIVER WITH PEI DIAPHRAGM...

  • Page 11: System Setup Guidelines

    SYSTEM SETUP GUIDELINES: for MODEL DFS-406 & DFS-506 Set Up 1. MOUNTING THE SPEAKER TO THE WALL How to Adjust the Wall Mount (SL-001) STEP : Place the wall mount panel on the wall and put Adjust the wall mount left/right at 180 degree and up/down three or more screws to fasten it.
  • Page 12 CNANNEL-A DISPLAY CNANNEL-B DISPLAY VOLUME ANTENA-B 4-CHANNEL KARAOKE MIXING AMPLIFIER DX-213 G2 MIC MASTER VOLUME MUSIC VOLUME Passionate about Music SUB VOLUME Better Music Builder G2 SERIES MIC VOLUME Generation 2 MIC 1 MIC 2/4 MIC 3/5 ECHO EFFECT ECHO VOLUME...

  • Page 13: Physical Dimensions

    PHYSICAL DIMENSIONS DFS-406 Dimensions Front View Left Side View Back View VOCAL / COLUMN SPEAKER DFS-406 DFS-506 MODEL 24.3 Lbs / 11 Kg 35.3 Lbs / 16 Kg NET WEIGHT (each) (each) 29.8 Lbs / 13.5 Kg 41.9 Lbs / 19 Kg...

  • Page 14: Troubleshooting

    TROUBLESHOOTING Troubleshooting 1. SYMPTOM: NO SOUND COMING OUT FROM THE 3. SYMPTOM: NOISE FROM THE SPEAKER. SPEAKERS Probable cause: Probable causes: The A/C power cord of the speaker is not grounded. 1. The A/C power of the speaker is turned off. Remedy: 2.

  • Page 15: Final Words To User

    FINAL WORDS TO USER Final Words 7. SYMPTOM: TOO MUCH MICROPHONE FEEDBACK The engineering team of Better Music Builder has many FROM THE SPEAKER. years of experience in audio equipment design. The team constantly develops new audio technologies, designs Probable cause: innovative audio and karaoke equipment to suit your specific Incorrect tremble and bass adjustments on the speaker.

  • Page 16: Warranty

    WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase for one year.

  • Page 17: Agency Regulatory Notices

    AGENCY REGULATORY NOTICES Notices Federal Communications Commission Notice your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation.

  • Page 18: Contact Information

    CONTACT INFORMATION Contact Us MAILING ADDRESS BE T TER M USI C BU I LD ER 2930 0 Kohoutek Wa y #150 Union Cit y, CA 94587 U.S.A. TELEPHONE NUMBERS USA Re gion USA Toll Fre e: 1-80 0 -318-2218 S ales &...
  • Page 20 Owner's Manual carefully before operating it. Please retain this manual for future reference. 360151107000 Printed on 100% Recycled Paper Code: 20151101 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2016 Better Music Builder. All rights reserved. Legal trademark.

This manual is also suitable for:

Dfs-506Dynamic fusion dfs-406Dynamic fusion dfs-506

Table of Contents
