Dacor MMDV30S Service Manual

Hide thumbs Also See for MMDV30S:
Table of Contents

Advertisement

Quick Links

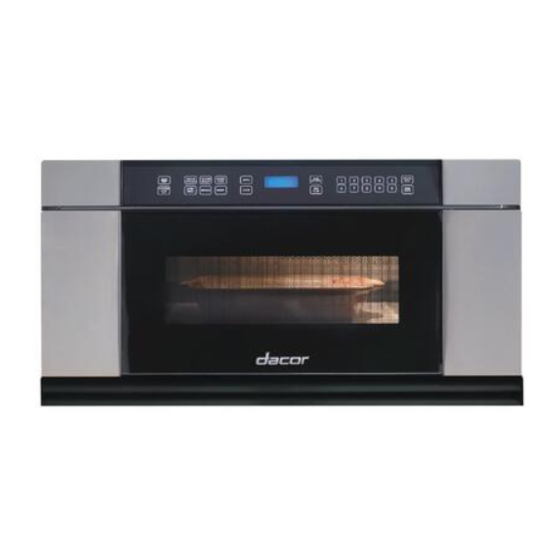

MMDV30S pictured
In the interest of user-safety the unit should be restored to its original condition and only parts identical to those specified should
be used.
WARNING TO SERVICE PERSONNEL:
This service manual is intended for use by persons having electrical and mechanical training and a level of
knowledge of these subjects generally considered acceptable in the appliance repair trade. Sharp Electronics
Corporation cannot be responsible, nor assume any liability, for injury or damage of any kind arising from the
use of this manual.
Microwave ovens contain circuitry capable of producing very high voltage and current. Contact with the
following parts may result in a severe, possibly fatal, electrical shock. (High Voltage Capacitor, High Voltage
Power Transformer, High Voltage Rectifier and Heat sink etc., and Magnetron, High Voltage Harness etc..)
BEFORE SERVICING ....................................................................................................... INSIDE FRONT COVER
WARNING TO SERVICE PERSONNEL ................................................................................................................. 3
MICROWAVE MEASUREMENT PROCEDURE ..................................................................................................... 4
FOREWORD AND WARNING ............................................................................................................................... 5
PRODUCT SPECIFICATIONS ............................................................................................................................... 6
SCHEMATICS ...................................................................................................................................................... 0
TEST PROCEDURES ..........................................................................................................................................
TOUCH CONTROL PANEL ASSEMBLY .............................................................................................................. 9
MICROWAVE DRAWER DISASSEMBLY ............................................................................................................. 27
WIRING DIAGRAMS ............................................................................................................................................ 33
PRINTED WIRING BOARDS ............................................................................................................................... 36
PARTS LIST ......................................................................................................................................................... 40
PACKING AND ACCESSORIES .......................................................................................................................... 45
SERVICE MANUAL
MODELS

TABLE OF CONTENTS

This document has been published to be used for after sales
service only. The contents are subject to change without
notice.

S26M257MMDV30
MICROWAVE DRAWER
MMDV30S
MMDH30S
MMDV30S
MMDH30S
