Summary of Contents for Pro Co Sound Momentum md16ae

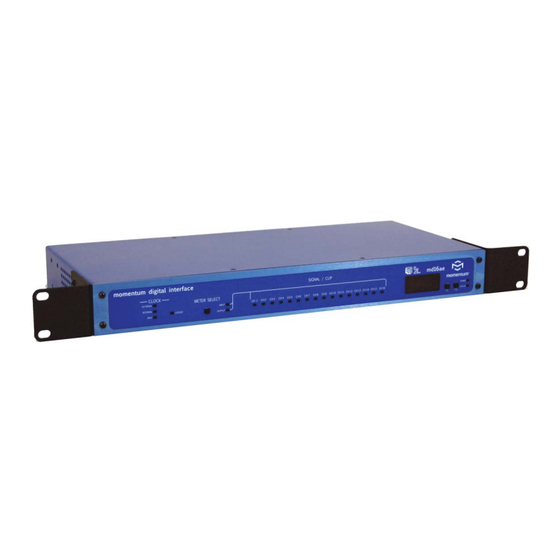

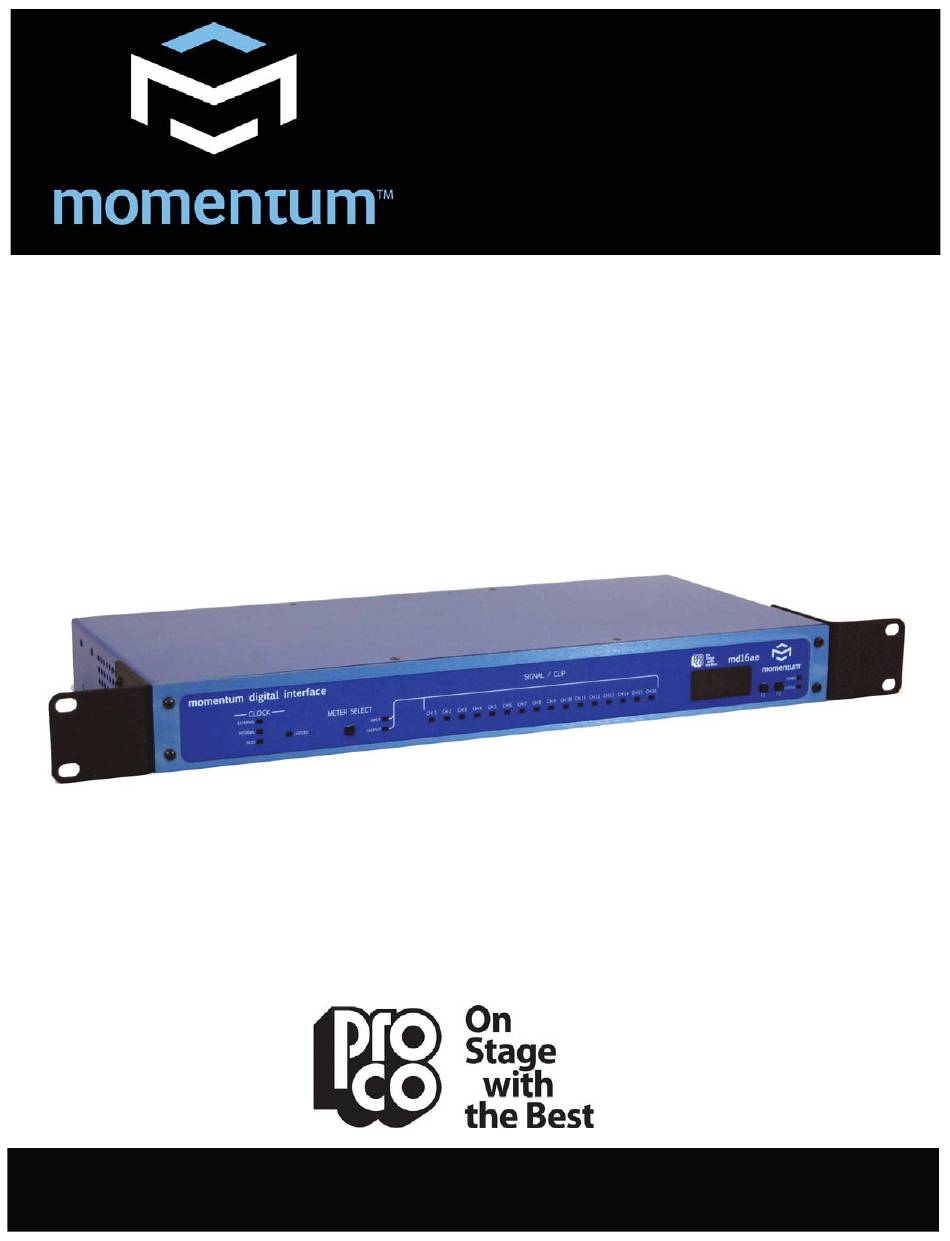

- Page 1 16x16 AES3/EBU Digital Interface Manual Pro Co Sound, Inc. 225 Parsons Street | Kalamazoo, MI 49007 1-888-253-7360 | www.procomomentum.com Momentum md16ae Manual...
-
Page 2: Warranty
Warranty Pro Co Sound guarantees Momentum for fi ve years, any excuse, even abuse. If you need to return the Momentum unit(s), ship them to Pro Co Sound in the original carton or a suitable shipping container via insured freight. Pro Co will return the Momentum unit(s) to you, free of charge including return postage. -
Page 3: Table Of Contents
Momentum Clock AES3 Clock Setup Network Clock Sync Using the Control Panel Setting Device Start Channel IP Address Sample Rate Clock Chapter 3: Control Panel Functions F1 and F2 Functions Description of Functions Chapter 4: md16ae Specifi cations Momentum md16ae Manual... -
Page 4: Safety Precautions
8. Do not defeat the safety purposes of the polarized or grounding type plugs. 9. Do not use the Momentum power supply for any purpose other than stated in this manual. 10. Only use Pro Co recommended accessories with any Momentum device. Momentum md16ae Manual... -
Page 5: Welcome
fl exible. The entire line of Momentum products was designed with the intention of offering optimal fl exibility for multitude of applications. Pro Co Sound, a Michigan based business, was founded in 1974. We build audio interface products, in-ear monitor controllers and facility distribution systems. We continue to live by our mission;... -
Page 6: Chapter 1: Overview
• 1.00 ms A/A latency 48k sampling (with DSP) • Onboard memory and programming • Fiber optic option • Control via mrc, mts, free pc software, • Firmware upgradable in fi eld Crestron or AMX Momentum md16ae Manual... -
Page 7: The Md16Ae
Toggles between input/output metering * Also toggles display between input/output start channel also change meter in the software. 6 Meter LED Indicates input/output selected 7 Signal/Clip LED Green = -40dB F.S. or above; Red= -3dB F.S. or above Momentum md16ae Manual... -
Page 8: Rear Panel
Digital In 7/8 + Digital In 7/8 - Ground Digital In 5/6 + Digital In 5/6 - Ground Digital In 3/4 + Digital In 3/4 - Ground Digital In 1/2 + Digital In 1/2 - Ground No Connect Momentum md16ae Manual... -
Page 9: Chapter 2: Connection And Startup
Chapter 2 Connection and Startup Power Use only with the power supplies provided by Pro Co Sound. Use only 802.3af PoE power supplies. The Momentum output unit requires 48VDC power to operate. There are two ways to power the unit: Use the Pro Co One Spot power supply. -
Page 10: Network Wiring
IEEE 802.3z Gigabit Ethernet compliant. The following are performance based on the cable type: 220 meter distance use 62.5/125um MMF 160MHz Km Cable 275 meter distance use 62.5/125um MMF 200MHz Km Cable 500 meter distance use 50/125um MMF 400MHz Km Cable 550 meter distance use 50/125um MMF 500MHz Km Cable Momentum md16ae Manual... -
Page 11: Network Confi Gurations
Direct Copper Connection 275 Meters using 62.5/125um MMF 200Mhz CAT5E or CAT6 550 Meters using 50/125um MMF 500Mhz No crossover required 100 Meters Cross Fiber Rx/Tx mo8 Output Optionally, Fiber and Copper may both be connected for redundancy. Momentum md16ae Manual... - Page 12 Ethernet port that is connected md16ae Input/Output to your control PC to multicast filtering. Chi=OFF Cho=033 Adr=010 Multicast MAC 01:15:AB:C6:00:00 mo8 Output Chi=OFF Cho=049 Adr=011 (See Network Design White Papers) mi8 Input Chn=065 Adr=007 Managed Control Device Ethernet Switch Momentum md16ae Manual...
- Page 13 Adr=021 mo8 Output Adr=022 Chn=049 Managed mo8 Output mo8 Outpu Chn=057 Adr=023 Chn=057 A Ethernet Switch Note: Up to 256 inputs channels, and unlimited outputs or DSPs can be added anywhere on the network using this method. Momentum md16ae Manual...
-
Page 14: Clock Confi Gurations
• Set clock to match the applicable Momentum sample rate. (48k or 96k) • When selected, the locked clock LED should be green. • An additional non-Momentum slave device can be connected to the word clock output. Momentum md16ae Manual... -
Page 15: Momentum Clock
• Set clock to match the applicable Momentum sample rate. (48k or 96k) • When selected, the locked clock LED should be green. • An additional non-Momentum slave device can be connected to the word clock output. Momentum md16ae Manual... -
Page 16: Aes3 Clock
With AES3 clock source selected, the md16ae will sync to AES3 channels 1 & 2. • Set clock to match the applicable Momentum sample rate. (48k or 96k) • When selected, the locked clock LED should be green. • An additional slave device can be connected to the word clock output. Momentum md16ae Manual... -
Page 17: Setup
Network connections have been found and the network is run- ning. RED indicates there are one of two problems; 1) A Ethernet link is not established or is not connected. 2) the audio sync packet (channel 1) is not found. Momentum md16ae Manual... -
Page 18: Setting Device
F1 soft button to scroll between the three clocking options; external (coax connection), Momentum (Internal Network clock) and AES3 (Input channel 1 of AES3). External clocks can only be at a sample rate of 48k or 96k to match the Momentum capability. Momentum md16ae Manual... -
Page 19: Chapter 3: Control Panel Functions
. Descriptions of each functions follow in a guide on pages 16 and 17. [Adr] [Adr] [Sr] [Cl] [Chi] [Cho] [rou] Address Sample Clock Channel Channel Route Display Address Rate Setup Input Output Clock not visible if not transmitting channel 1. Momentum md16ae Manual... -
Page 20: Description Of Functions
Tap F1 to activate “Chi” edit mode. Tap F1 to decrease value. Press F2 in increase value. Channels increase/decrease by eight. (Off disables all inputs) Press and hold F1 and F2 to execute and save the change. Momentum md16ae Manual... - Page 21 Toggle F2 to select “CL”. Tap F1 to activate “CL” edit mode. Tap F2 to scroll between the three clocking options; external, Momentum and AES3. Press and hold F1 and F2 simultaneously to execute and save the change. Momentum md16ae Manual...
-
Page 22: Chapter 4: Md16Ae Specifi Cations
Up to 256 total active system inputs at 48K or 96K sampling Onboard memory and programming 0.315 ms A/A latency 96K sampling (no DSP) 0.630 ms A/A latency 48K sampling (no DSP) 1.00 ms A/A latency 48K sampling (with DSP) Open UDP Ethernet communication for 3rd party control Momentum md16ae Manual...
